Eaton 180V Extended Battery Module (EBM) for Select Eaton 9PX G2 UPS Systems, 3U Rack/Tower

Eaton 180V Extended Battery Module (EBM) for Select Eaton 9PX G2 UPS Systems, 3U Rack/Tower

Name: Eaton 180V Extended Battery Module (EBM) for Select Eaton 9PX G2 UPS Systems, 3U Rack/Tower
Brand: Eaton
SKU: 9PXEBM180RTG2
Price: 2065.52 CAD
Availability: InStock

$2,065.52

Brand: Eaton

Part Number (MPN): 9PXEBM180RTG2

UPC / GTIN: 786689860073

Datasheet: PDF

Eaton 180V Extended Battery Module (EBM) for Select Eaton 9PX G2 UPS Systems, 3U Rack/Tower

Manufacturer Warehouse: 661 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Connects to select expandable Eaton 9PX G2 UPS systems for extended runtime

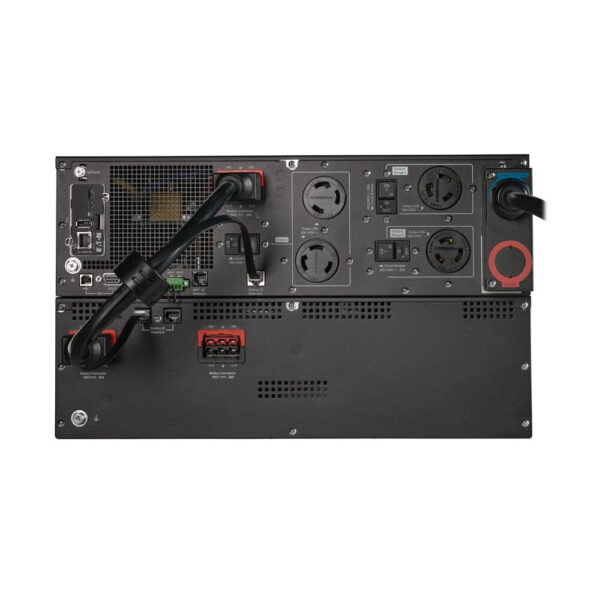

Daisy-chain connector supports additional battery packs for even longer runtime

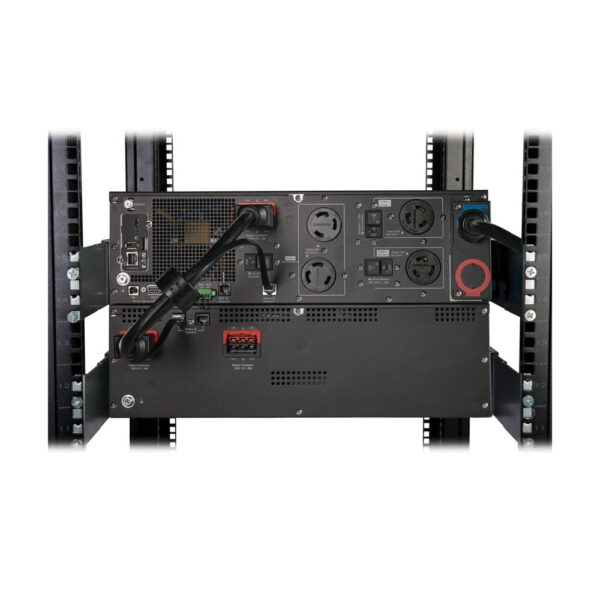

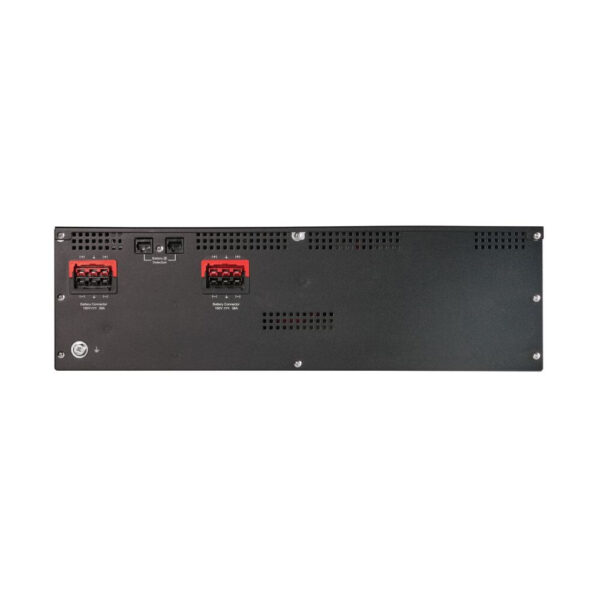

Includes heavy-gauge cabling with high-current 180V DC connectors
Supports 3U rack mounting or upright tower installation using included kit accessories

Features

Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime
The 9PXEBM180RTG2 offers extended battery runtime when used in conjunction with Eaton’s 9PX3K3UG2, 9PX3K3UNP1G2, 9PX3K3UNP2G2, 9PX3K3UNTF5G2, 9PX5KG2, 9PX5KP1G2, 9PX5KP2G2, 9PX5KTF5G2, 9PX6KG2, 9PX6KIECG2, 9PX6KP1G2, 9PX6KP2G2 and 9PX6KTF5G2 UPS systems. It can also be daisy-chained for a maximum of 12 auto-detected battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

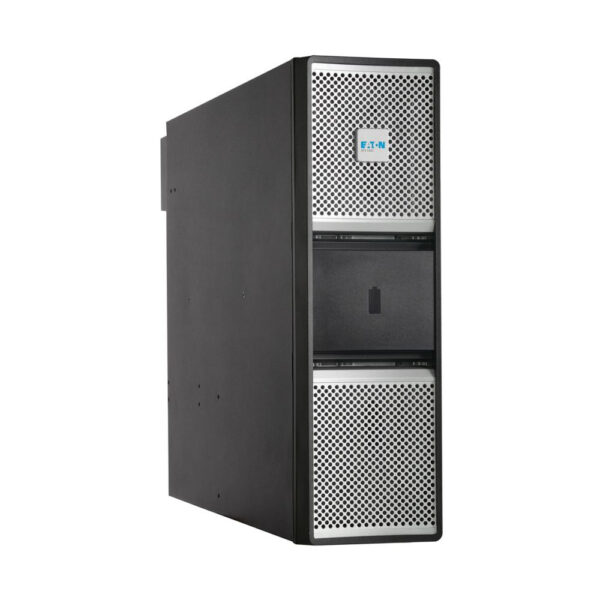

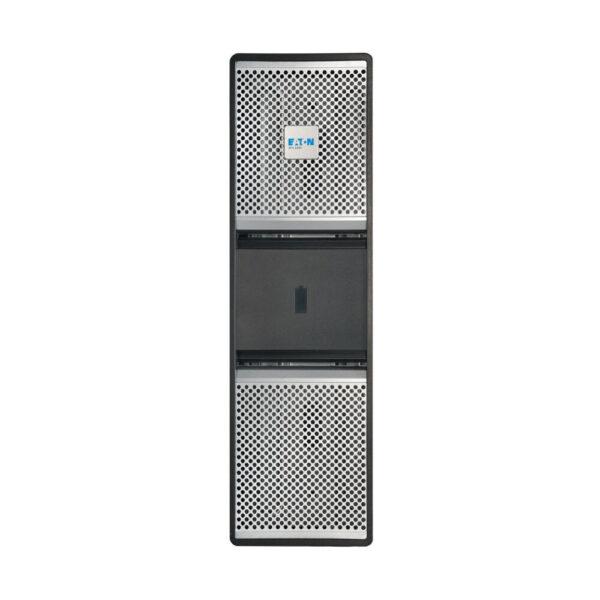

Supports 3U Rack or Tower Installation

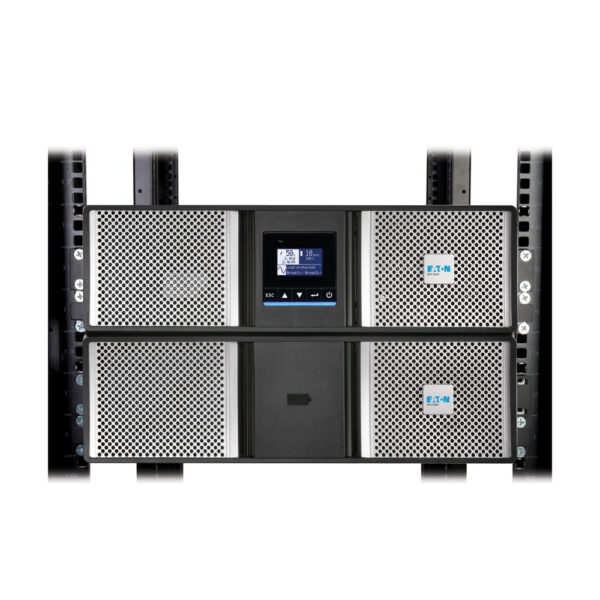

This backup battery pack’s multi-use form factor supports mounting in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands. For installation in 2-post racks, one RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.

System Requirements

Compatible with Eaton’s 9PX G2 3-6kVA VRLA UPS systems: 9PX3K3UG2, 9PX3K3UNP1G2, 9PX3K3UNP2G2, 9PX3K3UNTF5G2, 9PX5KG2, 9PX5KP1G2, 9PX5KP2G2, 9PX5KTF5G2, 9PX6KG2, 9PX6KIECG2, 9PX6KP1G2, 9PX6KP2G2 and 9PX6KTF5G2.

Compatible with select 9PX G1 3-6kVA VRLA UPS systems with added adapter cable: CBLADAPT180RT.

Package Includes

9PXEBM180RTG2 180V Extended Battery Module
External battery cable, 1 ft. (0.3 m)
Tower support stands
Rack-mounting hardware
Quick start guide

Weight	145 lbs
Dimensions	25 × 17.3 × 5.1 in
UPC Code	786689860073
Cord Length	0.98
Rack Depth	29
Brand	Eaton
Input Phase	Single-Phase
UPS Input Cord Length (ft.)	1
UPS Input Cord Length (m)	0.3
Battery Type	Valve Regulated Lead Acid (VRLA)
DC System Voltage (VDC)	180
Internal UPS Replacement Battery Cartridge	EBP-1805
Battery Replacement Description	Hot-swappable, user replaceable batteries. EBM requires 2 Replacement Battery Cartridges.
Battery Management	ABM+ technology
Primary Form Factor	Rackmount; Tower
Rack Height	3U
External Battery Pack Form Factor	Rack/Tower
Installation Form Factors Supported with Optional Accessories	2 post rackmount ( RK2PC )
Minimum Required Rack Depth (cm)	73.66
Unit Weight (kg)	68.04
Operating Temperature Range	32° to 104°F (0° to 40°C)
Relative Humidity	0-95% non-condensing
Product Certifications	cUL Listed; EN 62040-2; NOM (Mexico)
Product Compliance	FCC Part 15 Class A (USA); FCC (USA); CE (Europe); ENERGY STAR Qualified; RoHS
Product Warranty Period (U.S. & Canada)	3-year limited warranty
Extended Service Plans	ADVANCED DEPOT EXCHANGEService Part Number: 9SW5Y-18000BCExpedited parts coverage for 5 yearsParts, electronics and UPS batteries coverageNext business day shippingTechnical support5-YEAR ON-SITE PLAN (US ONLY)Service Part Number: WEBN75XX-7000BCOn-site parts and labor coverage for years 5Parts, electronics and UPS batteries coverage24x7 on-site labor coverage, next-day responseNext-day shippingTechnical support
