Eaton 9PX 192V Lithium-Ion Extended Battery Module (EBM) for 9PX6K-L UPS System, 2U Rack/Tower
$5,730.71
Eaton 9PX 192V Lithium-Ion Extended Battery Module (EBM) for 9PX6K-L UPS System, 2U Rack/Tower
Toronto Stock: 6 available
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Connects to expandable 9PX6K-L UPS system for extended runtime
- Daisy-chain connector supports additional battery packs for even longer runtime
- Includes heavy-gauge cabling with high-current 192V DC connectors
- Supports 2U rack mounting or upright tower installation
Features
Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime
The 9PXEBM192RT-L offers extended battery runtime when used in conjunction with Eaton’s 9PX6K-L UPS system. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Supports 2U Rack or Tower Installation
This backup battery pack’s multi-use form factor supports mounting in 2U of space in EIA-standard 19-inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands from a compatible UPS support optional upright configuration of the battery pack. For 2-post rack mounting, an optional RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.
System Requirements
Compatible only with Eaton’s 9PX6K-L UPS system

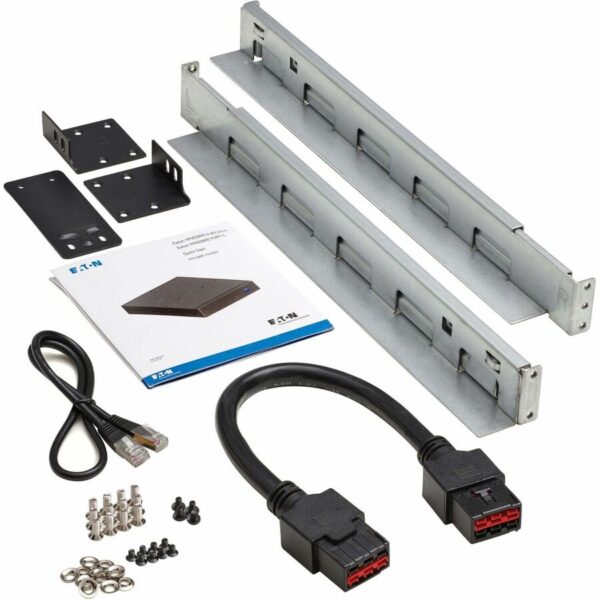

Package Includes
- 192V Lithium-Ion Extended Battery Module
- External battery cable, 1 ft. (0.3 m)
- Rack-mounting hardware
- Quick Start Guide
| Weight | 75.6 lbs |
|---|---|
| Dimensions | 25.39 × 17.24 × 3.36 in |
| UPC Code | 786689772574 |
| Rack Depth | 29 |
| Brand | |
| UPS Type | On-Line |
| Input Phase | Single-Phase |
| Battery Type | Lithium-ion (LiFePO4) |
| Expandable Runtime | Yes |
| Expandable Runtime Description | Add up to 4 extended battery modules (EBMs) |
| DC System Voltage (VDC) | 192 |
| Battery Replacement Description | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery Management | Integrated battery management system (BMS) for temperature regulation and life cycle monitoring |
| Primary Form Factor | Rackmount; Tower |
| Rack Height | 2U |
| External Battery Pack Form Factor | Rack/Tower |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( RK2PC ) |
| Minimum Required Rack Depth (cm) | 73.66 |
| Unit Weight (kg) | 35.83 |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0-96% non-condensing |
| Carton Notes | Pallet dims: 48in*40in*43in. (6/pallet) |
| Product Certifications | EN 62040-2; NOM (Mexico); cUL Listed; ICC-ES AC156 OSHPD Seismic Certified |
| Product Compliance | CE (Europe); FCC (USA); FCC Part 15 Class A (USA); RoHS |
| Product Warranty Period (U.S. & Canada) | 5-year limited warranty |
