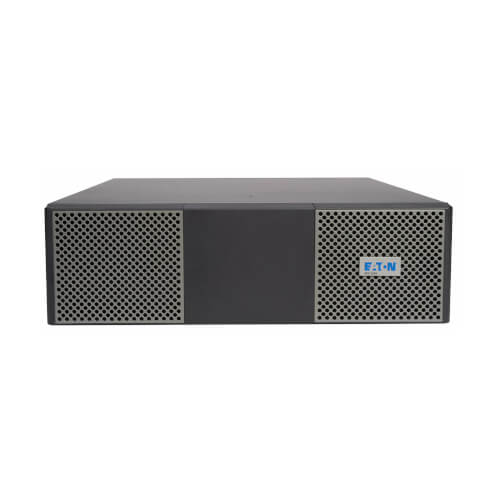

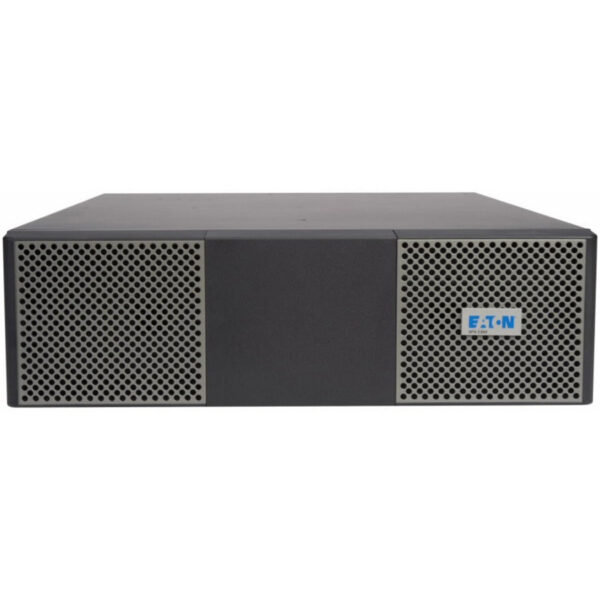

Eaton 9PX 360V Extended Battery Module (EBM) used with 9PX8KSP, 9PX10KSP UPS, 3U Rack/Tower

Name: Eaton 9PX 360V Extended Battery Module (EBM) used with 9PX8KSP, 9PX10KSP UPS, 3U Rack/Tower
Brand: Eaton
SKU: 9PXEBM360SP
Price: 2217.74 CAD
Availability: BackOrder

$2,217.74

Brand: Eaton

Part Number (MPN): 9PXEBM360SP

UPC / GTIN: 743172040374

Datasheet: PDF

Eaton 9PX Extended Battery Module (EBM) used with 9PX8KSP, 9PX10KSP UPS, 3U Rack/Tower

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Connects to expandable Eaton 8kVA to 10kVA 9PX UPS systems to add critical runtime

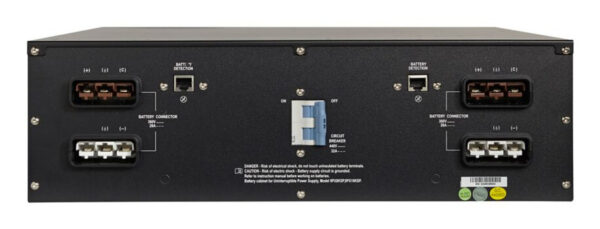

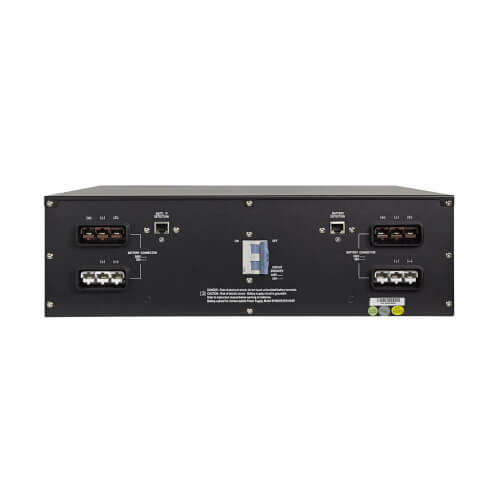

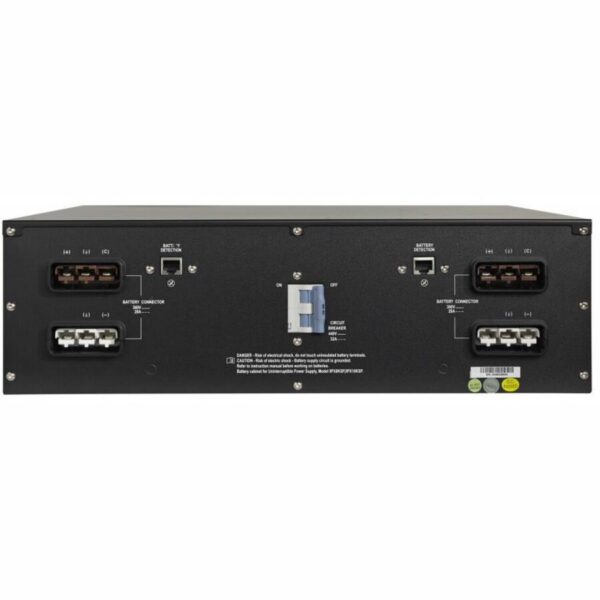

Includes heavy-gauge battery cabling with high-current 360V DC connectors
Daisy-chain connector supports additional battery packs for even longer runtime

Features

Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime
The valve regulated lead acid 9PXEBM360SP offers extended battery runtime when used in conjunction with Eaton’s 9PX8KSP and 9PX10KSP split-phase 9PX UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

Versatile Installation Options
You can mount the 9PXEBM360SP in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands.

System Requirements

Compatible only with Eaton’s 9PX8KSP and 9PX10KSP split-phase 9PX UPS systems

Package Includes

9PXEBM360SP 360V Extended Battery Module
External battery cable
Rack-mounting hardware
Tower support stands
Quick start guide

Weight	162.9 lbs
Dimensions	25.9 × 17.3 × 5.1 in
UPC Code	743172040374
Cord Length	0.98
Rack Depth	29
Brand	Eaton
Input Phase	Single-Phase
UPS Input Cord Length (ft.)	1
UPS Input Cord Length (m)	0.3
Battery Type	Valve Regulated Lead Acid (VRLA)
DC System Voltage (VDC)	360
Internal UPS Replacement Battery Cartridge	744-A1974
Battery Replacement Description	Hot-swappable, user replaceable batteries. EBM requires 2 Replacement Battery Cartridges.
Battery Management	ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Primary Form Factor	Rackmount; Tower
Rack Height	3U
External Battery Pack Form Factor	Rack/Tower
Installation Form Factors Supported with Included Accessories	4 post 19 inch rackmount
Minimum Required Rack Depth (cm)	73.66
Unit Weight (kg)	73.89
Operating Temperature Range	32° to 104°F (0° to 40°C)
Relative Humidity	0-95% non-condensing
Product Certifications	ANSI/IEEE C62.41; cUL Listed; NOM (Mexico)
Product Compliance	RoHS; CE (Europe); ENERGY STAR Qualified
Product Warranty Period (U.S. & Canada)	3-year limited warranty
Extended Service Plans	ADVANCED DEPOT EXCHANGEService Part Number: 9SW5Y-18000BCExpedited parts coverage for 5 yearsParts, electronics and UPS batteries coverageNext business day shippingTechnical support5-YEAR ON-SITE PLAN (US ONLY)Service Part Number: WEBN75XX-11000BCOn-site parts and labor coverage for years 5Parts, electronics and UPS batteries coverage24x7 on-site labor coverage, next-day responseNext-day shippingTechnical support
