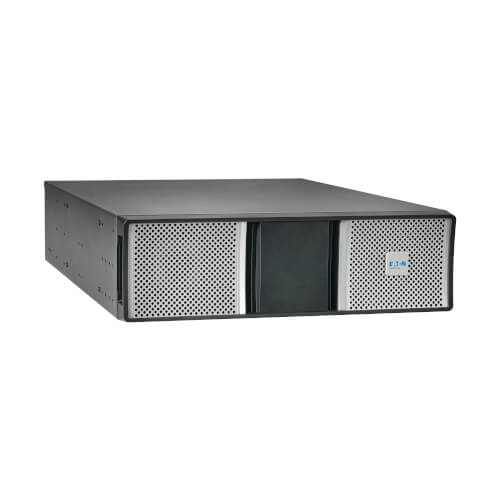

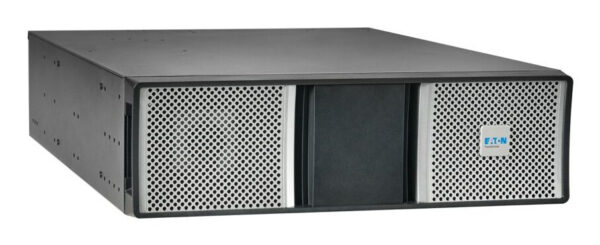

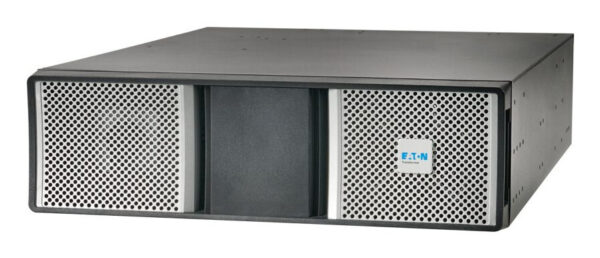

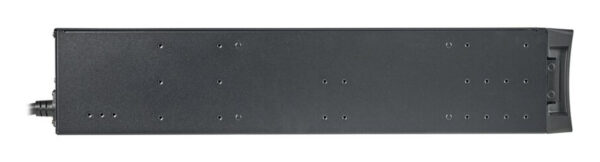

Eaton 9PX G2 PowerPass Distribution Module for 3-6kVA 9PX G2 UPS, L6-30P Input, 1x L6-30R, 1x L14-30R, 6x 5-20R, 3U Rack/Tower – 9PXPPDM1G2

Quick Specs

• Converts high-voltage AC output into low voltage for powering low-voltage equipment
• Provides extra protection against power spikes and surges that can damage equipment
• Resettable circuit breakers protect connected equipment from hazardous overloads
• Maintenance bypass allows UPS service or replacement without powering down load

Features

208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output

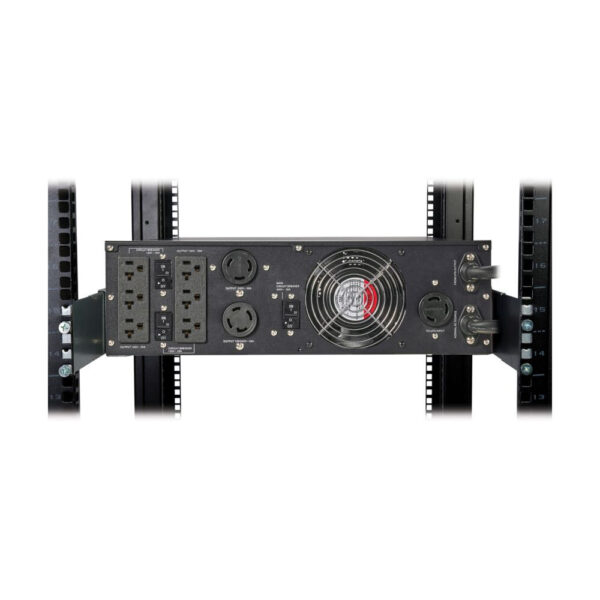

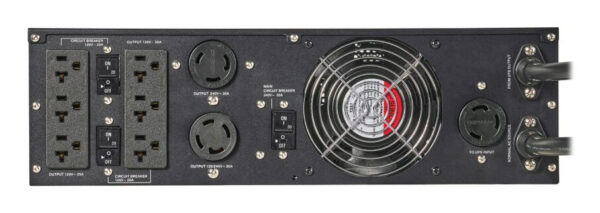

The 9PXPPDM1G2 converts your UPS system’s 208V high-voltage input to 120V low-voltage output. It features one L6-30R, one L14-30R and six NEMA 5-20R outlets for connecting equipment. Resettable 30A circuit breakers protect against overload conditions.

Compatible with Select Eaton UPS Systems

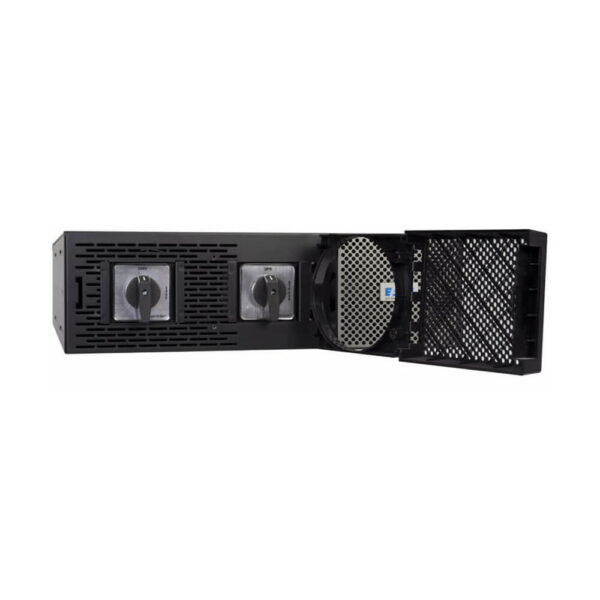

The 9PXPPDM1G2 works with Eaton’s 9PX5KG2, 9PX6KG2, 9PX6K-L, 9PX6KG2-L and 9PX3K3UG2 UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains energized, even while the UPS system is not present.

Versatile Installation Options

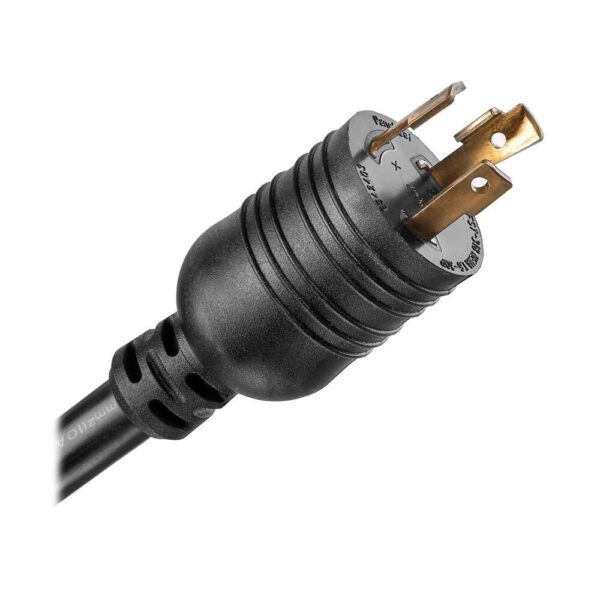

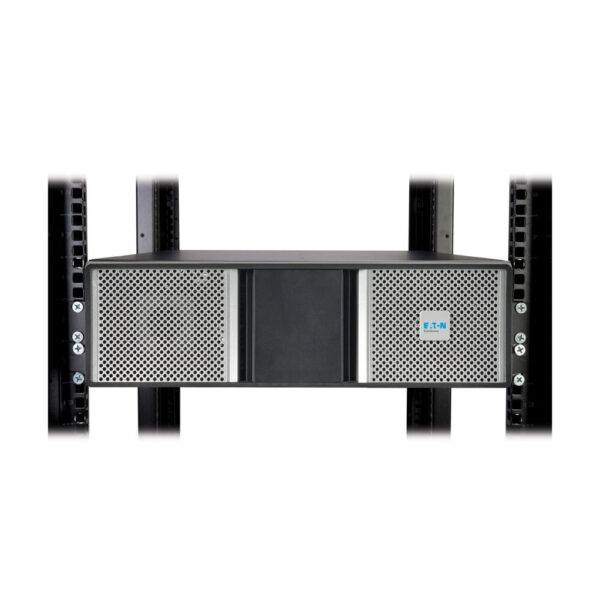

You can mount the 9PXPPDM1G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. The 6.5-foot power cord with L6-30P plug connects to a compatible AC outlet.

System Requirements

Compatible with Eaton’s 9PX5KG2, 9PX6KG2, 9PX6K-L, 9PX6KG2-L and 9PX3K3UG2 UPS systems

Package Includes

• 9PXPPDM1G2 PowerPass Distribution Module
• Joining bracket and hardware for tower configuration
• Rack-mounting hardware
• Owner’s manuals
