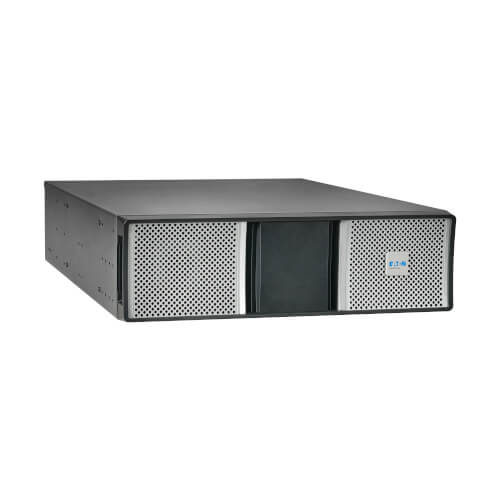

Eaton 9PX G2 10kVA 120V Step-Down Transformer – 8 NEMA 5-20R and 2 L14-30R Outlets, 50/60 Hz, Hardwire Input, 3U Rack/Tower

Quick Specs

• Converts 208V AC input into 120V output for powering low-voltage equipment

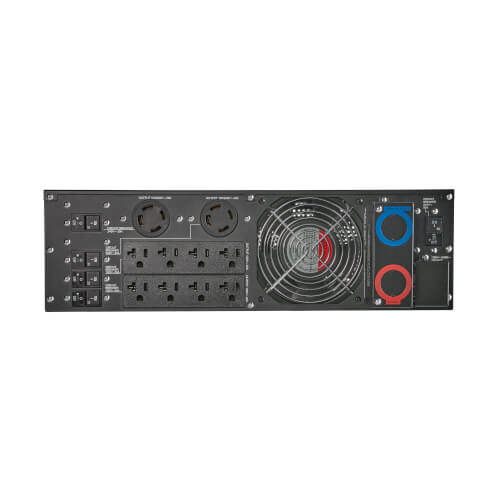

• 8 NEMA 5-20R and 2 L14-30R 120V outlets for connecting components
• Resettable circuit breakers protect mission-critical equipment from hazardous overloads
• Requires hardwired connection to Eaton 9PX8KG2 or 9PX11KG2 9PX G2 UPS systems

Features

208V to 120V Transformer Converts High-Voltage Input to Low-Voltage Output
This 10kVA Step-Down Transformer converts your UPS system’s 208V high-voltage input to 120V low-voltage output. It features eight NEMA 5-20R and two L14-30R outlets for connecting equipment. Resettable circuit breakers protect your 120V equipment against overload conditions. The 9PXTFMR11G2 works with Eaton’s 9PX8KG2, 9PX8KG2-L, 9PX11KG2, and 9PX11KG2-L 9PX G2 UPS systems.

Versatile Installation Options

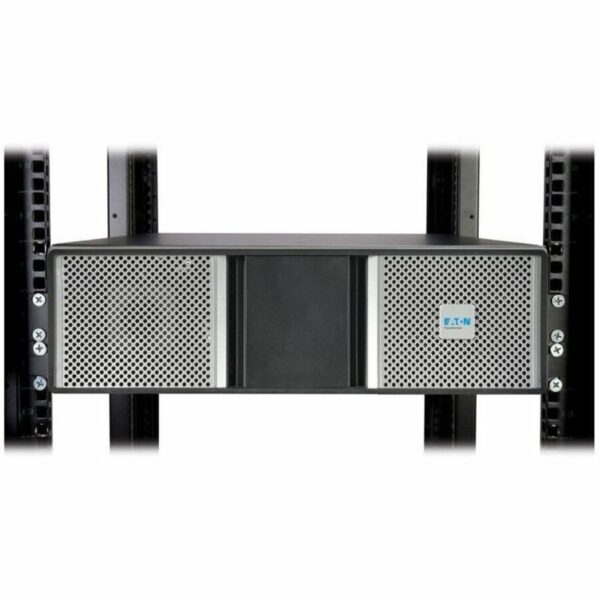

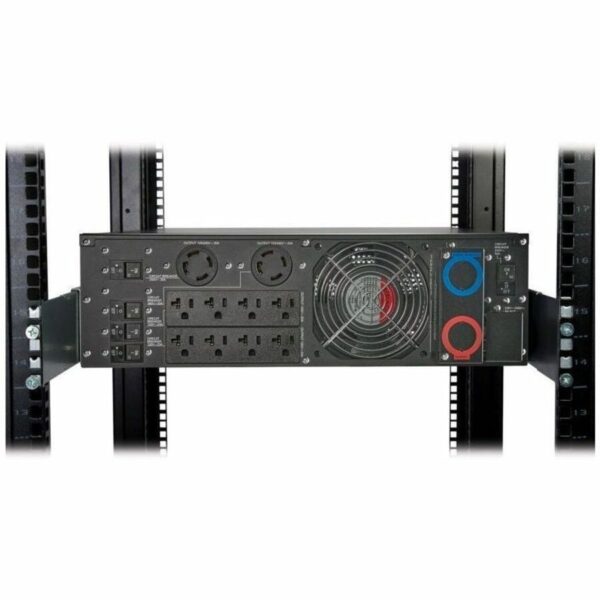

You can mount the 9PXTFMR11G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or adapt it for tower installation using the included joining bracket and hardware. Cable glands are included for hardwire input.

System Requirements

Compatible with Eaton’s 9PX8KG2, 9PX8KG2-L, 9PX11KG2, and 9PX11KG2-L 9PX G2 UPS systems

Package Includes

• 9PXTFMR11G2 10kVA 120V Step-Down Transformer
• Hardwire cable
• (2) Cable glands
• Joining bracket and hardware for tower configuration
• Rack-mounting hardware
• Owner’s manuals
