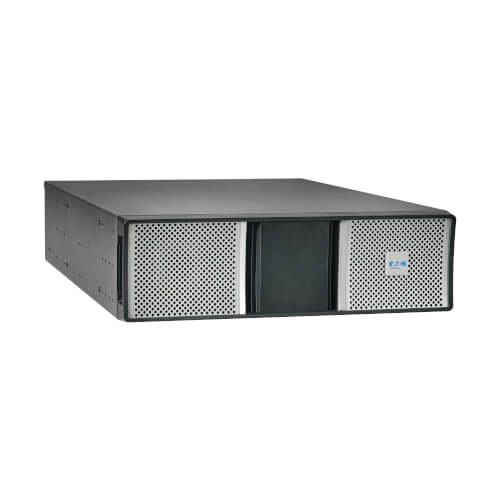

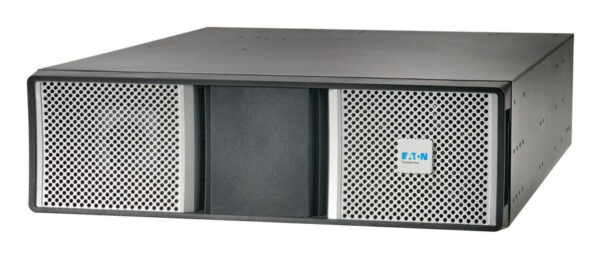

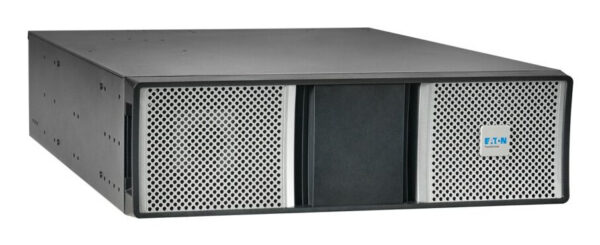

Eaton 9PX G2 5kVA 120V Step-Down Transformer – 18 NEMA 5-20R Outlets, 60 Hz, L6-30P Input, 3 ft. Cord, 3U Rack/Tower

Quick Specs

• Converts 208V AC input into 120V output for powering low-voltage equipment
• 18 NEMA 5-20R 120V outlets for connecting components with 5-15P or 5-20P plugs
• Resettable circuit breakers protect mission-critical equipment from hazardous overloads

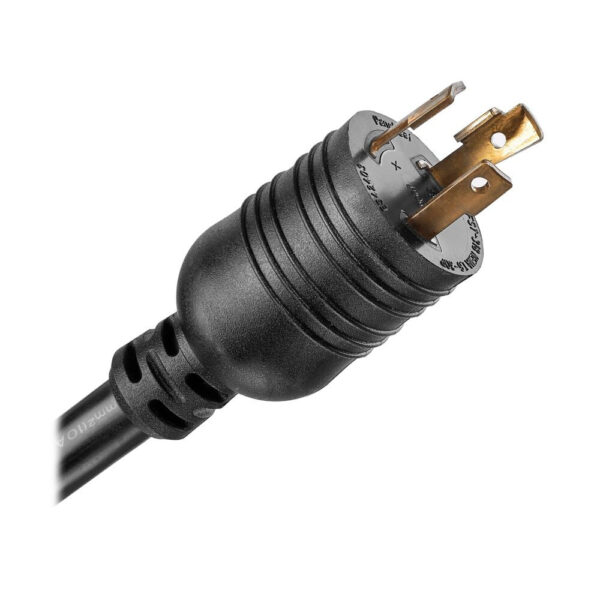

• 3 ft. power cord with L6-30P input plug connects to compatible UPS system

Features

208V to 120V Transformer Converts High-Voltage Input to Low-Voltage Output

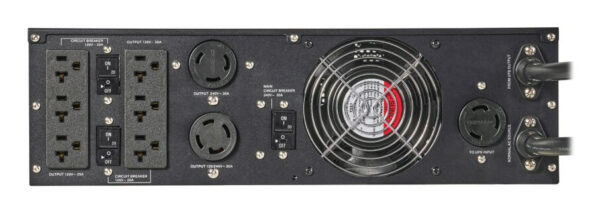

This 5kVA Step-Down Transformer converts your UPS system’s 208V high-voltage input to 120V low-voltage output. It features 18 NEMA 5-20R outlets (two sets of nine outlets) for connecting equipment with common NEMA 5-15P and NEMA 5-20P plugs. Resettable 20A circuit breakers protect your 120V equipment against overload conditions. The 9PXTFMR5G2 works with Eaton’s 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L, 9PX6KG2-L, 9PX8KG2, 9PX8KG2-L, 9PX11KG2 and 9PX11KG2-L 9PX UPS systems.

Versatile Installation Options

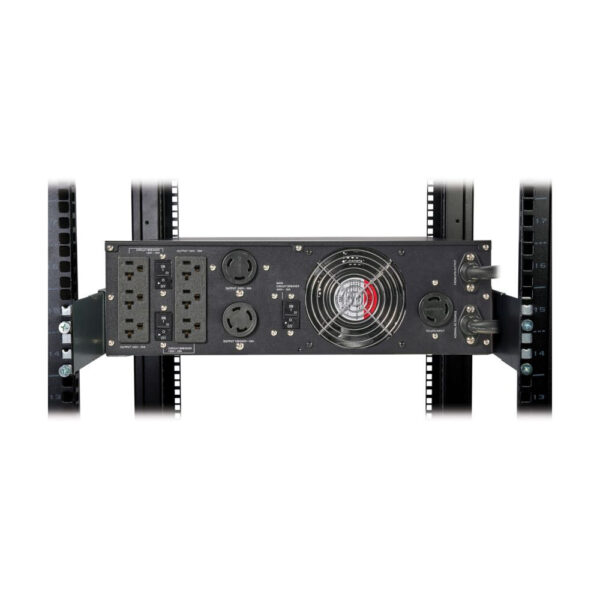

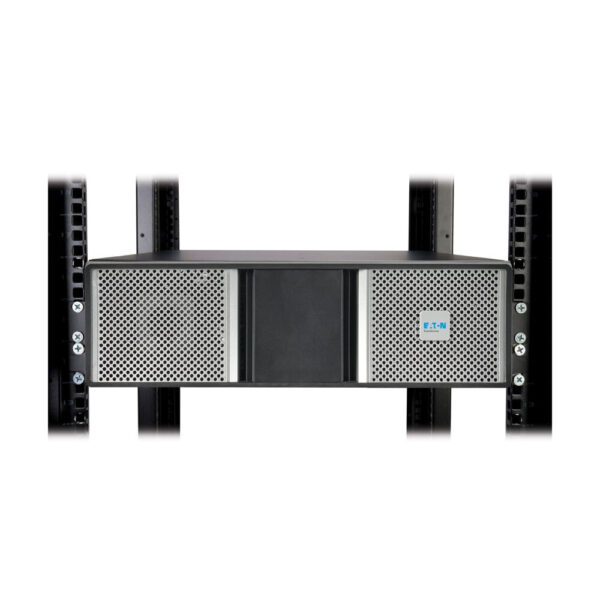

You can mount the 9PXTFMR5G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. The three-foot power cord with L6-30P plug connects to the L6-30R outlet on the UPS.

System Requirements

Compatible with Eaton’s 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L, 9PX6KG2-L, 9PX8KG2, 9PX8KG2-L, 9PX11KG2 and 9PX11KG2-L 9PX UPS systems

Package Includes

• 9PXTFMR5G2 5kVA 120V Step-Down Transformer
• Joining bracket and hardware for tower configuration
• Rack-mounting hardware
• Owner’s manuals
