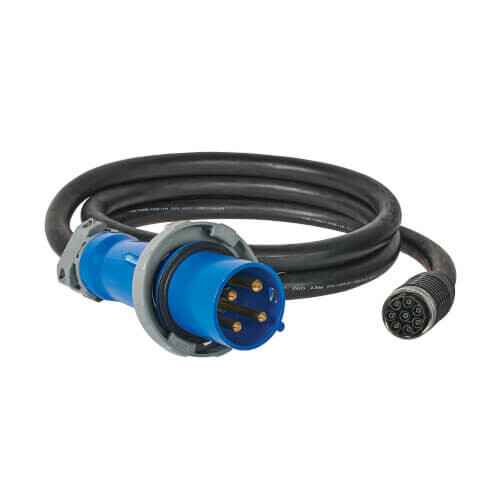

Eaton Power Cord for Select Eaton Universal PDUs – 17300VA 208V Delta 3-Phase, 460P9W Input, 60A, 10 ft. (3.05 m)
$949.04
Eaton Power Cord for Select Eaton Universal PDUs – 17300VA 208V Delta 3-Phase, 460P9W Input, 60A, 10 ft. (3.05 m)
Status: On Backorder (Contact us for lead times)
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Delivers 17.3kVA 3-phase power to Eaton’s universal input PDU (UPDU)
- 10 ft. length allows flexibility in placing PDU in relationship to AC outlet
Features
Detachable Power Cord Supports Universal Input PDU
This detachable power cord is designed for North American 208V Delta 3-phase use. Its 8-pin universal connector mates with an Eaton universal input PDU (UPDU) to meet your diverse rack-power needs. The 10-foot (3.1-meter) length with 460P9W input plug allows you convenient flexibility in placing the UPDU with respect to the AC outlet.
System Requirements
Pairs with Eaton’s universal input PDU (UPDU)
Package Includes
CBL356-10 Power Cord, 17300VA 3-Phase, 10 ft. (3.05 m)
| Weight | 11 lbs |
|---|---|
| Dimensions | 10.75 × 11.25 × 4 in |
| UPC Code | 786689783860 |
| Cord Length | 10.01 |
| Max Input Amps | 60 |
| Brand | |
| Device Compatibility | PDU |
| Country/Region | North America |
| Input Phase | 3-Phase |
| Voltage Compatibility (VAC) | 208V 3-Phase Delta |
| Side A - Connector 1 | 8-Pin Souriau UTG |
| Side B - Connector 1 | 460P9W |
| Plug Color | Blue |
| Cable Jacket Color | Black |
| Connector Color | Black |
| Power Cord Jacket Type | W |
| Cable Outer Diameter (OD) | 28mm |
| Number of Conductors | 4 |
| Wire Gauge (OD - mm²) | 6 |
| Cable Length (m) | 3.05 |
| Shipping Dimensions (hwd / cm) | 12.70 x 43.18 x 43.18 |
| Shipping Weight (kg) | 5.44 |
| Operating Temperature Range | 32° to 140°F (0° to 60°C) |
| Storage Temperature Range | 32° to 194°F (0° to 90°C) |
| Operating Temperature | 32° to 140°F (0° to 60°C) |
| Operating Humidity Range | 10% TO 90% RH, NON-CONDENSING |
| Storage Humidity Range | 10% TO 90% RH, NON-CONDENSING |
| High Voltage | Yes |
| Product Certifications | UL Listed; cTUVus; cUL Listed |
| Product Compliance | CE (Europe); FCC (USA); RoHS; UKCA; REACH |
| Product Warranty Period (Worldwide) | 3-year limited warranty |
