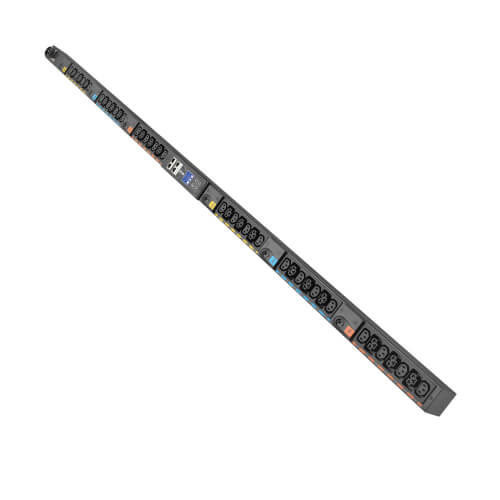

12 Detachable Power Cords with 12 Different Plugs Support Universal Input This G3 universal-input PDU (UPDU) is designed to meet your most diverse rack-power needs. Fully managed with 42 outlets and sophisticated management capabilities, the EVMAGU23X-3 accommodates power needs ranging from 5kVA single-phase to 23kVA 3-phase. Just pair the UPDU with one of 12 detachable 10-foot power cords with 12 different plug options (all sold separately). In delivering a broad range, this UPDU alleviates the cost and complexity of mixing and matching different PDUs for different installations. It also ensures you won’t outgrow your PDU as your power needs evolve.
42 Outlets Give You Plenty of Power Options The EVMAGU23X-3 features 24 C13 outlets, which accept C14 connectors, and 18 high-retention, P-lock cable-compatible C39 combo outlets, which accept both C14 and C20 plugs. This flexibility reduces the number of PDUs your rack requires, saving you money, effort, time and valuable rack space.
Outlet-Level Control Boosts Performance and Efficiency All 42 outlets provide metering, monitoring and switching for granular power data and precision control of power delivery. The outlets are evenly separated along the 72-inch chassis into six color-coded load banks, each with its own 20A circuit breaker. You can get more uptime by disabling an outlet or load bank before its connected equipment overloads the system, rather than disabling the entire PDU and shutting down all equipment. LEDs show you at a glance which outlets are turned on.
Remote Management Saves Time and Money Manage the EVMAGU23X-3 via web browser or SNMP integration into DCIM. You can also use monitoring software, including Eaton’s Intelligent Power Manager (IPM), Visual Power Manager (VPM) or Visual Capacity Optimization Manager (VCOM). Receiving automated alerts about power issues and remotely rebooting the PDU or individual outlets saves you costly on-site visits, improves response time and frees up resources for other critical tasks.
ePDU Network Management and Control Module for Remote Access The eNMC includes an upgradable network card, push-button controls, an LCD with outlet-level readings, serial/Ethernet ports for environmental monitoring and a USB port for upgrading the firmware. It’s hot-swappable, so you can remove the module without interrupting power.
Convenient Box-to-Rack Installation This G3 UPDU features toolless mounting buttons that allow front- or side-facing rack installation, depending on your rack’s layout and your power needs. Choose from a collection of 12 power cables and 12 plug options (all power cords sold separately). Low-profile 20A circuit breakers are flush with the lightweight aluminum chassis, and the narrow two-inch width allows multiple mounting options. You can daisy-chain up to eight G3 UPDUs via the eNMC and share one network connection and IP address.
Meets Global Approval This G3 UPDU meets industry standards all over the world, so you can source a single PDU chassis globally and pair it with cables rated for the voltage requirements of each region.
332P6W; 360P6W; 460P9W; 516P6W; 532P6W; 560P6W; 560P9W; HUBBELL CS8365C 50A; NEMA L21-30P; NEMA L5-30P; NEMA L6-30P
Input Cord Details
Universal input connector. Available 12 detachable power cords with 12 different plugs; all cords are 10 ft. long with locking connectors. Cordsets are sold and shipped separately.
Input Cord Length (m)
3.05
Output Capacity (kVA)
23
Output Capacity (kW)
23
Output Capacity Details
Power rating is based on the input cordset used. Cord options available for 5kVA-23kVA, 1-phase or 3-phase
Frequency Compatibility
50 / 60 Hz
Output Circuit Breakers
(6) low-profile circuit breakers. 16A (Europe)/20A (US). One circuit breaker per outlet bank.
Nominal Output Voltage(s) Supported
208V; 240/415V 3-PH Wye
Output Receptacles
(24) C13; (18) C39
Output Amp Capacity
10A per C13, 16A per C39, 16A max per outlet bank
Ports
3
Serial Interface
(1) Serial RJ45
Daisy-chainable / Cascadable
Yes
Daisy-chainable / Cascadable Details
Connect up to 8 PDUs from one network connection
Front Panel LCD Display
LCD pixel display with outlet-level readings and automatic shut-off to save energy. Set IP address, rotate display, control outlets, view alarms and read current, voltage, power and energy.
LED Indicators
Green = outlet is on Red = PDU has power but outlet is off
Current Measurement Accuracy (Amps)
+/-1%
Voltage Measurement Accuracy (Volts)
+/-1%
Power Measurement Accuracy (Watts)
+/-1%
Material of Construction
Aluminum
Rack Height
0U
Form Factors Supported
0U (vertical)
Housing Color
Black
Included Mounting Accessories
Mounting buttons
Included Mounting Accessory Description
Factory-installed shoulder-style aluminum mounting buttons. 61.25” center-to-center Alternative flush-style mounting buttons also included with PDU
PDU Form Factor
Vertical (0U)
Receptacle Color
Black
Shipping Dimensions (hwd / cm)
197.10 x 19.56 x 23.62
Shipping Weight (kg)
7.85
Unit Dimensions (hwd / cm)
183 x 5.3 x 6.6
Unit Dimensions (hwd / mm)
1829 x 52 x 65
Unit Weight (kg)
7.85
Rack Units
42
Operating Temperature Range
0° to 60°C (32° to 140°F)
Storage Temperature Range
-13° to 149°F (-25° to 65°C)
Relative Humidity
5% to 95% non-condensing
Operating Elevation
0-10000 ft. (0-3000 m)
Network Monitoring Port Description
Hot-swappable, upgradeable eNMC module
Network Monitoring Port
Serial/Ethernet ports for environmental monitoring and daisy-chain connections
