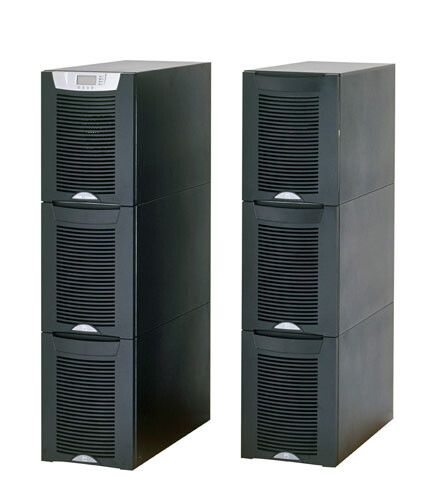

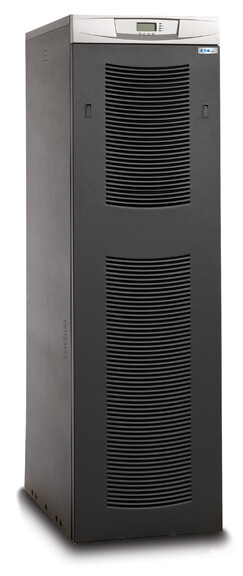

Name: Eaton KA1013400000010 - PW9355 with 32-Battery and input iso transformer (3-high)
Brand: Eaton
SKU: KA1013400000010
Price: 31406.68 CAD
Availability: BackOrder

Eaton KA1013400000010 – PW9355 with 32-Battery and input iso transformer (3-high)

$31,406.68

Brand: Eaton

Part Number (MPN): KA1013400000010

UPC / GTIN: 743172018571

PW9355-10kVA Input 480 Output208/120V

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

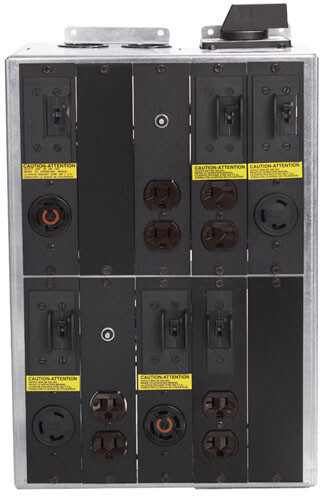

The Eaton 9355 UPS provides premium double-conversion backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9355 UPS is a complete three-phase power protection solution. The 9355 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.

Weight	627 lbs
Dimensions	5 × 3 × 5 in
Form Factor
Color	Black
Brand	Eaton
Input operation voltage (min)	480 V
Input operation voltage (max)	480 V
Input frequency	50/60 Hz
Output operation voltage (min)	208 V
Output operation voltage (max)	208 V
Efficiency	91%
Input power factor	0,99
Output power factor	0,9
Input current Total Harmonic Distortion (THD)	5%
Noise level	56 dB
Audible alarm(s)	Yes
RS-232 ports	1
Battery technology	Sealed Lead Acid (VRLA)
Automatic battery test	Yes
Display type	LCD
LED indicators	Yes
Operating temperature (T-T)	10 – 40 °C
Storage temperature (T-T)	0 – 25 °C
Operating altitude	0 – 3000 m
Certification	EN 50091-2<br />UL, cUL
Safety	IEC 62040-1-1, IEC 60950, EN 62040-1-1, UL 1778
Width	304,8 mm
Depth	850,9 mm
Height	1214,1 mm
Response time	0,000000001 ms
Power protection features	Overload
Weight	261,7 kg
