Name: Eaton KA1511200000010 - 9355 15 kVA with 32-Battery (2-High)
Brand: Eaton
SKU: KA1511200000010
Price: 27027.78 CAD
Availability: BackOrder

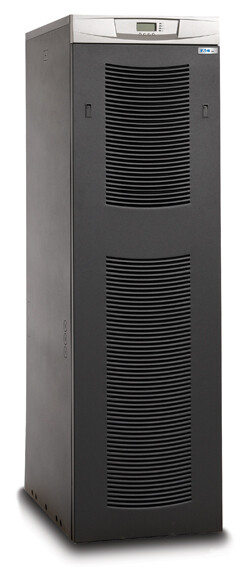

Eaton KA1511200000010 – 9355 15 kVA with 32-Battery (2-High)

$27,027.78

Brand: Eaton

Part Number (MPN): KA1511200000010

UPC / GTIN: 743172018601

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

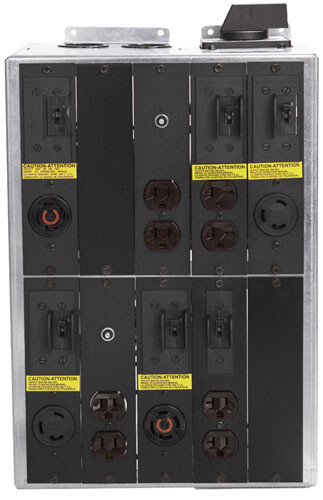

The Eaton 9355 UPS provides premium double-conversion backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9355 UPS is a complete three-phase power protection solution. The 9355 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.

Weight	420 lbs
Dimensions	5 × 3 × 5 in
Form Factor
Color	Black
Brand	Eaton
Input operation voltage (min)	220 V
Input operation voltage (max)	220 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	220 V
Efficiency	91%
Input power factor	0,99
Output power factor	0,9
Input current Total Harmonic Distortion (THD)	5%
Noise level	56 dB
Audible alarm(s)	Yes
RS-232 ports	1
Battery technology	Sealed Lead Acid (VRLA)
Automatic battery test	Yes
Display type	LCD
LED indicators	Yes
Operating temperature (T-T)	10 – 40 °C
Storage temperature (T-T)	0 – 25 °C
Operating altitude	0 – 3000 m
Certification	EN 50091-2<br />UL, cUL
Safety	IEC 62040-1-1, IEC 60950, EN 62040-1-1, UL 1778
Width	304,8 mm
Depth	850,9 mm
Height	817,9 mm
Power protection features	Overload
Weight	169,2 kg
