Eaton Powerware 9355 30 kVA 208V UPS with Internal Batteries, Single/Dual Feed – KB3013100000010

Name: Eaton Powerware 9355 30 kVA 208V UPS with Internal Batteries, Single/Dual Feed - KB3013100000010
Brand: Eaton
SKU: KB3013100000010
Price: 40554.67 CAD
Availability: BackOrder

$40,554.67

Brand: Eaton

Part Number (MPN): KB3013100000010

UPC / GTIN: 743172018670

Eaton PW9355 30KVA

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

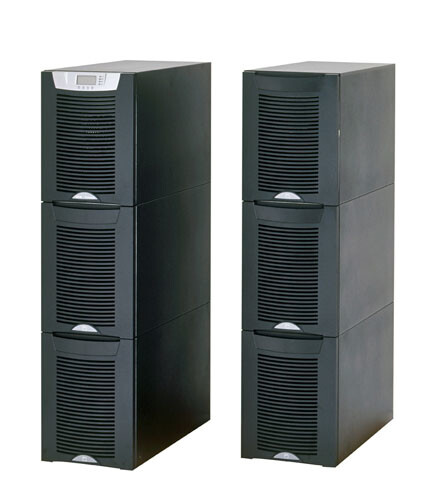

The Eaton 9355 UPS provides premium double-conversion backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9355 UPS is a complete three-phase power protection solution. The 9355 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.

Weight	1190 lbs
Dimensions	5 × 3 × 5 in
Form Factor
Color	Black
Brand	Eaton
Input operation voltage (min)	208 V
Input operation voltage (max)	208 V
Input frequency	50/60 Hz
Output operation voltage (min)	208 V
Output operation voltage (max)	208 V
Efficiency	91%
Input power factor	0,99
Output power factor	0,9
Input current Total Harmonic Distortion (THD)	5%
Noise level	58 dB
Audible alarm(s)	Yes
RS-232 ports	1
Battery technology	Sealed Lead Acid (VRLA)
Automatic battery test	Yes
Display type	LCD
LED indicators	Yes
Operating temperature (T-T)	10 – 40 °C
Storage temperature (T-T)	0 – 25 °C
Operating altitude	0 – 3000 m
Certification	EN 50091-2 Class A<br />UL, cUL, NOM-NYCE
Safety	IEC 62040-1-1, IEC 60950, EN 62040-1-1, UL 1778, NOM-0190SCP8-1993
Width	508 mm
Depth	866,1 mm
Height	1676,4 mm
