Eaton 9PX G2 Maintenance Bypass for Select 8kVA to 11kVA 9PX UPS Systems, Hardwired Input/Output, 4 L6-30R Outlets, 0U Rack/Tower/Wall

Quick Specs

• Isolates UPS from connected loads for maintenance without powering down equipment
• Designed for 0U rear rack mounting, tower or wall mounting using the included hardware
• Compatible with Eaton’s 8kVA to 11kVA 9PX G2 UPS systems

Features

Compatible with Select Eaton 8kVA/11kVA 9PX G2 UPS Systems
The MBP11K208G2 works with Eaton’s 9PX8KG2, 9PX8KG2-L, 9PX8KTF5G2, 9PX11KG2, 9PX11KG2-L 9PX11KTF11G2 and 9PX11KTF5G2 UPS systems. The bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode.

Versatile Connection and Installation Options

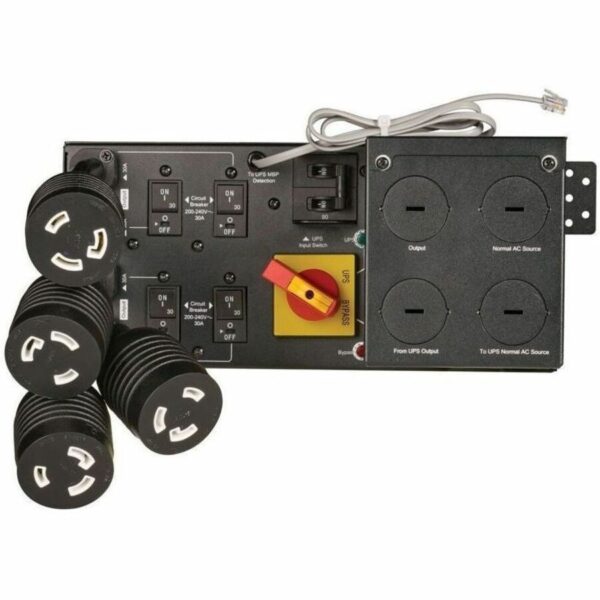

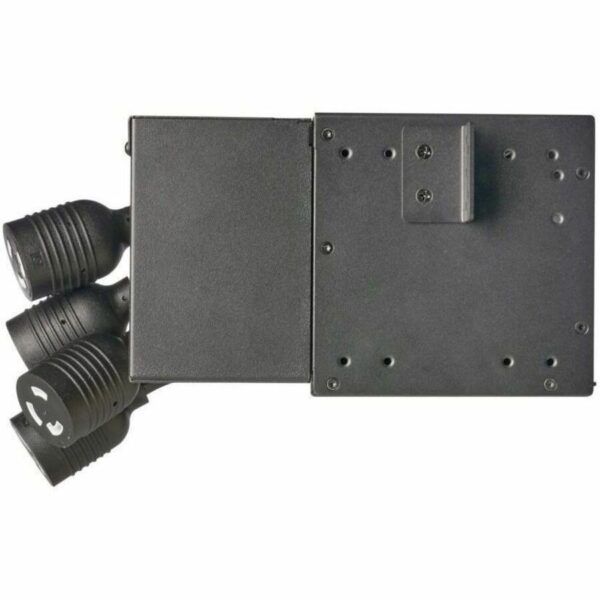

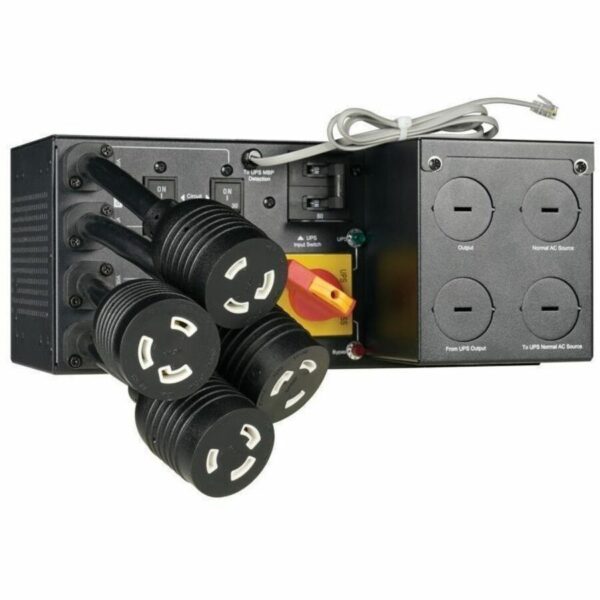

The MBP11K208G2 features hardwired input and output connections, as well as four NEMA L6-30R outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.

System Requirements

Compatible with Eaton’s 9PX8KG2, 9PX8KG2-L, 9PX8KTF5G2, 9PX11KG2, 9PX11KG2-L, 9PX11KTF11G2 and 9PX11KTF5G2 UPS systems

Package Includes

• MBP11K208G2 Maintenance Bypass
• (2) Input/output covers
• Input/output cover fixation kit
• (2) Conduits for UPS input/output connection
• (4) Conduit fittings
• Mounting hardware
