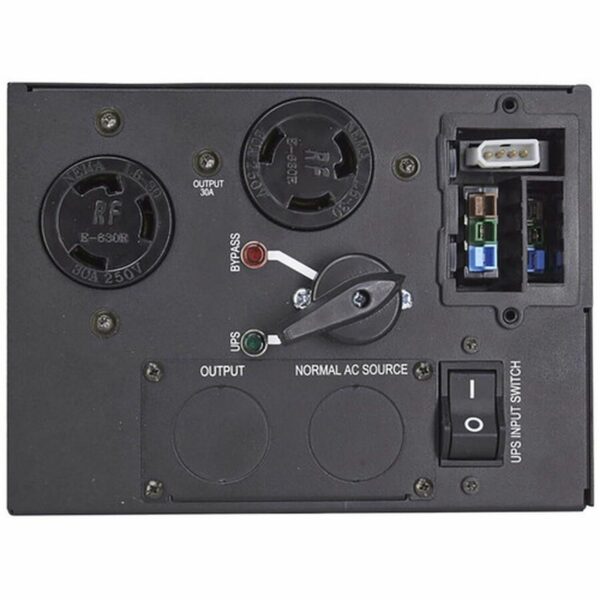

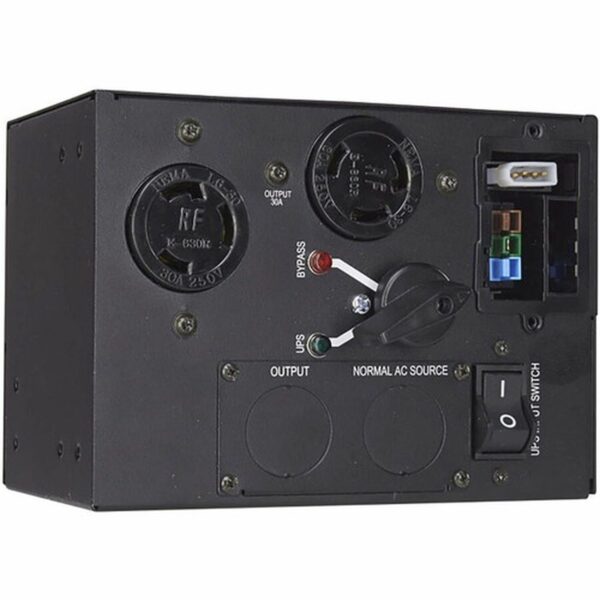

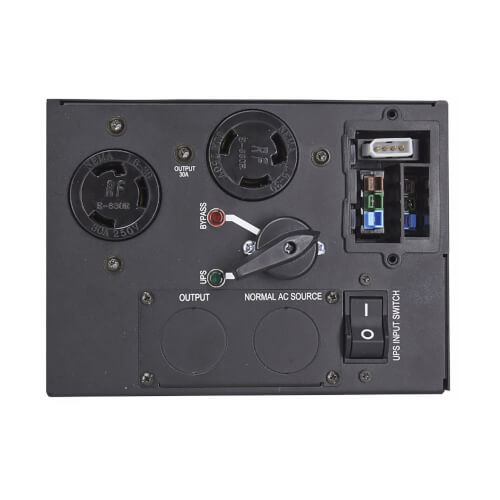

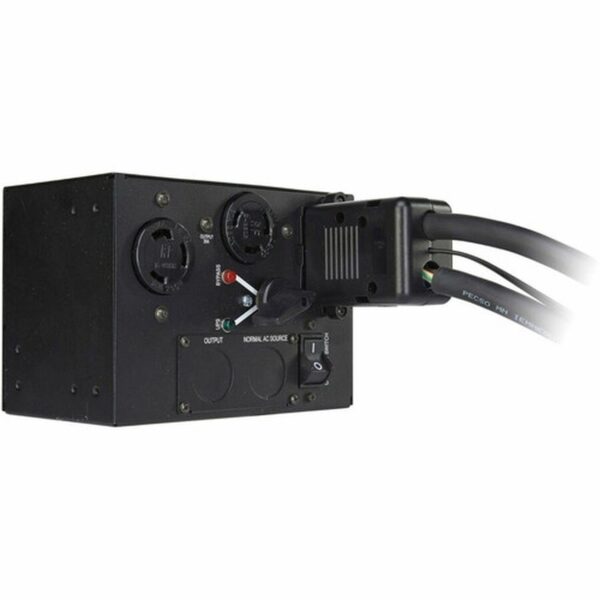

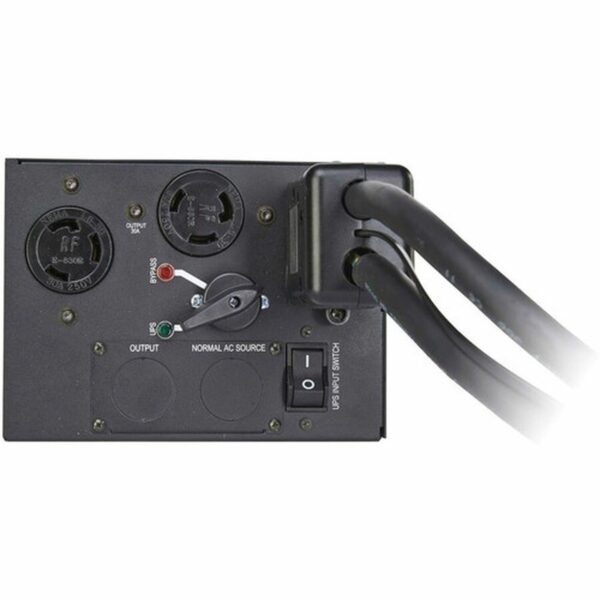

Name: Eaton 9PX Maintenance Bypass for Select 5kVA to 6kVA 9PX UPS Systems, Hardwired Input/Output, 2 L6-30R Outlets, Rack/Tower/Wallmount
Brand: Eaton
SKU: MBP6K208
Price: 666.40 CAD
Availability: BackOrder

Eaton 9PX Maintenance Bypass for Select 5kVA to 6kVA 9PX UPS Systems, Hardwired Input/Output, 2 L6-30R Outlets, Rack/Tower/Wallmount

$666.40

Brand: Eaton

Part Number (MPN): MBP6K208

UPC / GTIN: 743172043603

Datasheet: PDF

Eaton 9PX Maintenance Bypass for Select 5kVA to 6kVA 9PX UPS Systems, Hardwired Input/Output, 2 L6-30R Outlets, Rack/Tower/Wallmount

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Isolates UPS from connected loads for maintenance without powering down equipment
Designed for rear mount in a rack, tower or wall mounting using the included installation hardware
Compatible with Eaton’s 9PX5K, 9PX6K, 9PX6K-L and 9PX3K3UN UPS systems

Features

Compatible with Select Eaton 5kVA/6kVA 9PX UPS Systems
The MBP6K208 works with Eaton’s 9PX5K, 9PX6K, 9PX6K-L and 9PX3K3UN UPS systems. The bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment.

Versatile Connection and Installation Options
The MBP6K208 features hardwired input and output connections. Two NEMA L6-30R outlets also allow load connection. You can rear mount the maintenance bypass switch to the back of the UPS. You can also adapt it for tower or wall installation using the included hardware.

System Requirements

Compatible with Eaton’s 9PX5K, 9PX6K, 9PX6K-L and 9PX3K3UN UPS systems

Package Includes

MBP6K208 Maintenance Bypass
Input/output UPS cable set
(2) Cable glands
Mounting hardware
Installation and user manual

Weight	5.49 lbs
Dimensions	4.3 × 7 × 5.1 in
UPC Code	743172043603
Brand	Eaton
Accessory Type	Bypass Panel (Rack-Mount)
Accessory Class	UPS Accessories
UPS Input Connection Type	Hardwire
Primary Form Factor	Rackmount; Tower; Wall-mount
Operating Temperature Range	32° to 104°F (0° to 40°C)
Relative Humidity	0-95% non-condensing
Product Compliance	RoHS
Product Warranty Period (U.S. & Canada)	3-year limited warranty
