Eaton 9PX G2 Maintenance Bypass for Select 9PX UPS Systems, Hardwired or L6-30P Input, Hardwired, 3 C39 and 2 C13 Outlets, 0U Rack/Tower/Wall

Quick Specs

• Isolates UPS from connected loads for maintenance without powering down equipment
• Designed for 0U rear rack mounting, tower or wall mounting using the included hardware
• C39 combo outlets accept C14 and C20 connectors, adding flexibility to deployments
• Compatible with Eaton Tripp Lite power cords
• Compatible with Eaton’s 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6KIECG2, 9PX6K-L, and 9PX6KG2-L

Features

Compatible with Eaton Select 9PX G2 UPS Systems
The MBP6KIECG2 works with Eaton’s 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6KIECG2, 9PX6K-L, and 9PX6KG2-L. The bypass lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode.

Versatile Connection and Installation Options

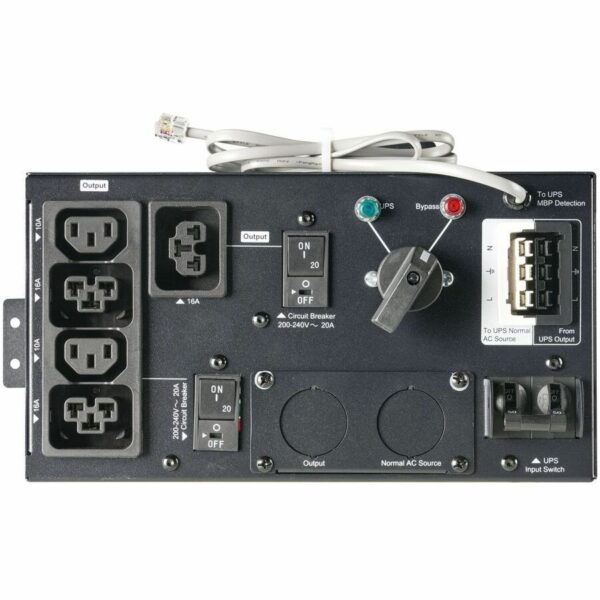

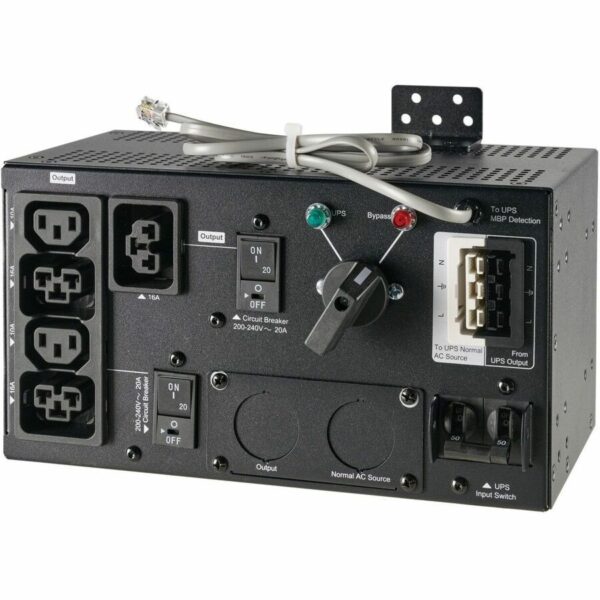

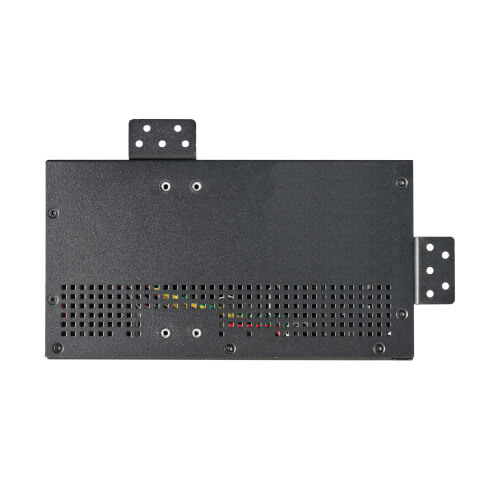

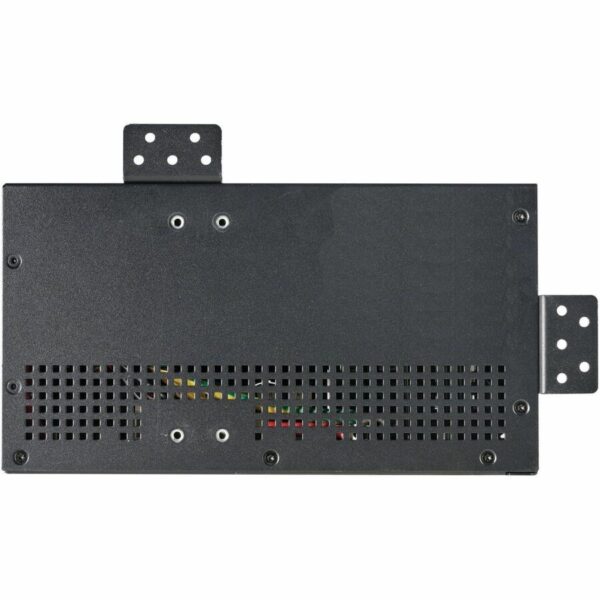

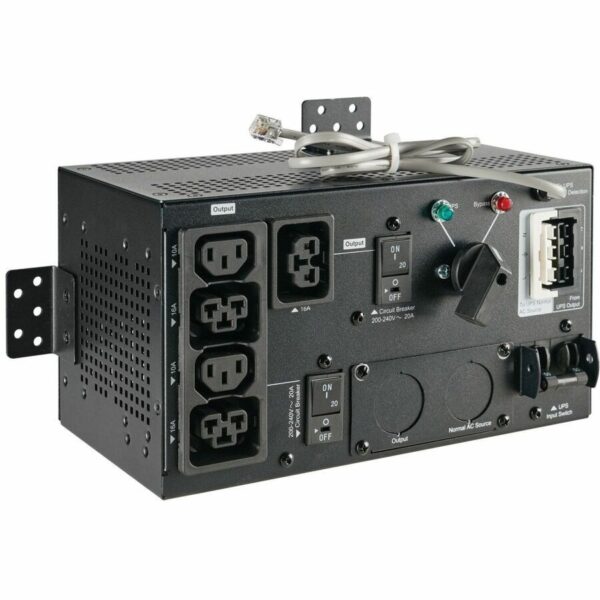

The MBP6KIECG2 features hardwired input, as well as two C13 and three C39 outlets, and hardwired output. You can also use the detachable L6-30P cable included with your 9PX G2 3-6kVA UPS for an L6-30P input with MBP6KIECG2. The C39 combo outlets accept both C14 and C20 connectors. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.

System Requirements

Compatible with Eaton’s 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6KIECG2, 9PX6K-L, and 9PX6KG2-L UPS systems

Package Includes

• MBP6KIECG2 Maintenance Bypass
• Input/output UPS cable set
• (2) Cable glands
• Mounting hardware
