Name: Hammond 1589 Series 1U Rackmount PDU, 8 Rear 5-20R Outlets, 20A 125V, 15 ft 5-20P Cord, Illuminated On/Off Switch, Black, 1589H8G1BKRR
Brand: Hammond
SKU: 1589H8G1BKRR
Price: 115.31 CAD
Availability: InStock

Hammond 1589 Series 1U Rackmount PDU, 8 Rear 5-20R Outlets, 20A 125V, 15 ft 5-20P Cord, Illuminated On/Off Switch, Black, 1589H8G1BKRR

$115.31

Brand: Hammond

Part Number (MPN): 1589H8G1BKRR

UPC / GTIN: 623980017648

Datasheet: PDF

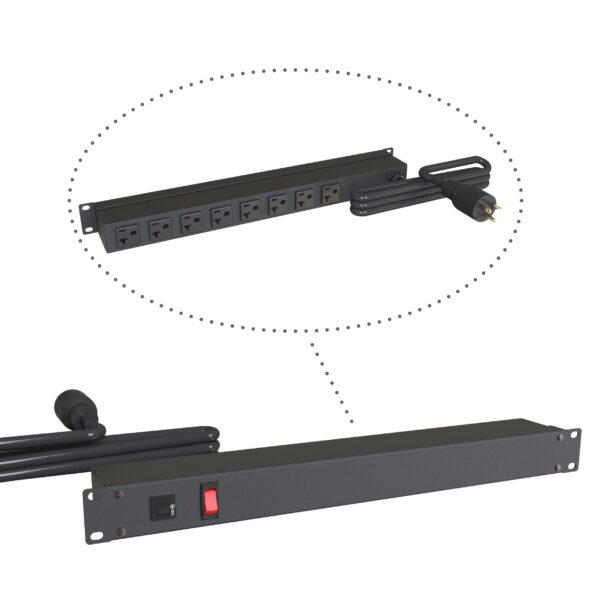

The Hammond 1589H8G1BKRR is a 1U 19-inch rackmount PDU with 8 NEMA 5-20R outlets (rear-facing) and a 15 ft NEMA 5-20P straight blade cord, rated 20A at 125V. It has an illuminated on/off switch, an integrated circuit breaker and a black powder coat finish.

Toronto Stock: 22 available

Need project pricing? Add items to your cart to request a custom project quote.

The Hammond 1589 Series 1589H8G1BKRR is a heavy-duty 20A single-phase rackmount PDU for IT, networking, AV, telecom, test and industrial racks. Its compact 1U horizontal chassis mounts directly in standard 19-inch racks and cabinets, with rear-facing NEMA 5-20R outlets that accept both 5-15P and 5-20P equipment plugs.

Outlets: 8 x NEMA 5-20R (rear-facing), heavy-duty receptacles rated 20A 125VAC
Input: NEMA 5-20P straight blade plug, 15 ft 12/3 SJT cord
Rating: 20A, 125VAC single-phase; integrated circuit breaker
Control: illuminated on/off switch
Dimensions: 1.72 in H x 19.00 in W x 2.66 in D (1U)
Operating temperature: -20 C to +60 C
Finish: textured RAL 9005 black powder coat; GREENGUARD and RoHS
Certifications: UL/cUL recognized to UL 1363 and CSA C22.2 No. 308-14 (UL File E166039)
TAA compliant; manufactured in North America

Weight	4 lbs
Dimensions	8 × 6 × 4 in
Brand	Hammond
Max Input Amps	20
Total Outlets	8
Rack Height	1U
Form Factor	Rackmount
Outlet Types	5-20R
Input Plug	5-20P
Cord Length	15
Input Voltage	125V
Input Phase	Single-Phase
PDU Type	Basic
Color	Black
