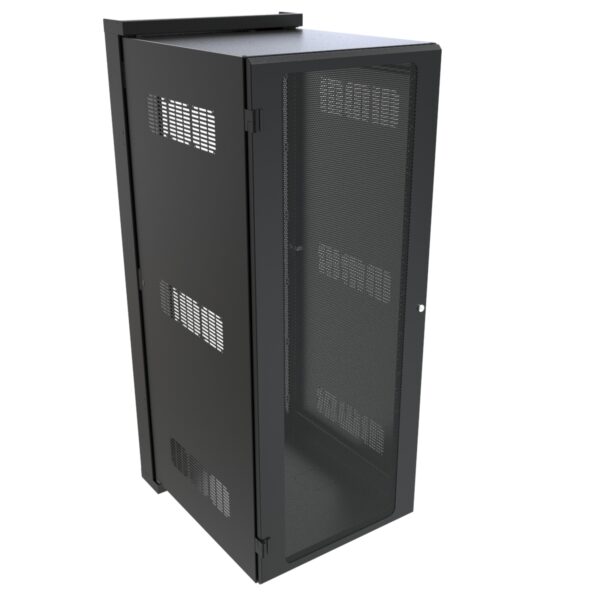

Hammond HWM Series 32U Swing-Out Wall Mount Rack Cabinet, 24.68 x 31.18 in, 26 in Center Section, 350 lb, Vented Door, Black, HWM2432U26BK

The Hammond HWM Series swing-out wall-mount cabinet mounts 19-inch rack equipment in network closets and telecom rooms. The center section swings out on a heavy-duty spring hinge for full rear access, and the reversible body lets the swing direction be changed on site.

• Rack space: 32U; 19 in EIA rack compatible
• Overall dimensions (H x W x D): 62.75 x 24.68 x 31.18 in; center section depth 26 in
• Mounting (usable) dimensions (H x W x D): 56.00 x 19.00 x 28.85 in (usable depth is the maximum equipment depth that lets the body swing out unimpeded)
• Load rating: UL2416 listed to 350 lb (159 kg); seismic rated to 200 lb (90.72 kg) dynamic load (Ip = 1.5) per IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10
• 14-gauge welded rear section with 16-gauge center section and doors
• One pair of adjustable 10-32 tapped mounting rails; starter hardware pack with SCREW1032-50 screws included
• Vented front door for airflow; front door and rear section keyed alike
• Multiple cable entry knockouts, rear cable access, ventilation and fan provisions
• Optional accessories: rear pan panel HWMRPP32, tapped rail pair HWMTR32U, square-hole rail pair HWMSR32U, replacement lock HWMSLOCK
• Black powder coat finish (GREENGUARD Gold, TSCA, RoHS compliant)
• TAA-compliant, manufactured in North America
