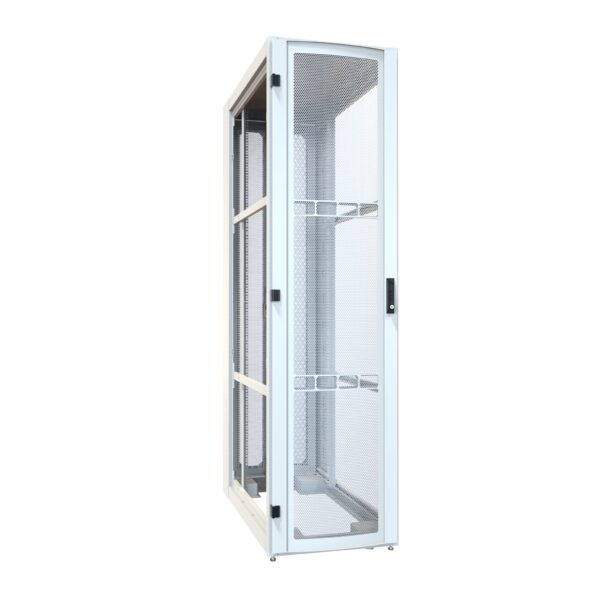

Hammond H1 Series 48U Server Rack Cabinet, 24 in Wide x 48 in Deep, 3000 lb Capacity, Perforated Doors, White, H12448U48WH
$4,054.21
The Hammond H12448U48WH is a 48U, 24-inch wide, 48-inch deep H1 Series data center server rack cabinet with a 14-gauge welded steel frame, UL2416 3,000 lb load rating and 79% open perforated front and split rear doors. Finished in RAL 9003 white.
Toronto Stock: 4 available
Need project pricing? Add items to your cart to request a custom project quote.
The Hammond H1 Series H12448U48WH is Hammond’s flagship server rack cabinet for data centers, enterprise IT, colocation and high-density server, network and storage deployments. It combines high airflow, integrated cable management, security and flexible configuration options.
- Rack space: 48U, EIA-310 compliant
- Overall dimensions (H x W x D): 90.87 x 24 x 49.91 in
- Usable mounting dimensions (H x D): 84 x 45 in
- Frame: 14-gauge mild steel welded frame with 12-gauge reinforced corner brackets; 16-gauge doors
- Load rating: UL2416 listed to 3,000 lb (1,360 kg); seismic rated to 1,200 lb dynamic load (IBC, CBC, NBC, ASCE)
- Rails: two pairs of infinitely adjustable 12-gauge EIA-310 square-hole mounting rails
- Doors: perforated front and split rear doors (79% airflow), surface mounted with locking swing handle
- Includes: frame, two pairs of square-hole rails, vented front door, vented split rear door, one solid top and one brushed top
- Factory-installed leveling feet and recessed casters
- Optional single side panel: H1SP48U48WH (sold separately)
- Finish: RAL 9003 white
- Meets PCI DSS; TAA-compliant, manufactured in North America
| Weight | 315 lbs |
|---|---|
| Dimensions | 48 × 24 × 90.87 in |
| Brand | |
| Rack Height | 48U |
| Color | White |
| Rack Type | Enclosure |
| Form Factor | Stationary Cabinet |
| Max Device Depth (cm) | 45 |
| Weight Capacity (kg) | 3000 |
