Trend Networks – SignalTEK QT Pro Qualifier – Copper Fiber Wi-Fi

Overview & Includes

The SignalTEK QT Pro is the ultimate all-in-one tester for copper, fibre, and Wi-Fi networks. Designed for installers and network engineers, it verifies 10G performance over copper cabling, fibre optic links, and wireless connections — ensuring your network is ready for today’s high-speed demands.

Key Features:

• Copper Cable Qualification: Test performance up to 10Gb/s, including Multi-Gigabit speeds, with live wiremap and TDR fault location (supports up to 12 remotes).

• Fibre Optic Qualification: Measure insertion loss (dB loss) and fibre length for links up to 100Gb/s, using high-accuracy SFP modules.

• Integrated Visual Fault Locator (VFL): Quickly detect fibre breaks, bends, or continuity issues with the built-in red laser source.

• Optional Fibre Connector Inspection Microscope: Perform automatic Pass/Fail testing to IEC 61300-3-35 standards.

• Wi-Fi Diagnostics & Access Point Scanning: Conduct Wi-Fi surveys, identify channel conflicts, analyse utilisation, and locate hidden access points with external antenna support.

• PoE Load Testing: Verify power delivery up to 90W (supports 802.3 af/at/bt) with Pass/Fail results.

• Comprehensive Network Diagnostics: Includes ping, traceroute, device discovery, switch port information, and VLAN detection.

• TREND AnyWARE Cloud Integration: Pre-configure jobs, manage projects, and share test results securely — all from the cloud.

• Remote Access via TeamViewer & VNC: Project managers can assist field technicians in real time.

• Extensive Connectivity Options: Features RJ45, SFP+, VFL, external Wi-Fi antenna, USB-C, and dual USB-A ports.

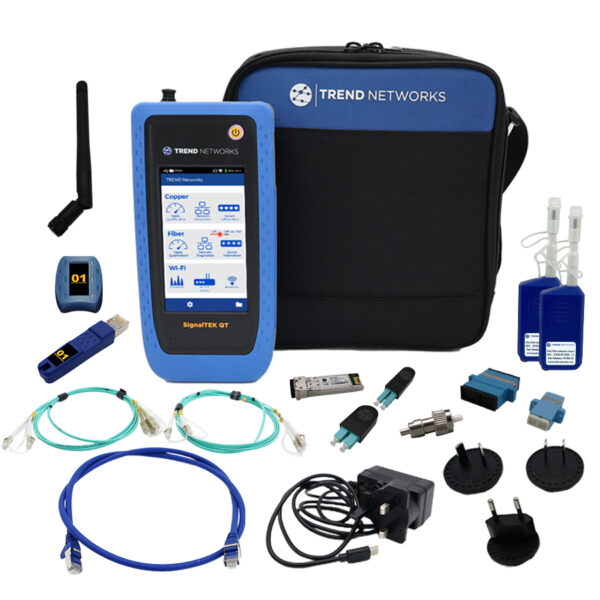

Kit Contents:

SignalTEK QT Pro 10 Gigabit Copper & Fibre Qualification Tester. 10G copper/fibre qualifier with Wi-Fi (internal and external antennas), soft carry case, 1 x plug (male) copper remote – ID #1, 1 x socket (female) copper remote – ID #1, 1m Cat 6A shielded patch cord, 1 x 850nm MM high stability SFP module, 1 x LC-LC and 1 x LC-SC OM3 MM duplex patch cords, 1 x LC and 1 x SC multimode fibre loopback remotes, 1x FC to LC adapter for VFL, 1x Duplex SC coupler, 1x Duplex LC coupler, 2.5 & 1.25mm fibre cleaning pen, USB-C charger with changeable plugs.

Product Series Highlights

The All-in-One Cloud Connected Tester you can Depend On.

The new SignalTEK QT Series is the ultimate 10G Qualification Tester for Copper, Fibre, and Wi-Fi diagnostics. Powered by TREND AnyWARE Cloud, enabling remote reporting and test result analysis.

As networks evolve to support higher bandwidth, lower latency, and increased device density, 10 Gigabit Ethernet is rapidly becoming the standard for future-proof LAN infrastructures. The transition to fibre optic backbones and the growing demand on Wi-Fi networks require precise, reliable and scalable testing solutions, which is exactly what the SignalTEK QT delivers. The SignalTEK QT Series was designed for today’s Copper, Fibre and Wi-Fi networks.
