Tripp Lite series 4-Post Rack-Mount Installation Kit of select Rack-Mount UPS Systems

Quick Specs

• Supports UPS systems in 4-post rackmount applications
• Adjustable to any setting between 20.5 and 36 inches
• Temporary placement pegs simplifies single-person installation
• Square hole rack attachment hardware included
• Supports UPS chassis up to 250 lbs (113.4 kgs)

Overview

The 4POSTRAILKIT adjustable rack-mount shelf system supports heavy UPS systems in 4-post rack-mount applications. Includes one pair of expandable “L bracket” mounting rails to offer front-to-rear support of rack-mount UPS systems. Pair of expandable “L brackets” adjust to any setting between 20.5 and 36 inches. Includes mounting hardware compatible with square-hole racks. Set of temporary placement pegs enables simple single-person installation by allowing the rails to be held in place while attachment hardware is installed. Also compatible with other heavy pieces of networking or power protection equipment with 17.5-inch-wide rectangular chassis. Supports up to 250 pounds (113.4 kilograms).

Features

• 4POSTRAILKIT adjustable rack-mount shelf system supports heavy UPS systems in 4-post rack-mount applications
• Includes one pair of expandable “L bracket” mounting rails to offer front to rear support rack-mount UPS systems
• Pair of expandable “L brackets” adjust to any setting between 20.5 and 36 inches
• Includes mounting hardware compatible with square-hole racks
• Set of temporary placement pegs enables simple single-person installation by allowing the rails to be held in place while attachment hardware is installed
• Also compatible with other heavy pieces of networking or power protection equipment with 17.5 inch wide rectangular chassis
• Supports up to 250 pounds (113.4 kg)

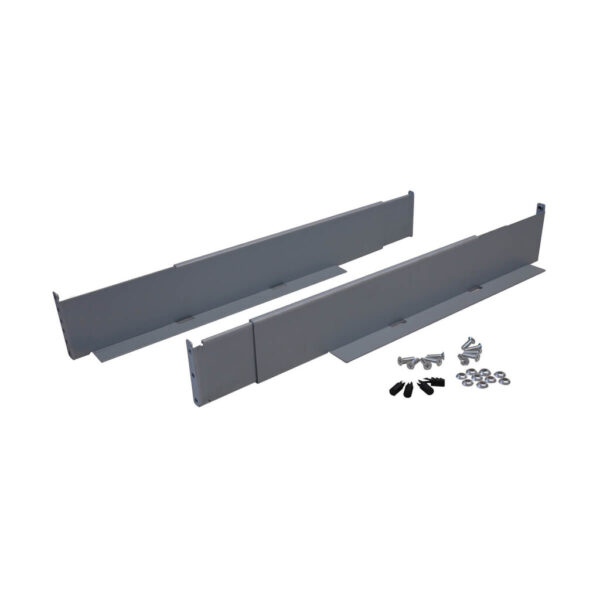

Package Includes

• Pair of expandable L brackets
• Attachment hardware
