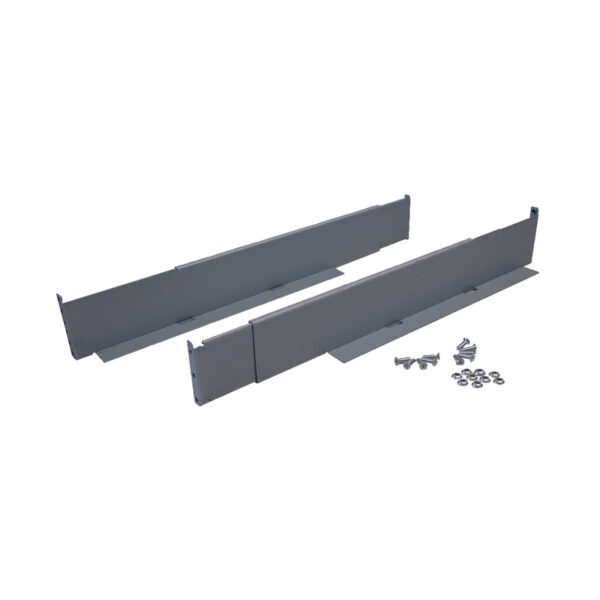

Tripp Lite series SmartRack Mounting Rail Kit – enables 4-Post Rackmount Installation of select UPS Systems

Quick Specs

• Supports heavy UPS systems in 4-post rackmount applications
• Adjustable to any setting between 20.5 and 36 in.
• Square-hole rack attachment hardware is included
• Supports a UPS chassis up to 500 lbs (226.8 kgs)

Overview

The 4POSTRAILKITHD is an adjustable rack-mount shelf system that supports heavy UPS systems in 4-post rack-mount applications. Includes one pair of expandable “L bracket” mounting rails to offer front-to-rear support of select rack-mount UPS systems or other heavy pieces of networking or power protection equipment with a 17.5-inch-wide rectangular chassis. A pair of expandable “L brackets” adjust to any setting between 20.5 and 36 inches. The kit includes mounting hardware compatible with square-hole racks. Supports up to 500 pounds (226.8 kilograms)

Features

• An adjustable rackmount shelf system that supports heavy UPS systems in 4-post rackmount applications
• Includes one pair of expandable “L bracket” mounting rails to offer front-to-rear support of rackmount UPS systems
• Expandable “L brackets” adjust to any setting between 20.5 and 36 inches
• Includes mounting hardware compatible with square-hole racks
• Compatible with other heavy pieces of networking or power protection equipment with a 17.5-in. wide rectangular chassis
• Supports up to 500 lbs (226.8 kgs)

Package Includes

• Pair of expandable L brackets
• Attachment hardware
