Cloud-based dashboard allows 24/7 remote monitoring via browser or mobile app
Cloud-connected UPS sets up in minutes to start protecting your devices
Create account with two-factor authentication for an additional layer of security
NFC technology allows easy configuration of network settings from your mobile device
Lets you control outlets or shut down devices using your PC, tablet or smartphone
Sends you fast alert notifications and responses through email or SMS
Features

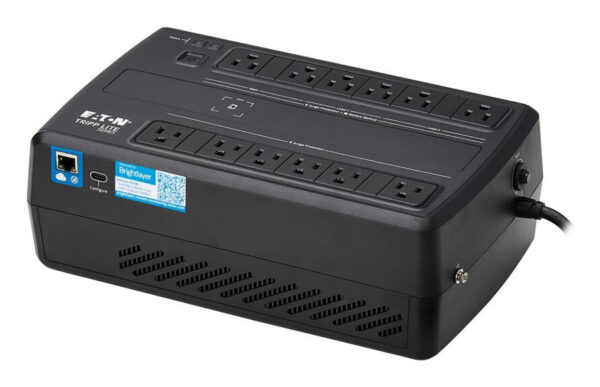

750VA/450W/120V Battery Backup for Digital Signage and Home/Office Networks The AVR750UNC line-interactive cloud-connected UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for computers, routers, gaming systems, ATMs, security systems, digital signage and other home/office networking equipment.
Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer Eaton’s cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control outlet banks using a mobile app or web browser. Being able to monitor and access an army of UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit’s NFC (Near-Field Communication) area lets you configure network settings instantly from your mobile device.
Allows Time to Back Up Critical Files During a Blackout The AVR750UNC restarts automatically once power is restored, regardless of battery charge level, saving you a costly site visit. During short blackouts and brownouts, the AVR750UNC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage.

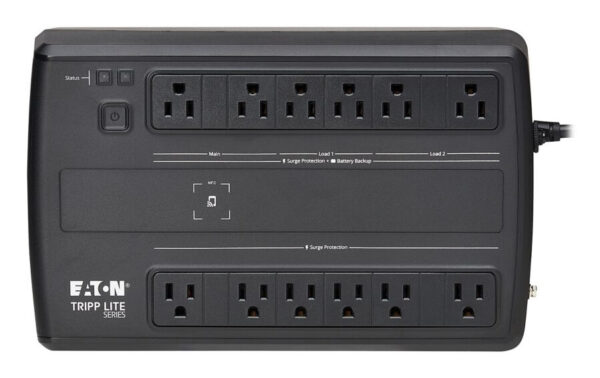

Premium Protection from Surges and Line Noise Helps Your Equipment Perform Better Rated for 316 joules of surge suppression, the AVR750UNC and all 12 NEMA 5-15R outlets protect connected devices from the harmful effects of power surges. The AVR750UNC also filters out disruptive electromagnetic interference (EMI) and radio frequency interference (RFI) that can destroy data and contribute to lengthy downtime. Four outlets are set apart from the others to allow connection of bulky transformers.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The AVR750UNC can correct brownouts as low as 89V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.

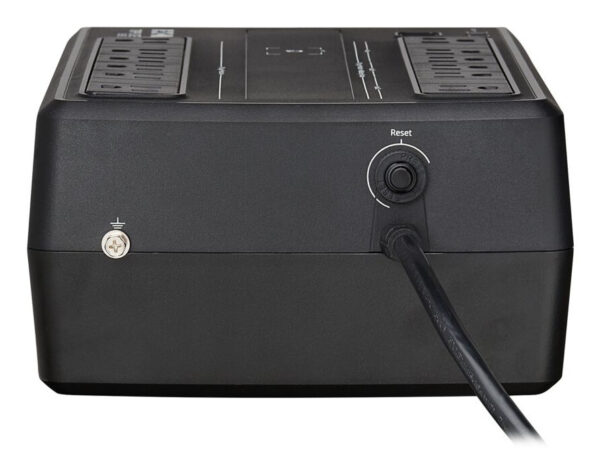

Easy Preventative Maintenance and Initial Troubleshooting The AVR750UNC’s self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.
Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7 An audible alarm and a red LED indicate a low battery or fault condition. A green LED indicates power and line/battery mode status. The audible alarm can be disabled via the remote monitoring app, which will still respond to silenced alarms.

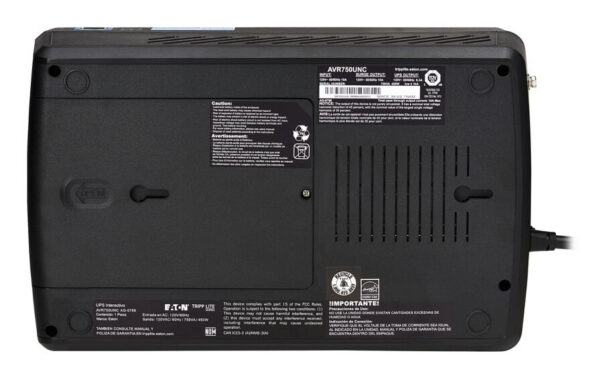

Hardened Housing Compatible with Versatile Deployment Options The flatpack housing allows use in locations with higher ambient temperatures (operating temperature range: 32° to 104°F / 0° to 40°C). The AVR750UNC’s small size is suitable for desktop or floor placement. Keyhole slots on the bottom allow wall mounting. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.
110% +/-10% 5 min. to fault (Line Mode), 120% +/-10% Immediate to fault (Line Mode); 110% +/-10% Shutdown 5 seconds (Battery Mode), 120% +/-10% Shutsdown immediately (Battery Mode)
Individually Controllable Load Banks
Yes
Battery Type
Valve Regulated Lead Acid (VRLA)
Runtime Full Load (min.)
3 min. (450W)
Runtime Half Load (min.)
11 min. (225W)
DC System Voltage (VDC)
12
Battery Recharge Rate (Included Batteries)
8 Hours from 10% to 90% capacity
Battery Access
Battery access door
Internal UPS Replacement Battery Cartridge
RBC51
Battery Replacement Description
Replaceable internal batteries (see manual)
Lithium Batteries
No
Input Voltage(s)
120VAC
Battery Voltage (VDC)
12
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
Overvoltage Correction
Input voltages between 128 and 145 are reduced by 15%
Undervoltage Correction
Input voltages between 89 and 108 are boosted by 18%
Switches
POWER ON – Press and hold power button about 0.5 second. POWER OFF – Press and hold power button about 0.5 seconds. UPS will be turned off
Audible Alarm
Sounds every 1 second when line power is absent and the batttery is low; Sounds every 0.5 sec. to indicated overload in line or battery modes, Sounds every 1 minute when the battery needs to be replaced; Sounds continuously in line mode during overload event and any fault mode condtion.
LED Indicators
GREEN – ON SOLID when the line input voltage is normal and the battery is fully charged, in overload, and battery replace events. FLASH GREEN when line voltage is absent, and the UPS is running in battery mode. FLASH GREEN every 1 sec. when battery is low. FLASHES GREEN every 0.5s during overload event in battery mode. RED – ON SOLID when running in line mode during overload event and fault condition. RED – FLASHES in line mode and when the battery needs to be replaced.
EMI / RFI AC Noise Suppression
Yes
AC Suppression Joule Rating
316
AC Suppression Response Time
Instantaneous
Primary Form Factor
Desktop; Surface Mount; Wall-mount
Rack Height
0U
Installation Form Factors Supported with Included Accessories
Tower; Ultra-compact desktop; Wallmount
Primary UPS Depth (mm)
305
Primary UPS Height (mm)
105
Primary UPS Width (mm)
190
Shipping Dimensions (hwd / cm)
27.20 x 16.00 x 38.10
Shipping Weight (kg)
8.18
UPS Housing Material
ABS
Unit Weight (kg)
7.18
Input Cord Color
Black
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
5° to 122°F (-15° to 50°C )
Relative Humidity
0-90% non-condensing
AC Mode BTU / Hr. (Full Load)
41
AC Mode Efficiency Rating (100% Load)
>96%
Operating Elevation
Up to 6562 ft.
Network Monitoring Port Description

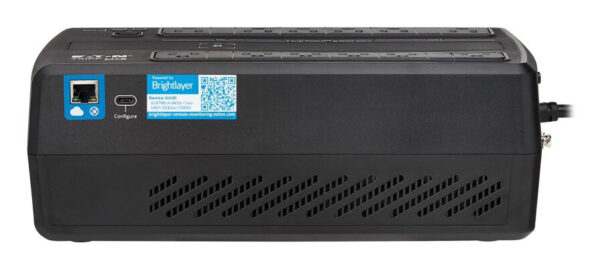

Ethernet port (RJ45) – Port connects to a local network.
PowerAlert Software
Eaton Cloud-enabled Remote Monitoring Application
Network Monitoring Port
Network Configuration (options): with NFC; USB-C port: by enabling CLI commands.
Network Management Card Description
Cloud-connected Remote Monitoring UPS
Communications Interface
Near Field Communication (NFC); RJ45 Network; USB-C
Transfer Time
4 – 6ms (max <10 ms)
Low Voltage Transfer to Battery Power (Setpoint)
89
High Voltage Transfer to Battery Power (Setpoint)
145
Cold Start (Startup in Battery Mode During a Power Failure)
Minimum Battery Voltage for Cold Start @ 10.6V
High Availability UPS Features
Automatic Voltage Regulation (AVR); Remote management
Green Energy-Saving Features
Greater than 95% efficiency – GREEN UPS; Individually controllable load banks
Grounding Details
Includes side panel grounding lug
UPS Applications
Computer Gaming; Home/Office Desktop; Computer/Peripherals; Audio/Video; Home Network
Product Certifications
CAN/CSA-C22.2 No. 107.3 (Canada); ICES (Canada); NOM (Mexico); RETIE (Colombia); UL 1778
Product Compliance
ENERGY STAR Qualified; FCC Part 15 Class A (USA); RoHS
Product Warranty Period (U.S. & Canada)
3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)
$100,000 Ultimate Lifetime Insurance
TLWFLN72XX2509UC
2-Year Onsite Service Contract -0-2500 VA UPS, Smart, SMX, SU systems
TLWFLN73XX2509UC
3-Year Onsite Service Contract -0-2500 VA UPS, Smart, SMX, SU systems
TLWFLN75XX2509UC
5-Year Onsite Service Contract -0-2500 VA UPS, Smart, SMX, SU systems
TL5SW5Y0950UC
5-Year Extended Warranty Smart & SMX 0-950 VA UPS systems
TLAS00NXXX6009UC
UPS Assembly on UPS Systems 0-6000 VA for select products, Smart, SMX, SU UPS
Part Number
Description
TLSU05NXXX6009UC
UPS Startup on UPS Systems 0-6000 VA for select products, Smart, SMX, SU UPS
