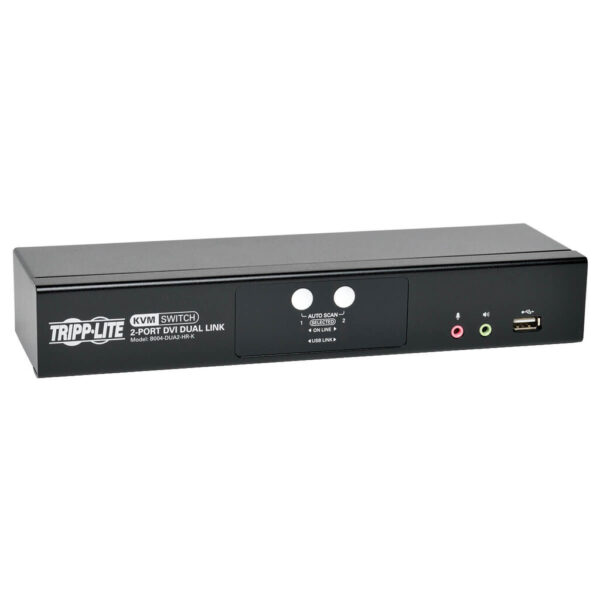

Tripp Lite series 2-Port DVI Dual-Link / USB KVM Switch with Audio and Cables, TAA

Quick Specs

• Control 2 computers with a single DVI monitor, USB keyboard and USB mouse
• Supports DVI Dual Link resolution 2560 x 1600
• 2 sets 6ft cables included
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

• 2-Port DVI Dual Link/USB KVM switch with 7.1 channel surround-sound audio and USB 2.0 peripheral sharing (B004-DUA2-HR-K)
• Built-in 2-Port USB 2.0 hub allows USB devices to be shared amongst computers connected to the KVM switch
• 3.5 mm Mini Stereo Speaker and Microphone jacks allow a single microphone to provide audio input to each of the connected computers, and let you listen to the audio output of each computer on a single set of speakers
• B004-DUA2-HR-K features additional audio jacks for use with 7.1 channel surround-sound
• An additional set of console audio jacks are conveniently located on the front panel of the KVM switch, making them ideal for use with IP phones
• The KVM, USB and Audio can be switched independently of each other
• Features mouse port switching functionality*, which allows users accessing the KVM switch with a scroll mouse to switch between ports by double-clicking the mouse’s scroll wheel
• Switch between connected computers via front panel pushbuttons, keyboard hotkeys, and the mouse switching function*
• Auto Scan mode allows you to scan the connected computers without having to manually switch between them
• Supports both analog and digital video signals, allowing for the connection of a VGA computer and/or monitor with a DVI to VGA adapter
• Supports digital video resolutions up to 2560 x 1600 and analog video resolutions up to 2048 x 1536
• Multi-platform support – Compatible with Windows, Mac, Sun and Linux
• Supports hot-plugging – Computers and devices can be unplugged and re-plugged without having to shut down the KVM switch
• The KVM switch stores the monitor’s EDID (Extended Display Identification Data) to optimize display resolution
• LEDs provide for easy monitoring of connected computers
• Power-On-Detection recognizes when a connected computer has been powered-off and automatically switches to the next powered-on computer
• HDCP compliant
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Console keyboard port emulation/bypass feature supports most gaming/multimedia keyboards
• Complete keyboard emulation for error-free booting
• Multilingual keyboard mapping – supports English, Japanese, and French keyboards
• Quick installation without the need for software
• Sun/Mac keyboard support and emulation**
• Firmware upgradeable
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

*The mouse switching function is disabled by default, and needs to be turned on via keyboard hotkey command. It is only available when using a mouse with a scroll wheel.
**PC keyboard combinations emulate Sun/Mac keyboards. Sun/Mac keyboards only work with their own computers.

System Requirements

• DVI or VGA* port
• A USB port
• 3.5 mm Mini Stereo microphone and speaker jacks (If using the audio feature)

*Requires an adapter, such as P556-Series DVI to VGA adapter cables. Note that the included DVI cables and cable kits are DVI-D only, and cannot be converted to VGA using an adapter. Video from a VGA computer will only display if a VGA monitor is connected.

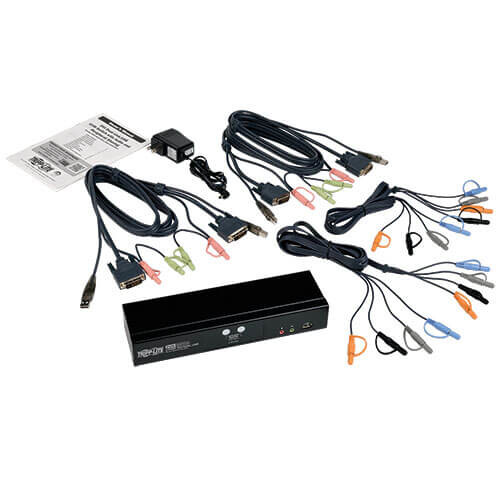

Package Includes

• B004-DUA2-HR-K KVM Switch
• (x2) 6-ft. (1.83 m) USB KVM Cable Kits
• (x2) 6-ft. (1.83 m) 7.1 Surround Sound Cables
• External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5.3V, 2.4A)
• Owner’s Manual
