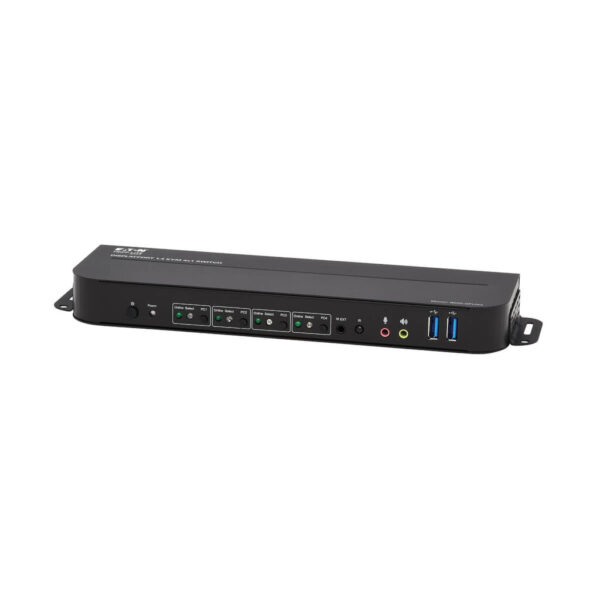

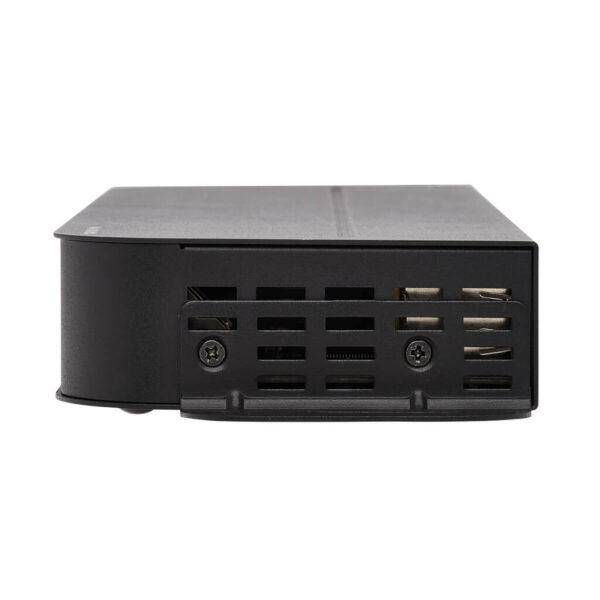

Tripp Lite series 4-Port DisplayPort/USB KVM Switch – 4K 60 Hz, HDR, HDCP 2.2, IR, DP 1.4, USB Sharing
$781.11
Tripp Lite series 4-Port DisplayPort/USB KVM Switch – 4K 60 Hz, HDR, HDCP 2.2, IR, DP 1.4, USB Sharing
Manufacturer Warehouse: 622 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) for crystal-clear video
- Carries High Dynamic Range (HDR) signals for expanded color accuracy
- Dual-mode DisplayPort (DP++) support allows connection of a local HDMI display
- Dual USB 3.0 hub ports let you share USB peripherals among connected computers
- Push buttons, hotkeys and included IR remote allow easy toggling between computers
Features
Connects 4 DisplayPort-Enabled Devices to a Single Monitor, Keyboard and Mouse This KVM switch lets you access, control, boot and reboot four computers with DisplayPort connectors and switch between them. In addition to desktop and notebook computers, the switch also connects up to four media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other DisplayPort-enabled devices. All computers share one monitor, USB keyboard and USB mouse, which saves space on your desk or workspace. Supports DisplayPort++ for Connecting an HDMI or DisplayPort Monitor The B005-DPUA4 supports DP++, allowing incoming DisplayPort signals to be converted to HDMI. It features one DisplayPort output and one HDMI output, though only one monitor may be used at a time. Switching Between Computers Is Fast and Easy Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: The included IR remote requires a battery in order to work. Please note: Mouse Traversal is a permanent feature and cannot be disabled USB Hub Lets You Share Peripherals between Computers Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between both connected computers. The ports support USB 3.0 data transfer speeds up to 5 Gbps and are backward compatible with earlier USB generations. Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color The B005-DPUA4 supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Designed for Convenient Mounting with Included Brackets The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source.
System Requirements
- Console with DisplayPort or HDMI monitor, USB keyboard/mouse and (optional) speakers with 3.5 mm connectors
- Computers with DisplayPort connector, USB-A port and (optional) 3.5 mm audio jack
- Windows, macOS or Linux operating system

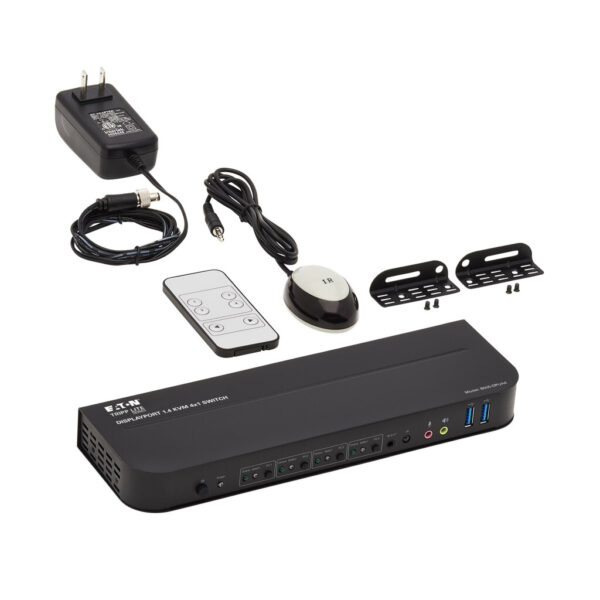

Package Includes
- B005-DPUA4 4-Port DisplayPort/USB KVM Switch
- IR extender
- IR remote control
- External power supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V 3A). Includes Interchangeable Plug Adapters (US, UK, EU and Australia).
- Mounting brackets
- Owner’s manual
| Weight | 1.2125 lbs |
|---|---|
| Dimensions | 7.89 × 9.06 × 2.56 in |
| UPC Code | 037332255020 |
| Cord Length | 3.94 |
| Number of Ports | 4 |
| Brand | |
| Max CPU | 2 |
| Technology | DisplayPort; HDMI; Stereo Audio |
| Number of Monitors Supported | 1 |
| Max Supported Video Resolution | 4K x 2K (4096 x 2160) @ 60 Hz (HDMI and DisplayPort) |
| Max Number of Ports (Entire Chain) | 2 |
| Extended Mode | Yes |
| Mirror Mode | Yes |
| Max Supported Color Depth | 36-bit Deep Color |
| HDR Support | Yes |
| 3D Video Supported | Yes |
| Chroma Sub Sampling | 4:2:0; 4:2:2; 4:4:4 |
| Audio Specification | 7.1 Surround Sound |
| Electrical Consumption (Max) | 15W(5V/3A) |
| AC Power Adapter Plug(s) | AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 5-15P North America |
| AC Power Adapter Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.6A |
| AC Power Adapter Output Specs (V / A) | 5V / 3A |
| AC Power Adapter Cord Length (ft.) | 4 |
| AC Power Adapter Cord Length (m) | 1.2 |
| Nominal Input Voltage Description | Rate Frequency:50/60Hz |
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
| Voltage Compatibility (VDC) | 4.75 – 5.4 |
| Input Frequency | 50/60 Hz |
| Frequency Compatibility | 50 / 60 Hz |
| Power Source Type | AC Adapter |
| DC Barrel Plug | OD: 5.5 x 2.5 x 16.5mm, Positive Pin, Negative Sleeve |
| Power Consumption (Watts) | 15.00 |
| Daisy-Chain Port | No |
| Firmware Upgrade Port | No |
| PC/Server Connections | DisplayPort; HDMI |
| Side A - Connector 1 | (3) 3.5MM (FEMALE) |
| Side A - Connector 2 | (2) USB 3.0 A (FEMALE) |
| Side B - Connector 1 | (2) USB A (FEMALE) |
| Side B - Connector 2 | HDMI (FEMALE) |
| Side B - Connector 3 | (4) USB 3.0 B (FEMALE) |
| Side B - Connector 4 | (5) DISPLAYPORT (FEMALE) |
| Side B - Connector 5 | (10) 3.5MM (FEMALE) |
| Side B - Connector 6 | 3.5mm x 1.35mm (5V DC Barrel) |
| Computer Keyboard and Mouse Interface | USB |
| Computer Monitor Interface | Displayport; HDMI |
| Console Keyboard and Mouse Interface | USB |
| Console Monitor Interface | Displayport |
| Connector Plating | Nickel |
| LED Indicators | Red (Connection to Power), Green (Online), Blue (Selected Port) |
| Color | Black |
| Material of Construction | Metal |
| Total Number of Ports | 24 |
| Shipping Dimensions (hwd / cm) | 6.50 x 23.01 x 20.04 |
| Shipping Weight (kg) | 0.55 |
| Unit Dimensions (hwd / mm) | 26 x 243 x 75 |
| Unit Packaging Type | Box |
| Unit Weight (kg) | 0.50 |
| Operating Temperature Range | 32° to 113°F (0° to 45°C) |
| Storage Temperature Range | 14° to 176°F (-10° to 80°C) |
| Relative Humidity | 10% to 85% RH, Non-Condensing |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Operating Humidity Range | 10% to 85% RH (No Condensation) |
| Storage Humidity Range | 5% to 90% RH (No Condensation) |
| Power Provided to Connected Device(s) | 10W |
| ESD Protection | +/- 8kV (air-gap discharge); +/- 4kV (contact discharge) |
| Hotkey | Yes |
| IP Remote Access | No |
| IR Remote Extension Support | Yes |
| USB Hub Ports | Yes |
| Number of USB Hub Ports | 4 |
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| NIAP-Certified Secure | No |
| Number of Users | 1 |
| Autoscan (Y,N) | Y |
| On-Screen Display (OSD) | No |
| Port Selection | Hotkey; Mouse; Pushbutton; Remote Selector |
| Displayport Specification | 1.4 |
| HDCP Specification | 1.4; 2.2 |
| Driver Required | No |
| Autoscan Duration | 5 to 999 seconds |
| Common Access Card (CAC) Support | No |
| External Power Supply Certifications | CCC; UL; cUL |
| Product Compliance | RoHS; CE (Europe); REACH; FCC (USA) |
| Product Warranty Period (Worldwide) | 3-year limited warranty |
