Supports both 4K UHD and 4K DCI resolutions @ 60 Hz for superior video quality
Dual USB 3.2 Gen 1 hub ports let you share USB peripherals with all computers
Push buttons, hotkeys and remote port selector allow easy toggling between computers
Dual-monitor support enables convenient multitasking and increased productivity
Works with all major operating systems, including Windows, macOS and Linux
Features
Connects Four Computers to Two 4K Monitors and a Single Keyboard/Mouse This dual-monitor KVM switch lets you access, control, boot and reboot four computers or other devices with HDMI ports and switch back and forth among them. It’s ideal for work-from-home applications in which you’d like to share two monitors between your home and work computers. All connected computers share two HDMI 4K monitors and one USB keyboard/mouse, which saves space on your desk or workspace.

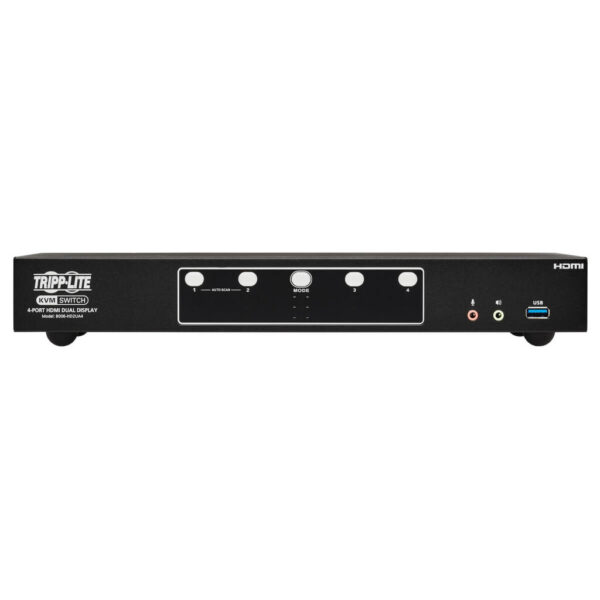

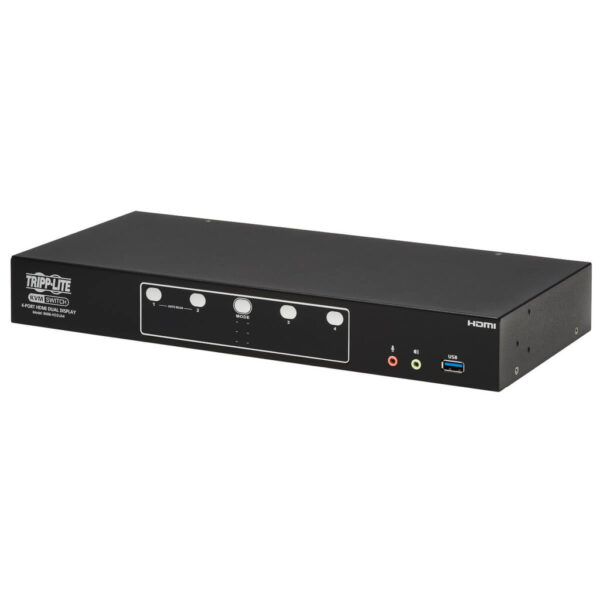

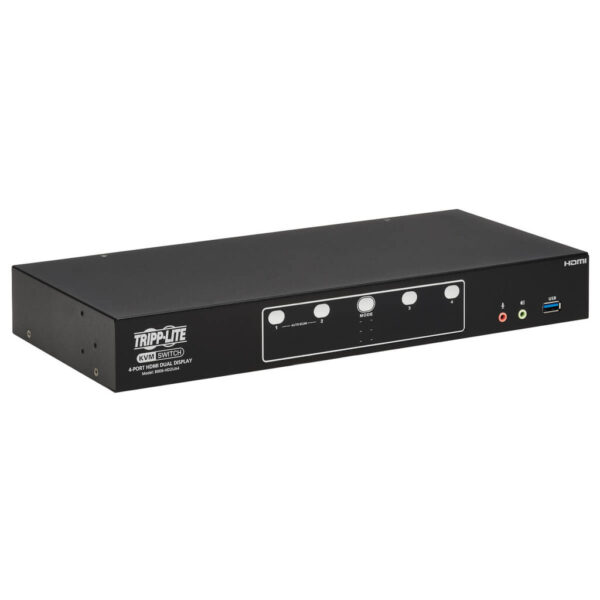

Switching Between Computers Is Fast and Easy Use the front-panel push buttons, hotkey commands, mouse movement, RS-232 commands or the included remote port selector for quick and easy toggling among computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected.
Transmits Crystal-Clear 4K Video with Digital Audio The B006-HD2UA4 supports video resolutions up to 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz) on two HDMI monitors, as well as 2.1-channel surround sound for music, movies and games. Independent audio switching lets you listen to music or a podcast on one computer, while simultaneously working on a different computer. Front-panel audio jacks have priority over the rear-panel jacks. A DCC (Daisy Chain Control) port lets you connect two B006-HD2UA4 KVM switches for a quad-display installation.
USB Hub Lets You Share Peripherals between Computers Two USB 3.2 Gen 1 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. This lets you avoid the expense and clutter of separate USB hubs. The USB-A ports support data transfer speeds up to 5 Gbps and are backward compatible with previous USB generations.

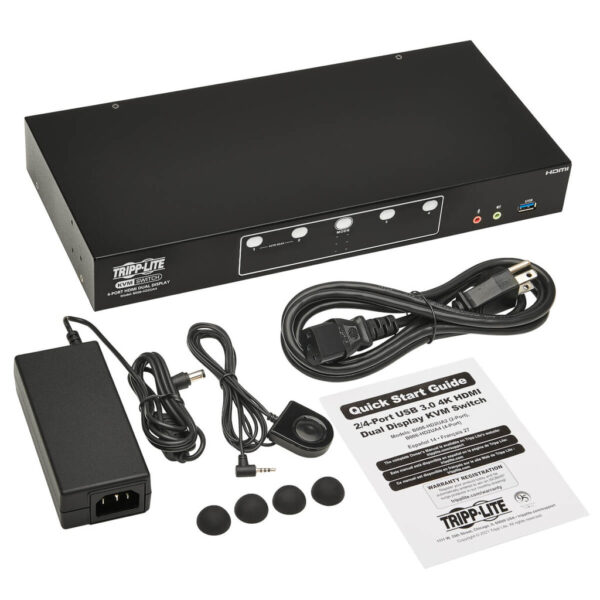

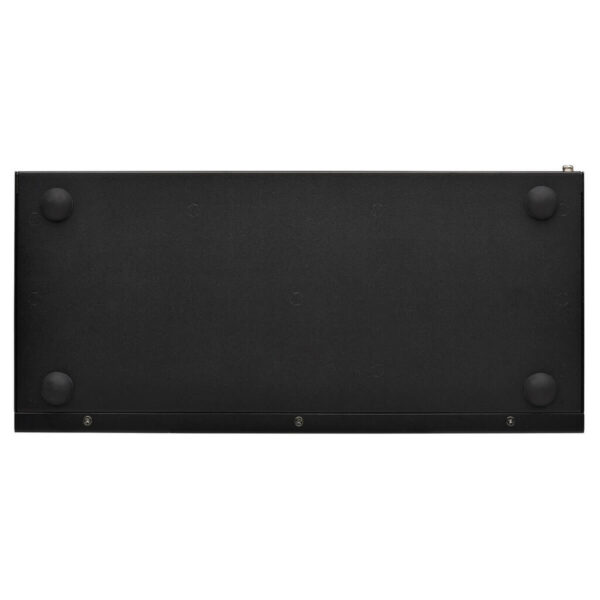

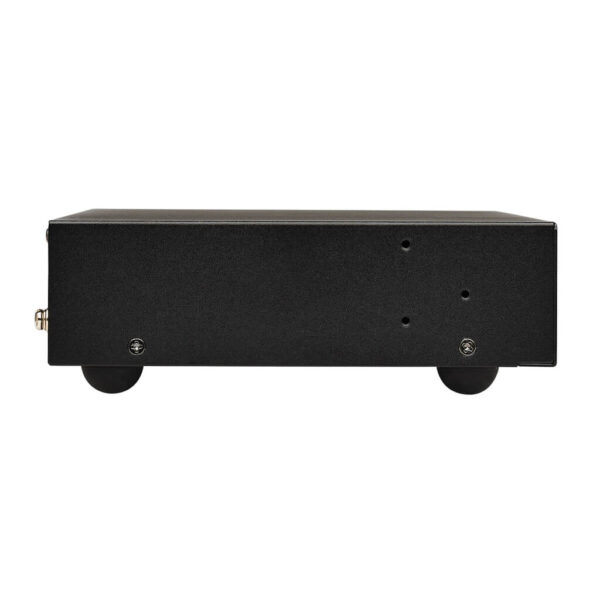

Designed for Convenient Mounting The heavy-duty metal housing can be placed on a desktop or other level surface that can safely support the weight of the KVM switch and attached cables. The included DC power supply connects to any standard AC power source.
System Requirements
HDMI monitors
USB mouse/keyboard
Computers with HDMI and USB-A ports (audio ports optional)
Windows 7 or 10, macOS 10 or higher, Linux with kernel .15 or higher
4K UHD @ 60Hz (3840 x 2160); 4K DCI @ 60Hz (4096 x 2160)
Max Number of Ports (Entire Chain)
4
Extended Mode
Yes
Mirror Mode
Yes
Audio Specification
HD Audio
AC Power Adapter Plug(s)
IEC-320-C14
AC Power Adapter Input Specs (V / Hz / A)
100-240V / 50/60Hz / 1.2A
AC Power Adapter Output Specs (V / A)
12V / 3.33A
AC Power Adapter Cord Length (ft.)
3.93
AC Power Adapter Cord Length (m)
1.2
Power Source Type
AC Adapter with detachable power cord
DC Barrel Plug
OD: 5.5 x 2.5 x 9.5mm, Positive Pin, Negative Sleeve
Power Consumption (Watts)
3.17
Computer/Server Ports
HDMI, USB, 3.5mm Audio Jack (Audio), 3.5mm Audio Jack (Mic)
Daisy-Chain Port
No
Firmware Upgrade Port
No

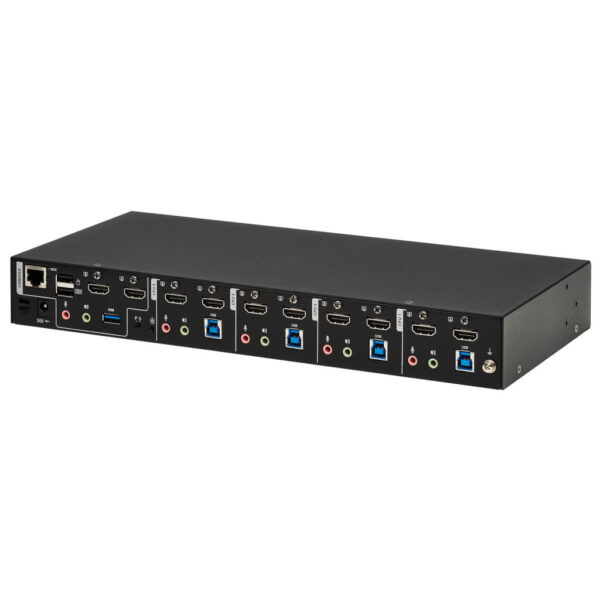

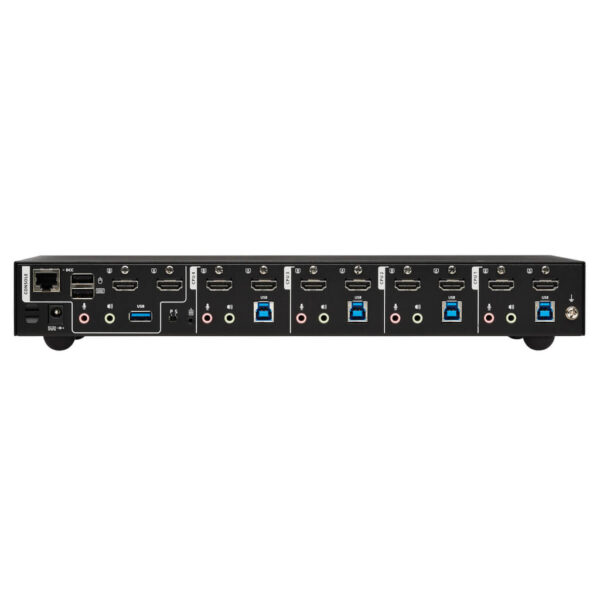

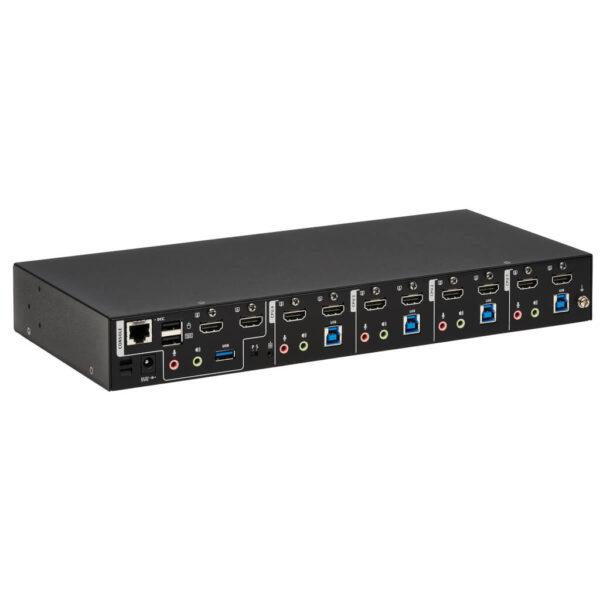

PC/Server Connections
HDMI
Side A - Connector 1
(8) HDMI (FEMALE)
Side A - Connector 2
(4) USB B (FEMALE)
Side A - Connector 3
(8) 3.5MM (FEMALE)
Side B - Connector 1
(2) HDMI (FEMALE)
Side B - Connector 2
(4) USB A (FEMALE)
Side B - Connector 3
(4) 3.5MM (FEMALE)
Side B - Connector 4
RJ45 (FEMALE)
Computer Keyboard and Mouse Interface
USB
Computer Monitor Interface
HDMI
LED Indicators
Solid White – Current KVM, Audio or USB Link Half-lit White – KVM, Audio or USB Link Connected Dimmed White – Audio or USB Link Connected but not focused
