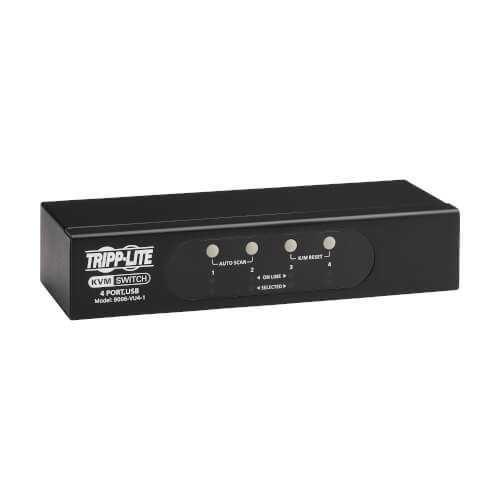

Tripp Lite series 4-Port VGA KVM Switch for USB or PS/2 Keyboard/Mouse
$198.64
Tripp Lite series 4-Port VGA KVM Switch for USB or PS/2 Keyboard/Mouse
Manufacturer Warehouse: 665 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Supports VGA video resolutions up to 2048 x 1536 (DDC2B)
- Push buttons and hotkeys allow fast, easy toggling between connected computers
- Auto Scan mode lets you monitor connected computers without switching to them
- Easy plug-and-play installation with no software or external power required
- Works with all major operating systems, including Windows, macOS and Linux
Features
Connects 4 Computers to a VGA Monitor and a Single Keyboard/Mouse
This single-monitor KVM switch lets you connect as many as four computers, which you can access and control by toggling between them. All connected computers share one VGA monitor and one USB or PS/2 keyboard/mouse, which saves space on your desk or workspace. The B006-VU4-1 supports video resolutions up to 2048 x 1536 (DDC2B).
Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands or connected mouse for quick and easy switching among computers. You can also use the Auto Scan feature to scan all connected computers automatically in five-second intervals. LEDs indicate which computer is currently selected. Computers may be added, removed or replaced without disconnecting or rebooting other connected computers.
Simple Plug-and-Play Installation and Operation
The heavy-duty metal housing can be placed on a desktop or other level surface that safely supports the weight of the KVM switch and attached cables. It requires no extra software, external power or other complicated setup procedures. It works with any computer with an available VGA port (the P778-006 cable kit is recommended) and USB or PS/2 port.
System Requirements
- VGA monitor
- USB or PS/2 keyboard and mouse
- Computer(s) with VGA output and USB-A or 6-pin Mini-DIN PS/2 ports
- Major operating system, including Windows (up to 7), macOS (9.0 to 10.6), Linux and UNIX
Package Includes
- B006-VU4-1 4-Port VGA KVM Switch
- Quick Start Guide
| Weight | 1.918 lbs |
|---|---|
| Dimensions | 6.299 × 2.322 × 9.409 in |
| UPC Code | 037332279804 |
| Number of Ports | 4 |
| Brand | |
| Max CPU | 4 |
| Technology | PS/2; USB; VGA/SVGA |
| Number of Monitors Supported | 1 |
| Max Supported Video Resolution | 2048 x 1536 @ 60 Hz; DDC2B |
| Max Number of Ports (Entire Chain) | 4 |
| Extended Mode | No |
| Mirror Mode | No |
| Redundancy - Dual Power Inputs | No |
| Bus Powered | Yes |
| Power Consumption (Watts) | 0.87 |
| Computer/Server Ports | SPHD-18 (VGA, PS/2, USB) |
| Daisy-Chain Port | No |
| Firmware Upgrade Port | No |
| PC/Server Connections | PS/2; USB; VGA |
| Side A - Connector 1 | (2) 6 PIN (FEMALE); (1) HD15 (FEMALE); (2) USB A (FEMALE) |
| Side B - Connector 1 | (4) HD18 (FEMALE) |
| Computer Keyboard and Mouse Interface | PS/2; USB |
| Computer Monitor Interface | VGA |
| Console Keyboard and Mouse Interface | PS/2; USB |
| Console Monitor Interface | VGA |
| LED Indicators | Online (4 LEDs) Port 1 Online (Orange) indicate that the computer attached to the corresponding port is up and running Port 2 Online (Orange) indicate that the computer attached to the corresponding port is up and running Port 3 Online (Orange) indicate that the computer attached to the corresponding port is up and running Port 4 Online (Orange) indicate that the computer attached to the corresponding port is up and running Selected (4 LEDs) Port 1 Online (Green) indicate that the computer attached to its corresponding port is the one that has the KVM focus Port 2 Online (Green) indicate that the computer attached to its corresponding port is the one that has the KVM focus Port 3 Online (Green) indicate that the computer attached to its corresponding port is the one that has the KVM focus Port 4 Online (Green) indicate that the computer attached to its corresponding port is the one that has the KVM focus |
| Color | Black |
| Material of Construction | Metal |
| Shipping Dimensions (hwd / cm) | 23.90 x 5.90 x 16.00 |
| Shipping Weight (kg) | 0.87 |
| Unit Dimensions (hwd / cm) | 1.65 x 2.93 x 7.87 |
| Unit Weight (kg) | 0.77 |
| Operating Temperature Range | 32° to 122°F (0° to 50°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Relative Humidity | 0-80% non-condensing |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| BTUs | 13 |
| Hotkey | Yes |
| Port Control | Push Buttons, Hotkeys, OSD Mouse Switching |
| IP Remote Access | No |
| USB Hub Ports | No |
| NIAP-Certified Secure | No |
| Number of Users | 1 |
| Autoscan (Y,N) | Y |
| On-Screen Display (OSD) | No |
| Port Selection | Hotkey; Mouse; Pushbutton |
| Driver Required | No |
| Autoscan Duration | 3, 5, 10, 20 secs. (5 secs. default) |
| Modem Port | No |
| Product Compliance | CE (Europe); FCC (USA); RoHS; UKCA; WEEE |
| Product Warranty Period (Worldwide) | 3-year limited warranty |
