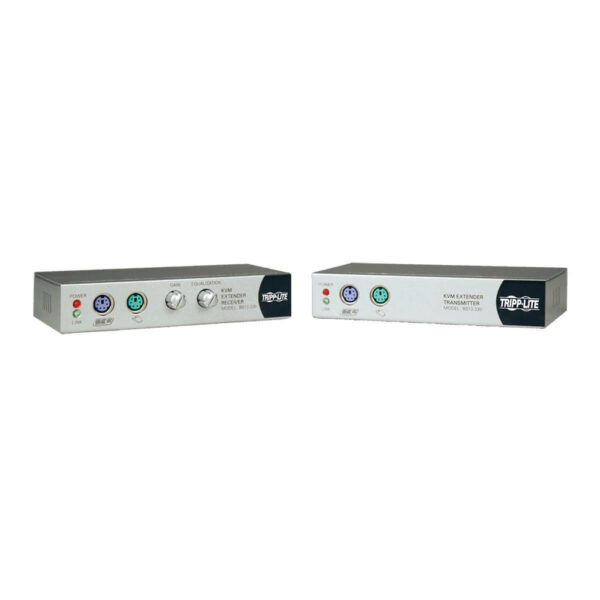

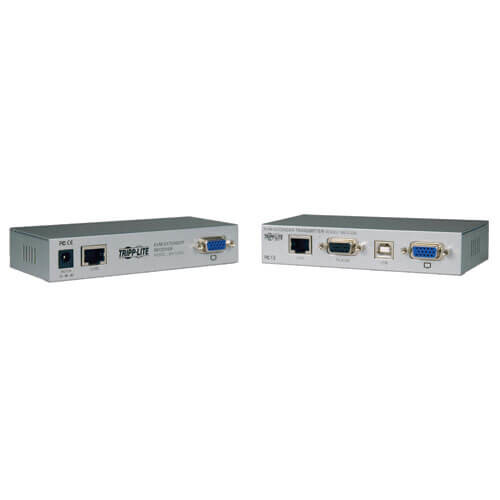

Tripp Lite series Cat5e KVM Console Extender Kit
$255.99
Tripp Lite series Cat5e KVM Console Extender Kit
Manufacturer Warehouse: 45 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Manage a PS/2 or USB computer/KVM switch from a remote location up to 330ft (100m) away
- Use readily available Cat5e cable for interconnection
Features
- Enables you to control a PS/2 or USB computer/KVM switch from a distance of up to 330ft (100m) away.
- Can control the computer or KVM switch via both Local and Remote Consoles.
- The remote connection is made using standard Cat5e cable
- Display mode of 1600 x 1200 @ 60Hz
- Shielded Cat5e cables provide better transmission integrity
Package Includes
- Transmitter and Receiver Unit (1 each)
- 3-ft. PC/KVM Cable Kit (1)
- Power Adapter (DC9V, 1A) for Receiver Unit (1)
- 4-ft. (1.22 m) USB A-B Cable (1)
- Quick Start Guide
| Weight | 2.6 lbs |
|---|---|
| Dimensions | 8 × 6.9 × 5.4 in |
| UPC Code | 037332143419 |
| Cord Length | 4.92 |
| Number of Ports | 1 |
| Brand | |
| Accessory Type | Extender Kit |
| Technology | PS/2; VGA/SVGA |
| Accessory Class | KVM Switch Accessories |
| Product Overview | Cat5e KVM Console Extender Kit |
| Max Supported Video Resolution | 1600 x 1200 @60Hz |
| HDR Support | No |
| AC Power Adapter Plug(s) | NEMA 1-15P North America |
| AC Power Adapter Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 1A |
| AC Power Adapter Output Specs (V / A) | 9V / 1.33A |
| AC Power Adapter Cord Length (ft.) | 5 |
| AC Power Adapter Cord Length (m) | 1.5 |
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
| Power Source Type | AC Adapter |
| Power Over Cable (PoC) Support | No |
| DC Barrel Plug | OD: 5.5 x 2.1 x 9.5mm, Positive Pin, Negative Sleeve |
| Power Consumption (Watts) | 3.5 |
| Side A - Connector 1 | (2) HD15 (FEMALE) |
| Side A - Connector 2 | RJ45 (FEMALE) |
| Side A - Connector 3 | USB B (FEMALE) |
| Side A - Connector 4 | (2) MINI DIN-6 (FEMALE) |
| Side B - Connector 1 | HD15 (FEMALE) |
| Side B - Connector 2 | RJ45 (FEMALE) |
| Side B - Connector 3 | (2) MINI DIN-6 (FEMALE) |
| Computer Keyboard and Mouse Interface | PS/2; USB |
| Computer Monitor Interface | VGA |
| Console Keyboard and Mouse Interface | PS/2 |
| Console Monitor Interface | VGA |
| Connector Plating | Nickel |
| LED Indicators | Red (Power); Green (Link) |
| Color | Silver |
| Material of Construction | Steel |
| Receiver Unit Dimensions (hwd / in.) | 1 x 5.2 x 2.6 |
| Receiver Unit Weight (lbs.) | 1.3 |
| Shipping Dimensions (hwd / cm) | 13.72 x 17.53 x 20.32 |
| Shipping Weight (kg) | 1.18 |
| Transmitter Unit Dimensions (hwd / in.) | 1 x 5.2 x 2.6 |
| Transmitter Unit Weight (lbs.) | 1.3 |
| Unit Packaging Type | Box |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Relative Humidity | 0-90% non-condensing |
| BTUs | 11.9 BTU/Hr |
| IR Remote Extension Support | No |
| RS-232 Serial Extension Support | No |
| Recommended Category Cable | Cat5/Cat5e Cables |
| External Power Supply Certifications | FCC; UL; cUL; TUV; CB |
| Product Compliance | RoHS; CE (Europe); REACH; FCC (USA) |
| Product Warranty Period (Worldwide) | 3-year limited warranty |
| WEXT1C | Extended Warranty and Technical Support for Select Products – DC Power, KVM, PDU, Inverters, Power Management |
| WEXT2C | Extended Warranty and Technical Support for Select Products – DC Power Supplies, KVM Switches, PDUs, Power Inverters, Power Management |
| WEXT3C | Extended Warranty and Technical Support for Select Products – Cables and Connectivity, DC Power Supplies, KVM Switches, PDUs, Power Inverters |
