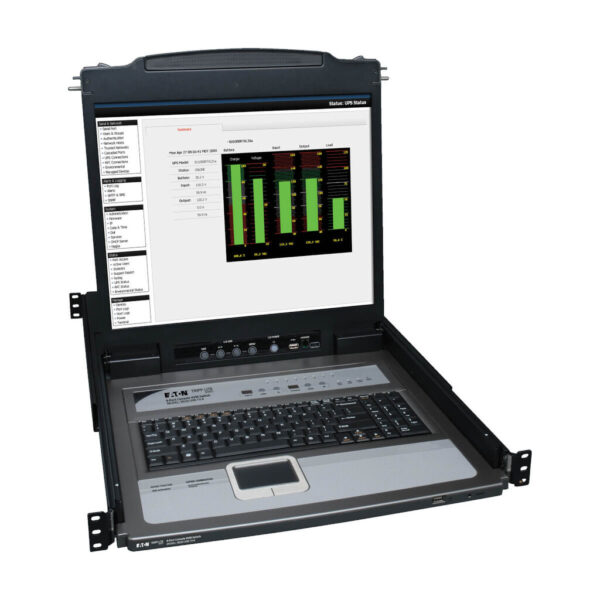

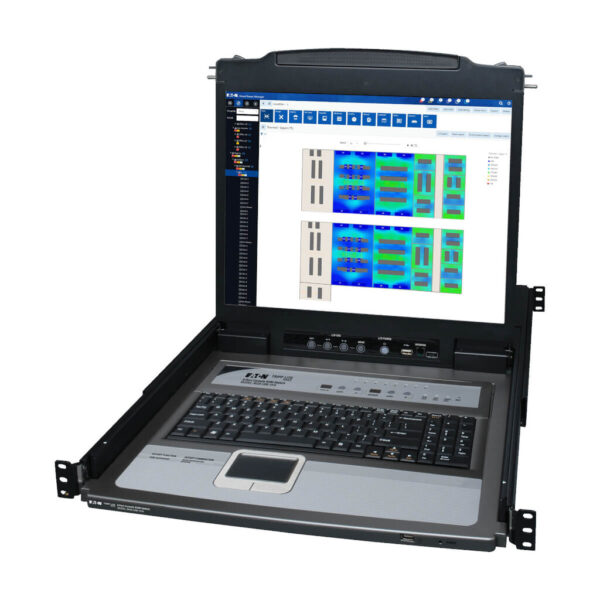

Tripp Lite series NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables

Quick Specs

• Occupies just 1U of space in a rack-mountable drawer
• 19” LCD screen supports video resolutions up to 1280 x 1024
• Simplifies IT tasks with easy switching between all 8 ports
• Provides 2-level password security (administrator and user)
• Combo cables (included) connect to PS/2 or USB servers

Features

Saves Space and Money

• Combines an 8-port KVM switch, 19” LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer
• Mounts into 19”-wide rack, 26”-38” deep
• Control up to 8 servers from a single, easily accessible console – ideal when rack space is at a premium
• Includes eight P778-Series cables that support computers with either PS/2 or USB connections
• Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use
• Eliminates need to buy costly separate monitors, keyboards and mice for each computer/server

Simplifies IT Tasks

• Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
• Hot pluggable; add or remove computers without having to power down the switch
• Auto-scan mode automatically sequences through all active ports that are accessible to the user

Large 19” LCD

• Extra-wide display makes multitasking easier
• Supports video resolutions up to 1280 x 1024
• DDC emulation allows optimal output to the LCD

Multi-Level Password Security

• Enhances security by limiting access to an administrator and up to 4 local users
• Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

• Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches
• A console cable kit is included so you can connect the external console port to a keyboard, mouse or monitor, or a B051-000 IP Remote Access Unit
• An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral such as a flash drive or external hard drive with all the connected servers
• Compatible with all major operating systems for easy integration into your existing structure
• Firmware is upgradable with included cable and utility
• Heavy-duty steel housing stands up to frequent use

System Requirements

• Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports
• P778-006 USB/PS2 combo KVM cable kit is required for each connected computer/server
• Compatible with all major operating systems
• Power consumption: 120V, 60Hz, 28.5W; 230V, 50Hz, 29.1W

Package Includes

• B020-U08-19-K 1U rackmount console KVM switch with 19” LCD
• (x8) P778-006 6-ft. (1.83 m) USB/PS2 combo KVM cable kits
• USB/PS2 combo console cable kit
• RJ11 to DB9 firmware upgrade cable
• C13 to 5-15P power cord
• Grounding wire
• Rackmount hardware
• Quick start guide
