Tripp Lite series NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD

Quick Specs

• Controls up to 16 computers remotely via LAN, WAN or Internet
• Installs in just 1U to save rack space
• Works with all major operating systems and browsers
• Protects data with 3 security levels (Admin, User and Select)
• Enables up to 64 secure user accounts

Features

Complete Control from Anywhere

• Built-in IP access lets you control up to 16 computers directly from the next room, next door, or the next continent
• Remotely access computers via LAN, WAN or the Internet via Windows or Java
• Panel Array Mode allows remote monitoring of multiple ports at the same time
• Windows- and Java-based applications provide access without a browser
• Advanced on-screen display supports video resolutions up to 1280 x 1024 (@ 75 Hz) at the built-in 19-inch monitor and up to 1600 x 1200 (@ 60 Hz) at the remote console

Built-In Security to Keep Your Data Safe

• 3 levels of security (Admin, User and Select) allow you to delegate proper access
• Create up to 64 separate user accounts
• Features advanced encryption technologies, such as 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL
• Supports RADIUS and LDAP/S remote authentication
• LEDs indicate when a computer is connected, powered on and selected
• Included firmware upgrade cable keeps the software up to date

Versatile to Meet Your Specific Needs

• Increase the number of connected computers up to 264 by daisy-chaining up to 31 B020-U08 KVM switches.
• Compatible with all major operating systems
• User-friendly web management interface can be displayed in English, Spanish, French, German or Italian
• Included P778-Series cable kits let you use either USB or PS/2 keyboards and mice
• Supports both IPv4 and IPv6, as well as Link Local IPv6 Address and IPv6 Stateless Auto Configuration protocol
• External USB 1.1 port lets you add a flash drive or card reader to share external data among connected computers

Keep Your Colleagues in the Loop

• Windows-based log server records events and saves them to a searchable database
• Users who are logged in simultaneously can communicate via message board and manage port access

Rack-Mounted Convenience

• LCD folds down so the unit mounts into just 1U of rack space
• Mounts in racks from 26 in. to 38 in. deep
• Rugged steel housing and premium connectors built to last
• Console locks into place when not in use to prevent sliding out of the rack

System Requirements

• Any major operating system
• Any major web browser
• Pentium III 1 GHz processor
• DirectX 7.0 or higher (Windows) or Java 2 1.4.2 or higher (Java)
• Network transfer speed of 128 Kbps or higher
• HD15 port
• USB or PS/2 keyboard/mouse ports

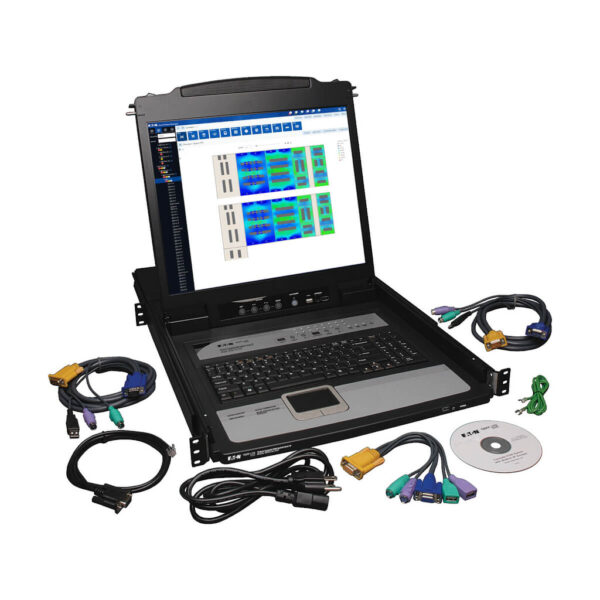

Package Includes

• B020-U16-19-IP NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch
• (2) P778-Series USB/PS2 combo KVM cable kits, 6-ft. (1.83 m)
• USB/PS2 combo external console cable kit
• Grounding wire
• RJ11 to DB9 firmware upgrade cable
• C13 to NEMA 5-15P power cord
• Mounting hardware
