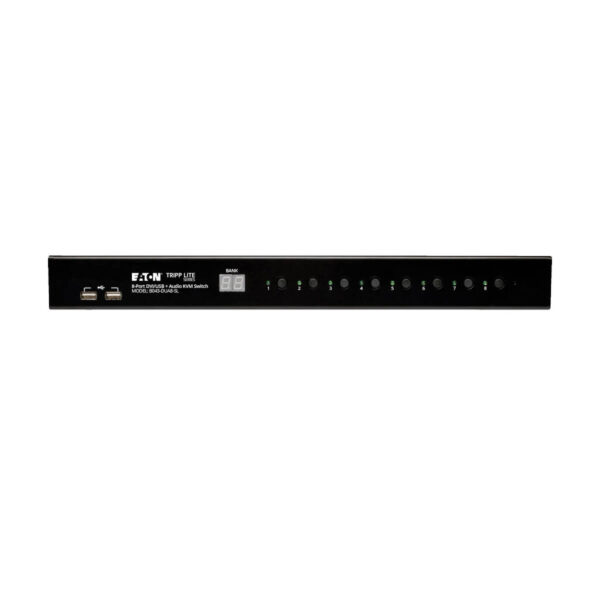

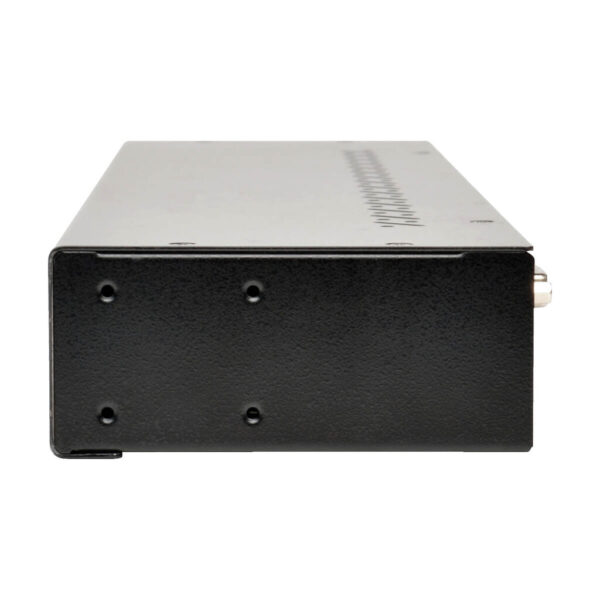

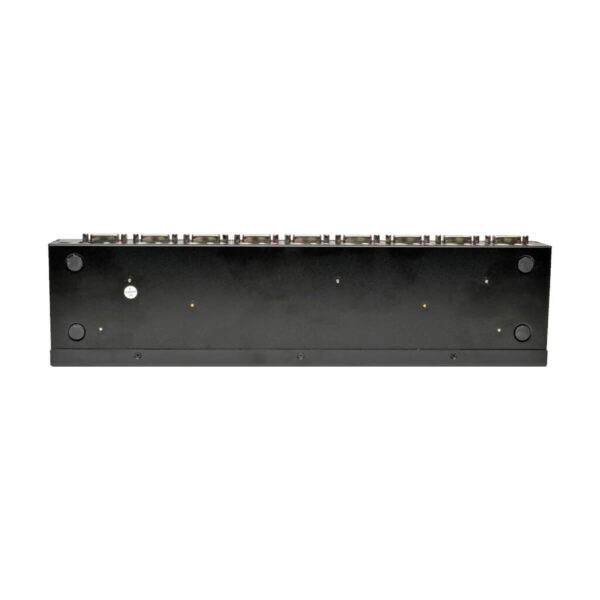

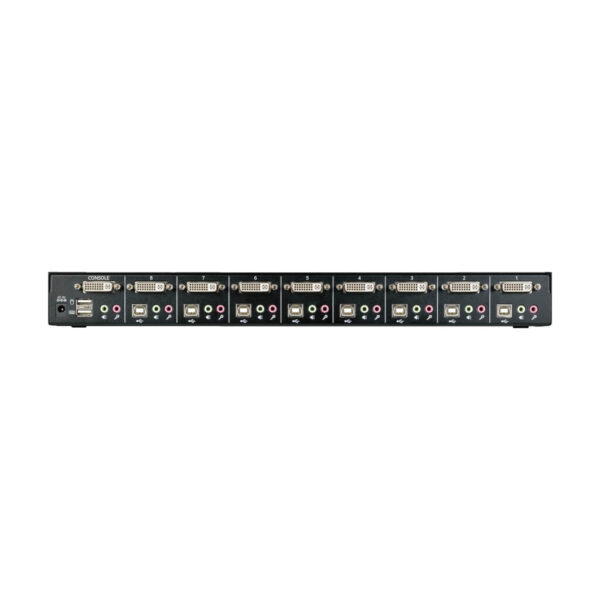

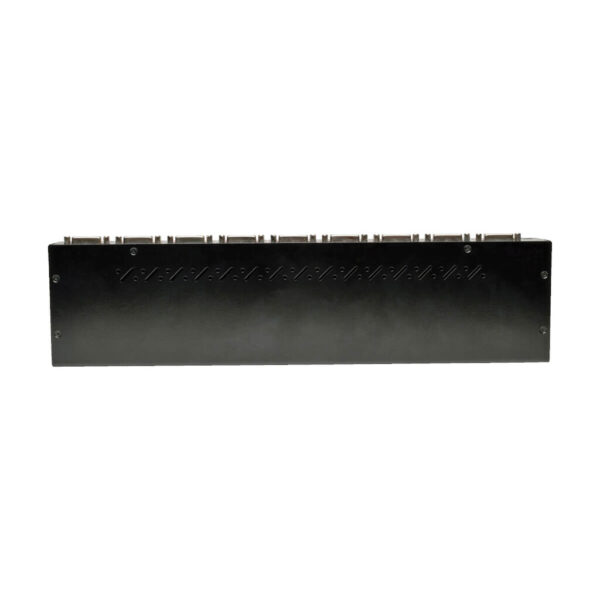

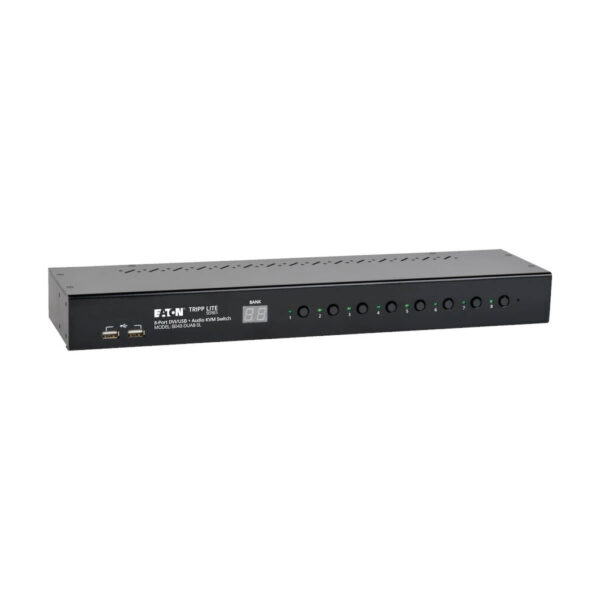

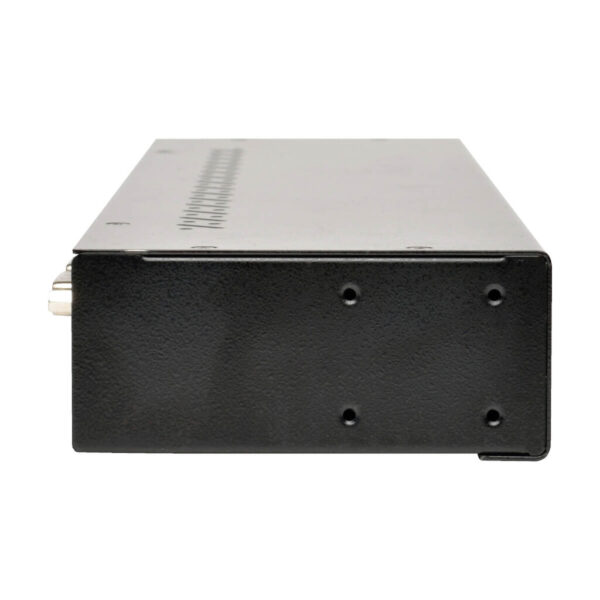

Tripp Lite series 8-Port 1U Rack-Mount DVI / USB KVM Switch with Audio and 2-port USB Hub

Tripp Lite series 8-Port 1U Rack-Mount DVI / USB KVM Switch with Audio and 2-port USB Hub

Name: Tripp Lite series 8-Port 1U Rack-Mount DVI / USB KVM Switch with Audio and 2-port USB Hub
Brand: Tripp Lite
SKU: B043-DUA8-SL
Price: 1027.33 CAD
Availability: InStock

$1,027.33

Brand: Tripp Lite

Part Number (MPN): B043-DUA8-SL

UPC / GTIN: 037332182395

Datasheet: PDF

Tripp Lite series 8-Port 1U Rack-Mount DVI / USB KVM Switch with Audio and 2-port USB Hub

Manufacturer Warehouse: 21 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

NetController 8-Port, 1U rackmount KVM switch
Control 8 computers via a single DVI monitor and USB keyboard/mouse
Control up to 64 computers by cascading up to 8 additional B043-DUA8-SL KVM switches
Compatible with all major operating systems

Overview

The B043-DUA8-SL NetController 8-Port, 1U rack-mount DVI/USB/Audio KVM Switch is a highly-flexible enterprise-class KVM Switch. Control up to eight directly connected computers, or expand the number of connected computers to 64 by cascading up to eight additional B043-DUA8-SL KVM switches. Switch between connected computers via push buttons or keyboard hotkey commands. Other features include: Audio Support, 2-port USB hub for peripheral sharing among switched computers and DVI Single-Link resolutions at 1920 x 1200. Mounts easily in a standard 19-inch rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing.

Features

Directly connect up to 8 computers with DVI, USB, and audio.
Expand the number of connected computers by cascading an additional level of KVM switches.
Supports 2.1 Channel Stereo Audio and microphone.
(x2) USB 2.0 ports for sharing peripherals among connected computers.
USB hub functionality can be unbinded from the KVM, allowing users to access one computer while the USB hub focus remains on another computer.
Switch between connected computers via pushbuttons or hotkey commands.
DVI-I Single-Link supports digital video resolutions up to 1920 x 1200, and analog video resolutions up to 2048 x 1536.
Auto Scan mode lets users scan connected computers without having to manually switch between them.
Multi-platform support – compatible with all major operating systems.
Plug and play setup – no software installation required.
Supports EDID (Extended Display Identification Data) transmission to connected computers for optimal display performance.
Supports HDMI and VGA monitors with appropriate adapters…see “System Requirements”
Includes mounting hardware for 19” rackmount installations.
Power supply includes international plug adapters (North America, Europe, U.K. and Australia)

System Requirements

DVI , HDMI*, or VGA** monitor
USB mouse and keyboard
Computer with a DVI or VGA* port
Computer with a USB port
P759-Series DVI-D/USB/Audfor each connected computer
Microphone with a 3.5 mm Male connector (if using the microphone feature)
Speakers with a 3.5 mm Male connector (if using the speaker feature)
Compatible with all major operating systems

*Requires DVI to HDMI adapter
**Requires a DVI to VGA adapter

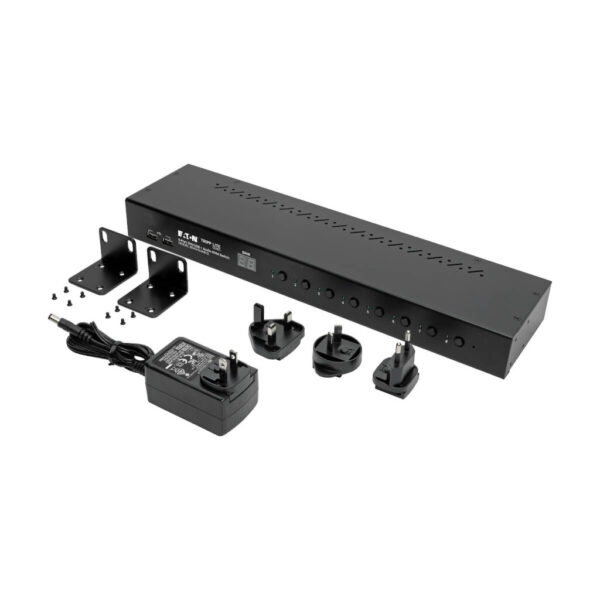

Package Includes

B043-DUA8-SL KVM Switch
External Power Supply (Input: 100-240V, 50/60Hz, 0.8A; Output: 9V, 2A)
International plug adapters (North America, Europe, U.K. and Australia)
Rackmount Hardware
Owner’s Manual

Weight	4.9 lbs
Dimensions	11.5 × 17.3 × 2.8 in
UPC Code	037332182395
Cord Length	4.92
Number of Ports	8
Brand	Tripp Lite
Max CPU	64
Technology	DVI; Stereo Audio; USB 2.0 (High Speed)
Max Supported Video Resolution	1920 x 1200 @60 Hz
Max. Distance (Between any 2 Units)	15ft (4.6m)
Max Number of Ports (Entire Chain)	64
Audio Specification	Stereo Audio
AC Power Adapter Plug(s)	NEMA 1-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
AC Power Adapter Input Specs (V / Hz / A)	100-240V / 50/60Hz / 1A
AC Power Adapter Output Specs (V / A)	9V / 2A
AC Power Adapter Cord Length (ft.)	5
AC Power Adapter Cord Length (m)	1.5
Voltage Compatibility (VAC)	100; 110; 120; 127; 200; 208; 220; 230; 240
Power Source Type	AC Adapter
AC Adapter	Input: 100-240V, 50/60Hz, 0.8A / Output: 9V, 2A
DC Barrel Plug	OD: 5.5 x 2.1 x 9.5mm, Positive Pin, Negative Sleeve
Power Consumption (Watts)	8.7
Daisy-Chain Port	No
Firmware Upgrade Port	Yes
PC/Server Connections	DVI; USB
Side A - Connector 1	(8) DVI-I (FEMALE)
Side A - Connector 2	(8) USB B (FEMALE)
Side A - Connector 3	(16) 3.5MM (FEMALE)
Side B - Connector 1	DVI-I (FEMALE)
Side B - Connector 2	(2) USB A (FEMALE)
Side B - Connector 3	(2) 3.5MM (FEMALE)
Included Cable (Side A) - Connector 1	No
Computer Keyboard and Mouse Interface	USB
Computer Monitor Interface	DVI-I Single-Link
Console Keyboard and Mouse Interface	USB
Console Monitor Interface	DVI-I Single-Link
Connector Plating	Nickel
LED Indicators	Green (Selected PC)
Color	Black
Material of Construction	Steel
Rackmountable	Yes
Shipping Dimensions (hwd / cm)	7.11 x 43.94 x 29.21
Shipping Weight (kg)	2.22
Unit Packaging Type	Box
Unit Weight (kg)	1.80
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Relative Humidity	0-90% non-condensing
BTUs	29.7 BTU/Hr
ESD Protection	Yes
Hotkey	Yes
IP Remote Access	No
EDID Compatible	Yes
Daisy-chainable or Cascadable	Cascadeable
USB Hub Ports	Yes
Number of USB Hub Ports	2
USB Specification	USB 2.0 (up to 480 Mbps)
NIAP-Certified Secure	No
Number of Users	1
Autoscan (Y,N)	Y
On-Screen Display (OSD)	No
Port Selection	Pushbutton; Hotkey
Driver Required	No
Autoscan Duration	10 to 60 seconds
External Power Supply Certifications	CE; FCC; RoHS; TUV; UL
Product Compliance	RoHS; CE (Europe); REACH; FCC (USA)
Product Warranty Period (Worldwide)	3-year limited warranty
WEXT1G	Extended Warranty and Technical Support for Select Products – KVM, PDUs, Inverters
WEXT2G	Extended Warranty and Technical Support for Select Products – KVM Switches, PDUs, Power Inverters
WEXT3G	Extended Warranty and Technical Support for Select Products – KVM, PDUs, Power Inverters
