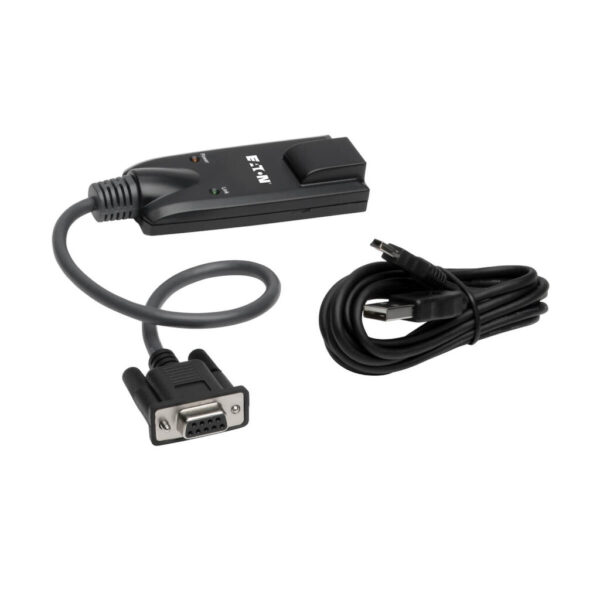

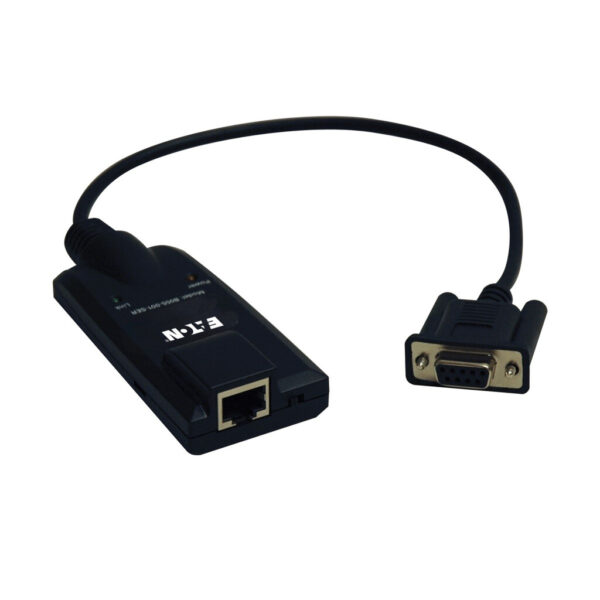

Tripp Lite series NetDirector Serial Server Interface Unit (B064-Series), TAA

Quick Specs

• Needed to connect to a DB9 male serial port on a server to a B064-Series NetDirector KVM switch via Cat5e/6 cable
• Easy to install; no software needed
• Allows a maximum distance of 492 ft. (150 m.) from KVM to serial port via Cat5e/6 cable
• Compact and lightweight design
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Overview

This Serial Server Interface Unit connects the DB9 male serial port on a server to a B064-Series NetDirector KVM switch using Cat5e/6 cabling. Use of Cat5e/6 cables frees up space in server cabinets that would otherwise be filled by traditional, bulkier KVM cable kits. Includes a USB cable for powering the unit. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Note: SIUs that were purchased prior to that of your KVM switch may require a firmware upgrade in order for them to work properly (see Maintenance under OSD Operation section in your B064-Series KVM Owner’s Manual for details).

Features

• Eliminates the need for thicker, heavier KVM cable kits
• Compact, lightweight design
• Plug and Play; no software required
• Includes a USB cable to power the unit
• Supports VT100 serial emulation
• 492 ft. (150 m.) distance from KVM switch
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

• Server or CPU with a DB9 male serial connector
• A B064-Series NetDirector Cat5 KVM Switch
• Cat5e/6 cable

Package Includes

• B055-001-SER SIU
• USB Cable to power the unit
