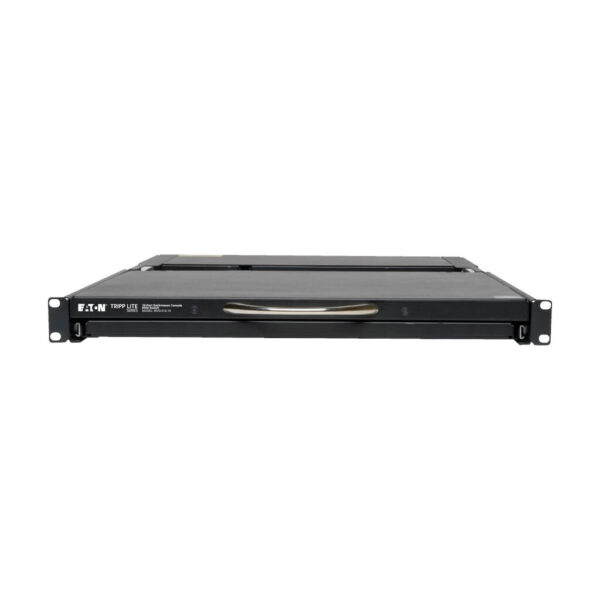

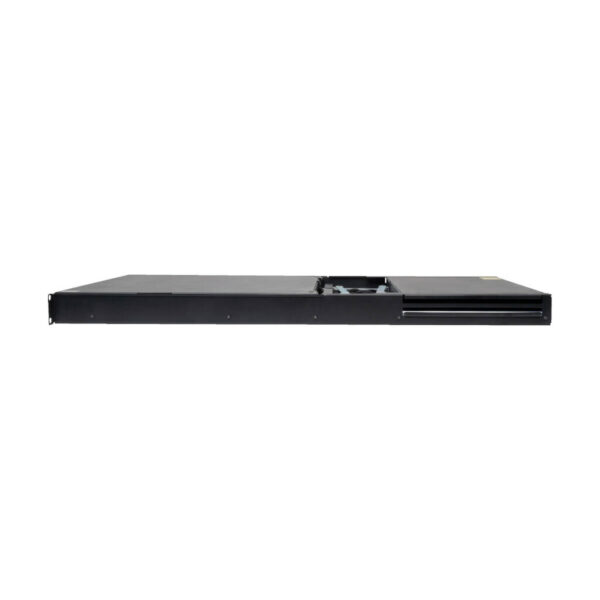

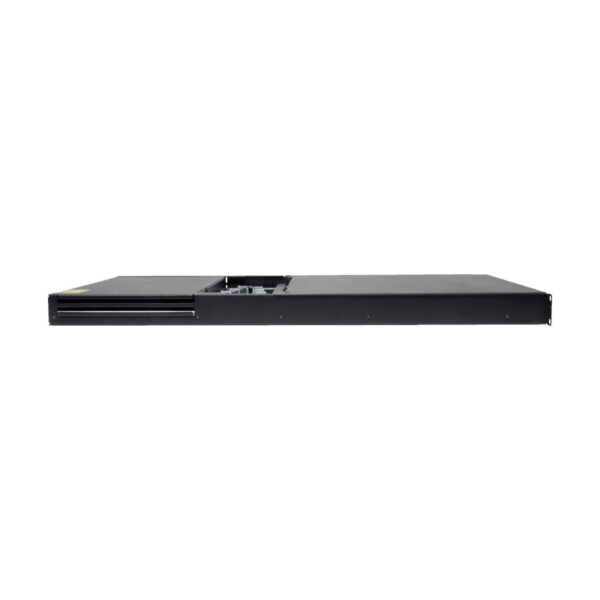

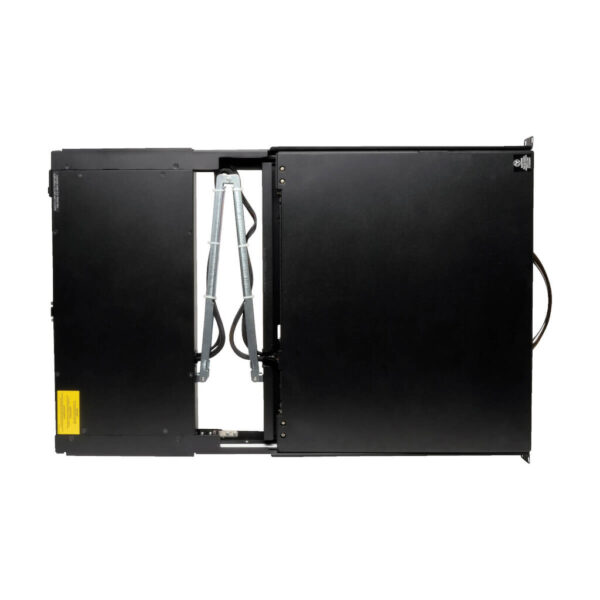

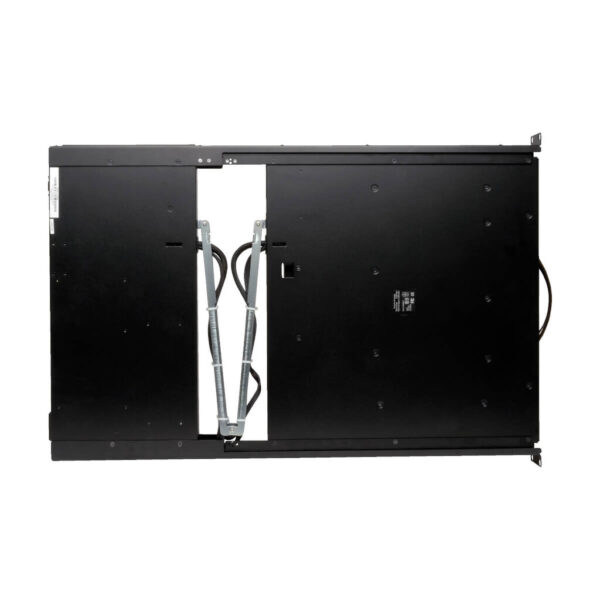

Tripp Lite series NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD, TAA

Quick Specs

• Occupies just 1U of space in a rack-mountable drawer
• Low-cost Cat5 cabling allows longer distances, reduces cable clutter
• 19” LCD screen supports video resolution up to 1366 x 768
• Simplifies IT tasks with easy switching between all 16 ports
• Expandable – Cascade a second level of KVM switches to control up to 256 servers from a single station using B072-008-1, B072-008-1A, B072-016-1 and/or B072-016-1A to increase the number of ports.
• TAA compliant for GSA Schedule purchases

Overview

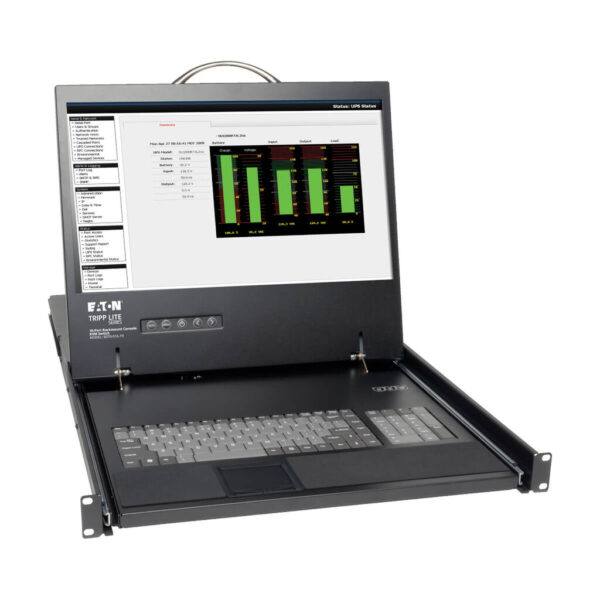

This B070-016-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers.

The B070-016-19 uses inexpensive, user-supplied Cat5e/6/6a cabling and a Server Interface Unit so you can control computers/servers located up to 100 feet away from the switch. You can switch easily between the 16 ports using an on-screen display (OSD) or keyboard hotkey commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19-inch LCD screen supports video resolutions up to 1366 x 768.

The B070-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Note: B051-000 remote access IP unit is not compatible with B070-008-19 or B070-016-19 NetCommander® Cat5 1U Rack-Mount Console KVM Switch Series.

Features

Saves Space and Money

• Combines 16-port KVM switch, 19” LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium
• Mounts into 19”-wide rack, 27”-42” deep; can be mounted in 2-post rack with B019-000
• Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use
• Eliminates need to buy costly monitors, keyboards and mice for each computer/server

Uses inexpensive Cat5e/6/6a Cables

• Low-cost cables lets you locate servers up to 100 ft. from the switch
• Use plug-and-play Server Interface Unit B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable
• For computers with Displayport or HDMI, change to VGA using adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

Simplifies IT Tasks

• Switch easily between the 16 ports via on-screen display or keyboard hot key commands
• Hot pluggable; add or remove USB computers without having to power down the switch
• Auto-scan mode automatically sequences through all active ports accessible to the user

Large 19” LCD

• Extra-wide display makes multitasking easier
• Supports video resolutions up to 1366 x 768
• DDC emulation allows optimal output to the LCD

Multi-Level Password Security

• Multi-level password security limits access to authorized users (administrator, supervisor or user)
• Two-level log-out allows manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

• Expandable – Cascade a second level of KVM switches to control up to 256 servers from a single station using B072-008-1, B072-008-1A, B072-016-1 and/or B072-016-1A to increase the number of ports.
• Compatible with all major operating systems for easy integration into your existing structure
• Firmware is upgradable with included cable and utility
• Heavy-duty steel housing stands up to frequent use

TAA Compliant

• Complies with the Federal Trade Agreements Act for GSA Schedule purchases

System Requirements

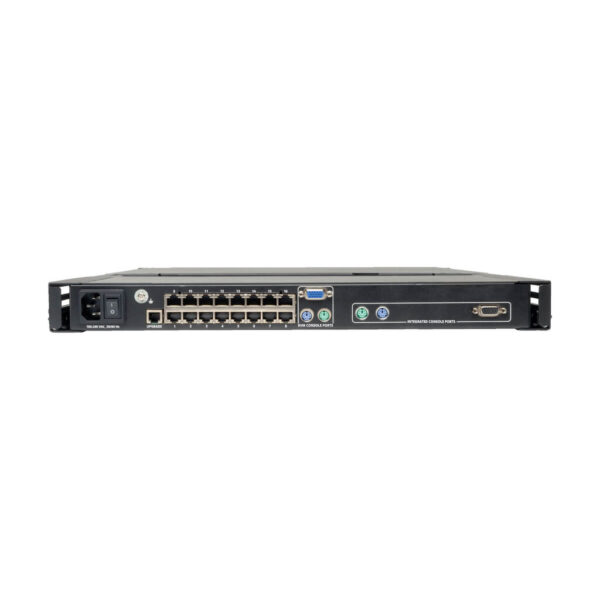

• Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports
• User-supplied Cat 5e/6/6a cabling
• B078-101-USB-1 (USB) Server Interface Unit is required for each connected computer/server
• For computers with DisplayPort or HDMI, change to VGA using adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.
• Compatible with all major operating systems
• Power consumption: 120V, 60Hz, 30W

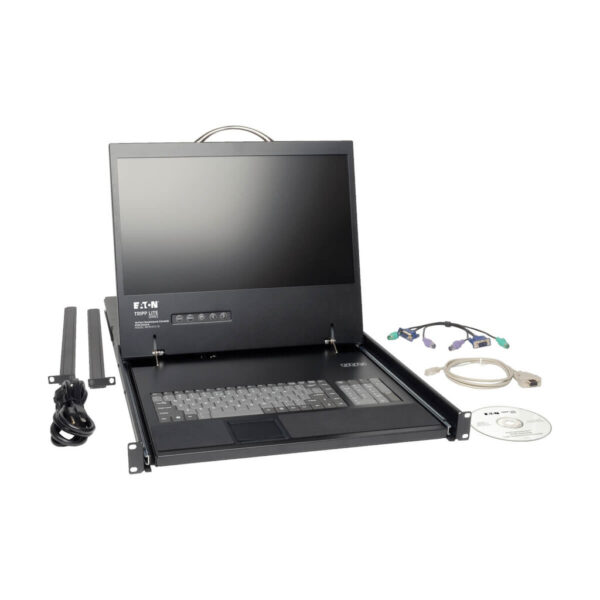

Package Includes

• B070-016-19 1U rackmount console KVM switch with 19” LCD
• C13 to 5-15P power cord
• Serial firmware upgrade cable
• Jumper cable to connect KVM console ports to integrated console ports
• Rackmount hardware
• CD with owner’s manual
