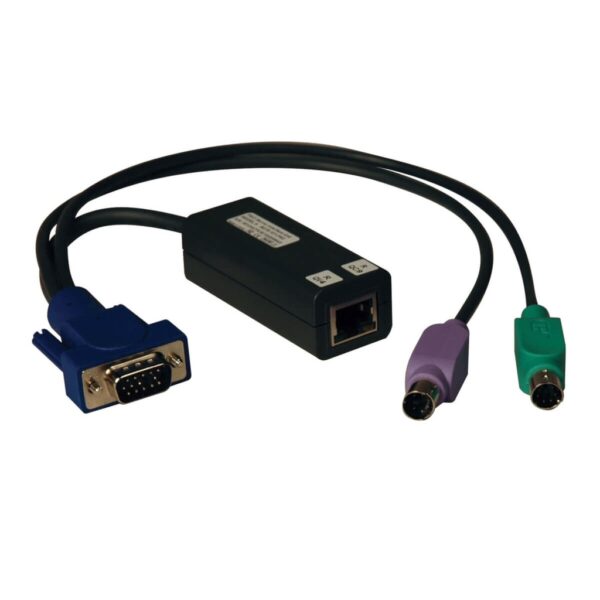

Tripp Lite series NetCommander PS2 Server Interface Unit (SIU)
$111.41
Tripp Lite series NetCommander PS2 Server Interface Unit (SIU)
Manufacturer Warehouse: 142 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Needed to connect a PS/2 Server to a B070 / B072-Series NetCommander KVM switch via Cat5e cable
- Easy to install; no software needed
- No power supply needed
- Allows a recommended maximum distance of 100-ft. (30.5 m) from KVM to Server via Cat5e cable
- Compact and lightweight design
Features
- Needed to connect a PS/2 Server to a B070 / B072-Series NetCommander KVM switch via Cat5e cable
- Eliminates the need for thicker, heavier KVM cables
- Compact, lightweight design
- Plug and Play; no software required
- No power supply required
- Allows a Server/CPU to be located up to 100-ft. (30.5 m) away from the KVM switch
- To convert DisplayPort or HDMI computers to VGA, use adapters P134-06N-VGA-V2 or P131-06N
System Requirements
- Server or CPU with a HD15 port and (2) PS/2 type connections
- A B070 / B072-Series NetCommander Cat5 KVM Switch
- Cat5e/6 cable; up to 100-ft. (30.5 m)
- To convert DisplayPort or HDMI computers to VGA, use adapters P134-06N-VGA-V2 or P131-06N
Package Includes
- (x1) B078-101-PS2 PS/2 Server Interface Unit (SIU)
| Weight | 0.24 lbs |
|---|---|
| Dimensions | 5.9 × 5.12 × 1.1 in |
| UPC Code | 037332148438 |
| Brand | |
| Accessory Type | Server Interface Unit |
| Technology | Cat5/5e; PS/2; VGA/SVGA |
| Accessory Class | KVM Switch Accessories |
| Bus Powered | Yes |
| Product Length (ft.) | 1.2 |
| Side A - Connector 1 | HD15 (MALE) |
| Side A - Connector 2 | (2) MINI DIN-6 (FEMALE) |
| Side B - Connector 1 | RJ45 (FEMALE) |
| Computer Keyboard and Mouse Interface | PS/2 |
| Computer Monitor Interface | VGA |
| LED Indicators | GREEN (RECEIVING POWER); ORANGE (SELECTED AS ACTIVE PORT) |
| Color | Gray |
| Material of Construction | ABS |
| Shipping Dimensions (hwd / cm) | 2.79 x 13.00 x 14.99 |
| Shipping Weight (kg) | 0.11 |
| Unit Weight (kg) | 0.10 |
| Operating Temperature Range | -4° to 158°F (-20° to 70°C) |
| Storage Temperature Range | -4° to 158°F (-20° to 70°C) |
| Driver Required | No |
| Recommended Category Cable | N105 – SERIES CAT5E SHIELDED CABLES |
| Product Certifications | EN 55022; EN 55024 |
| Product Compliance | RoHS; CE (Europe); REACH; FCC (USA) |
| Product Warranty Period (Worldwide) | 3-year limited warranty |
| WEXT1A | Extended Warranty and Technical Support for Select Products – Cables and Connectivity, DC Power, Keyspan, KVM, Inverters |
| WEXT2A | Extended Warranty and Technical Support for Select Products Cables and Connectivity, DC Power Supplies, Keyspan Products, KVM Switches, Power Inverters |
| WEXT3A | Extended Warranty and Technical Support for Select Products – Cables and Connectivity, DC Power Supplies, Keyspan Products, KVM Switches, Power Inverters |
