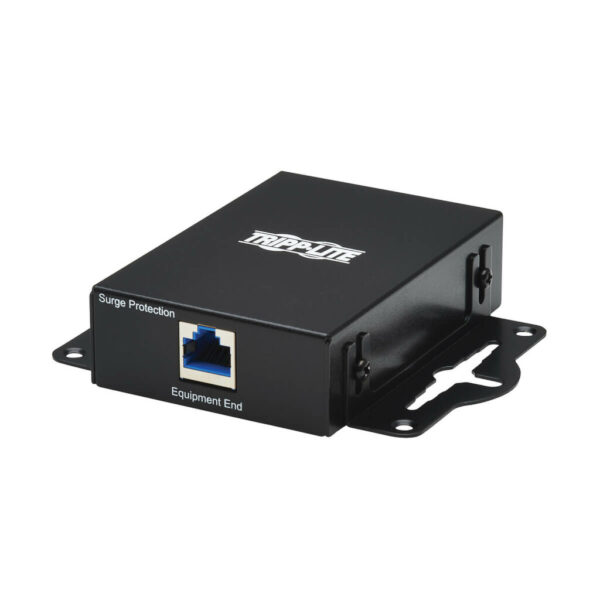

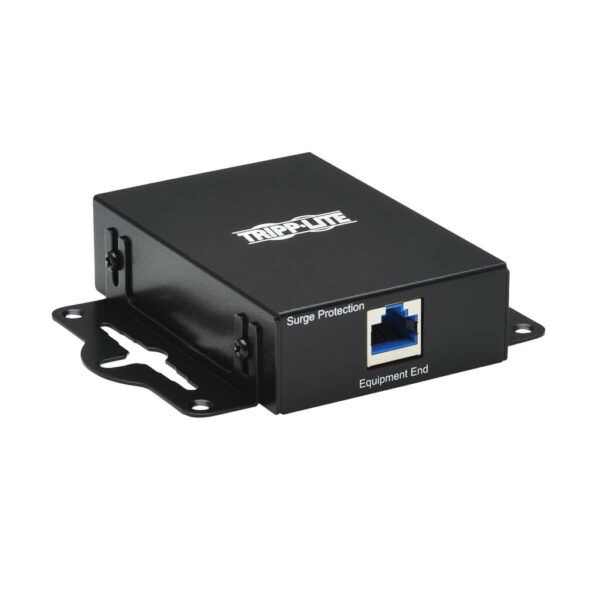

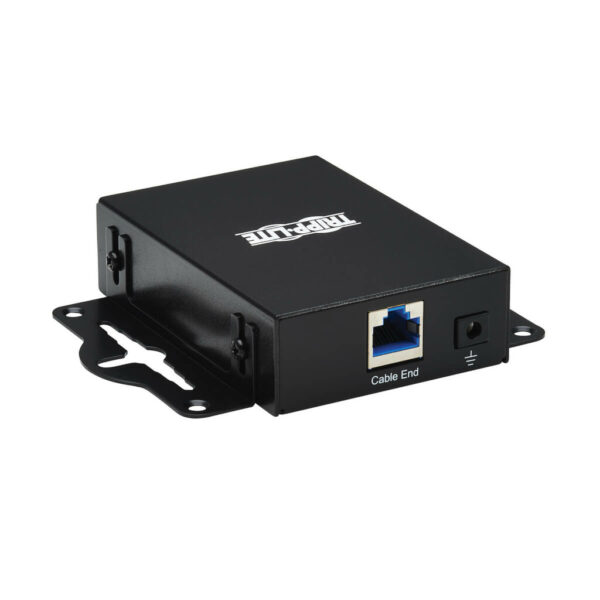

Tripp Lite series In-Line Network Surge Protector – 10 Gbps, Cat6a/8, Metal Case, IEC Compliant, TAA

Quick Specs

• Easy to connect between network source and device using standard Cat5/5e/6/8 cabling
• Rapid reaction time under 1 ns helps prevent damage from power surges
• Supports Ethernet network data transmission speeds up to 10 Gbps
• DIN-mountable with optional accessory (B110-DIN-02)
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

In-Line Surge Protector Keeps Your 10G Ethernet Network Equipment Safe

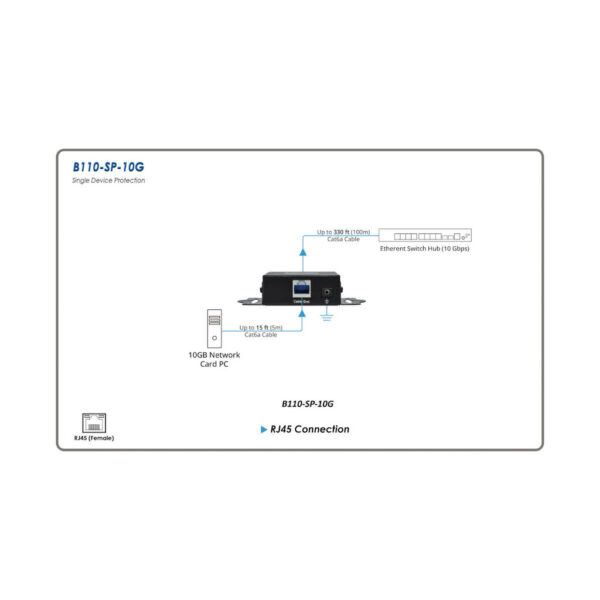

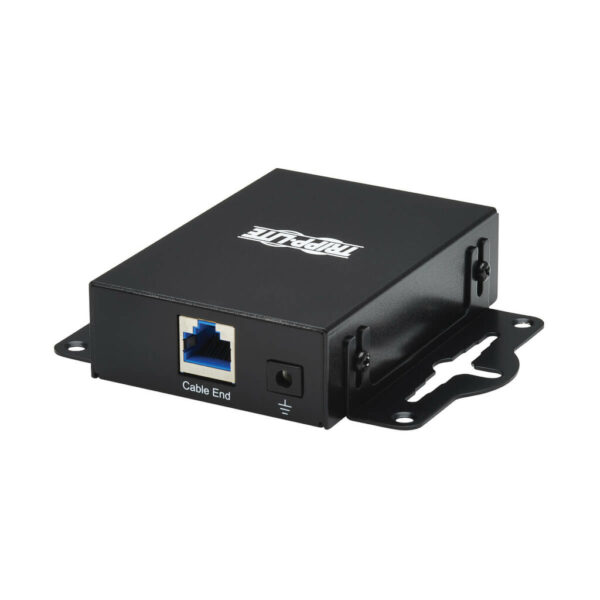

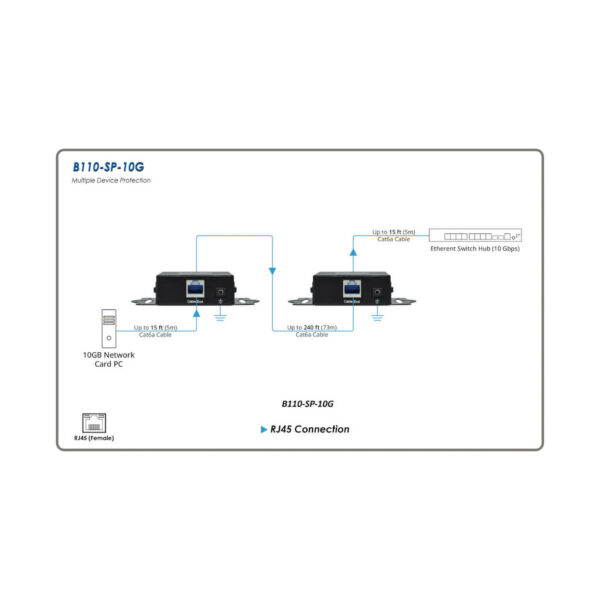

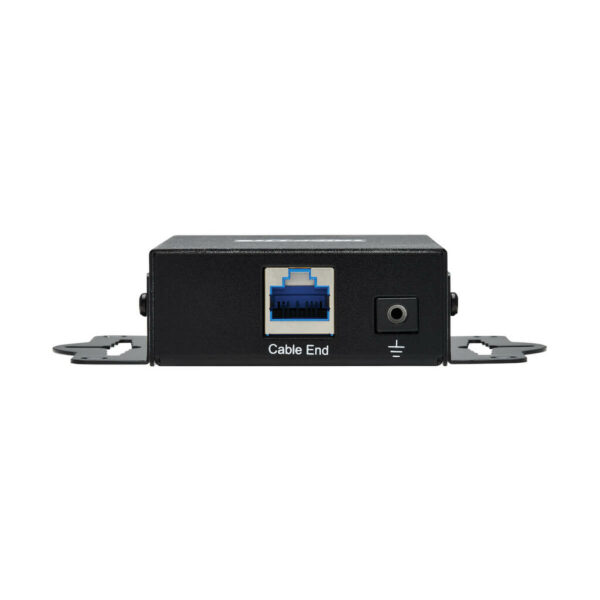

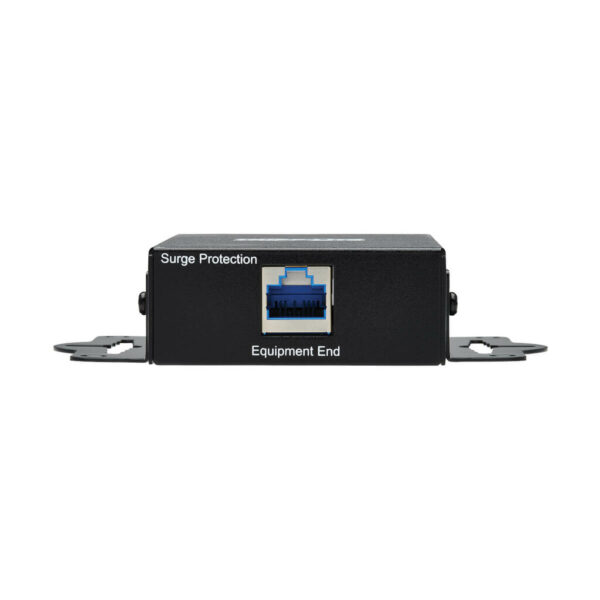

Ideal for home/corporate security systems, home theaters, trade shows and other digital signage applications, the B110-SP-10G protects connected network equipment from damage caused by electrostatic discharge (ESD), power surges and cable discharge events. Just connect it between your network source and device using Cat5/5e/6/6a/8 cables and ground it with the included wire. Note: Surge protection is unidirectional e.g. from source to device or device to source. Two B110-SP-10G surge protectors, connected in a series, are required to protect both the source and the connected device.

Your Last Defense Against Intruding Voltage Spikes
Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Gas discharge modules on all four twisted pairs protect each wire from surges or spikes by dissipating the voltage transient through a contained plasma gas. The B110-SP-10G meets the following IEC regulations: IEC 61000-4-2 (8K/15kV), IEC 61000-4-5 2kA (8/20µs), 6kV (8/20µs) and IEC 61000-4-4 (2kV)

Ready to Use Right from the Package, So You Can Plug and Play Immediately

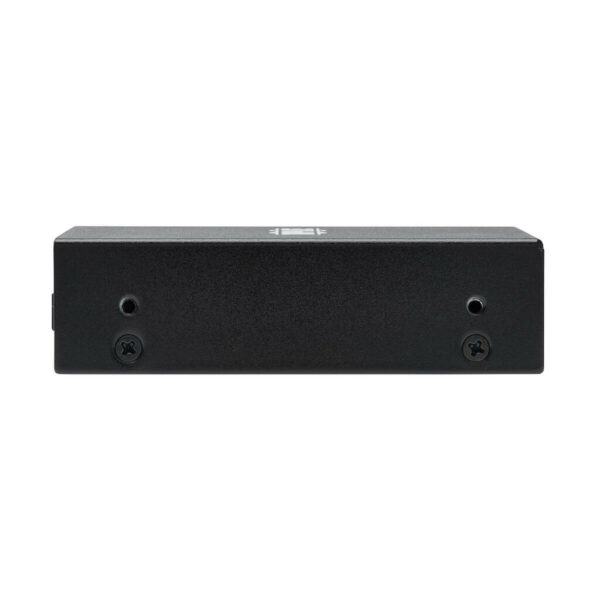

This in-line surge protector supports data transmission speeds up to 10 Gbps without signal degradation. No software, drivers or external power supply is required. The compact metal housing is designed to endure in applications where static discharge is likely to occur. Surface mounting hardware is included. Can be DIN-mounted with optional accessory (B110-DIN-02). Be sure the distance between the B110-SP-10G and the equipment it is protecting is no more than 100 meters (330-ft).

TAA-Compliant for GSA Schedule Purchases
The B110-SP-10G is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

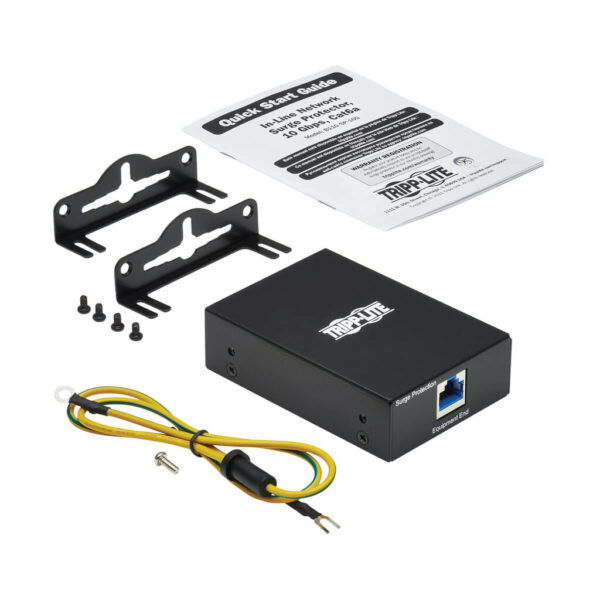

Package Includes

• B110-SP-10G In-Line 10G Network Surge Protector
• Grounding wire
• Grounding wire screw
• Mounting hardware
• Quick Start Guide
