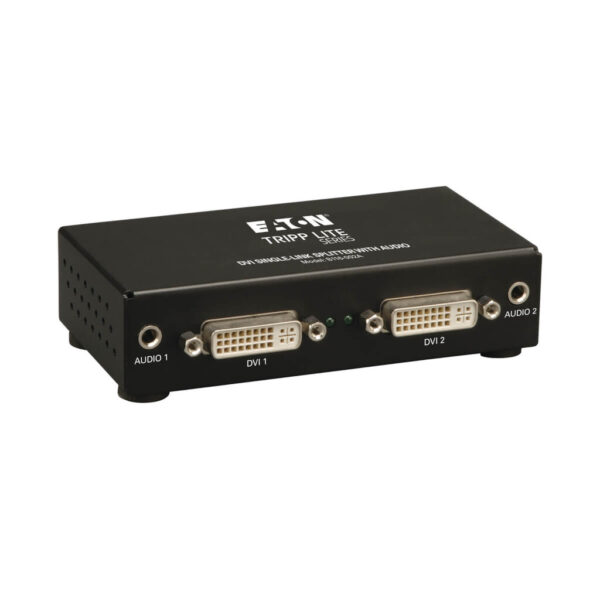

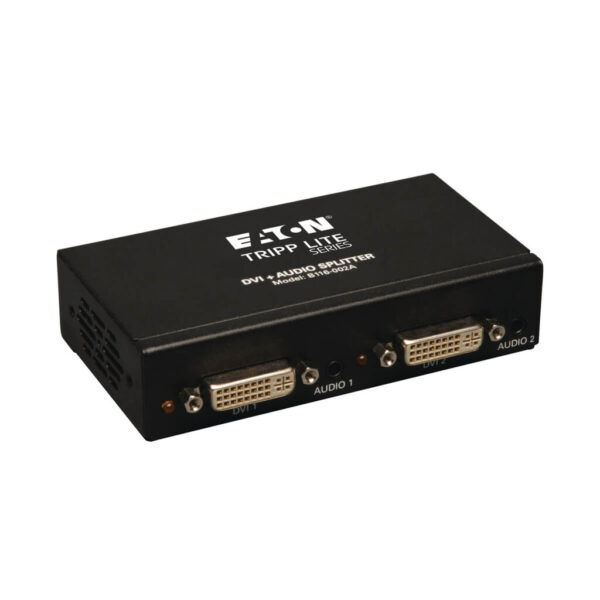

Tripp Lite series 2-Port DVI Splitter with Audio and Signal Booster, Single-Link 1920×1200 at 60Hz/1080p (DVI F/2xF), TAA

Quick Specs

• Transmits a DVI-D Single Link video signal and 3.5mm audio signal to two sets of DVI monitors and speakers
• Supports DVI Single Link computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p.
• Built-in signal booster extends the distance between the splitter and connected monitors past the 16-ft. (4.88 m) distance limitation
• Expand the number of connected monitors/speakers by cascading up to 3 levels of splitters together
• Supports HDCP, EDID and DDC
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Overview

With this 2-Port DVI + Audio Splitter, you can transmit a DVI-D Single-Link video signal and 3.5 mm audio signal to two sets of monitors and speakers. Supports DVI Single-Link computer video resolutions up to 1920 x 1200 and HD resolutions up to 1080p. The unit is HDCP, EDID and DDC compatible. A built-in signal booster allows you to extend the distance between the splitter and connected monitors past the 16-foot (4.9-meter) distance limitation.

For source video resolutions anywhere from 1600 x 1200 at 60 Hz to 1920 x 1200 at 60 Hz, the distance between the splitter and the connected monitor/speakers must not exceed 49 feet (14.9 meters). This distance can be extended by using a B120-000-SL DVI extender. The B120-000-SL can be located up to 65 feet (19.8 meters) from the splitter and 16 feet from the connected monitor.

For source video resolutions lower than 1600 x 1200 at 60 Hz, the distance between the splitter and the connected monitor/speakers must not exceed 65 feet. This distance can be extended by using a B120-000-SL DVI extender. The B120-000-SL can be located up to 114 feet (34.7 meters) from the splitter and 16 feet from the connected monitor.

The number of connected monitors/speakers can be expanded by cascading up to three levels of splitters. Plug and Play…no software or drivers required. Mounting hardware is included with the product and allows it to be rack-mounted, wall-mounted or pole-mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

• Transmit a DVI-D Single Link video signal and 3.5 mm. audio signal to two sets of monitors and speakers
• Supports DVI Single Link computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p
• HDCP, EDID, and DDC compatible
• Built-in signal booster allows you to extend the distance between the splitter and connected monitors past the 16-ft. (4.88 m) distance limitation
• The number of connected monitors/speakers can be expanded by cascading up to three levels of splitters
• Plug and Play…no software or drivers required. Mounting hardware is included with the product, and allows it to be rackmounted, wallmounted or pole-mounted
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

• Video graphics card with a DVI-D or DVI-I connector
• Monitors with a DVI-D or DVI-I connector
• Speakers and/or monitor with a 3.5 mm. audio connector

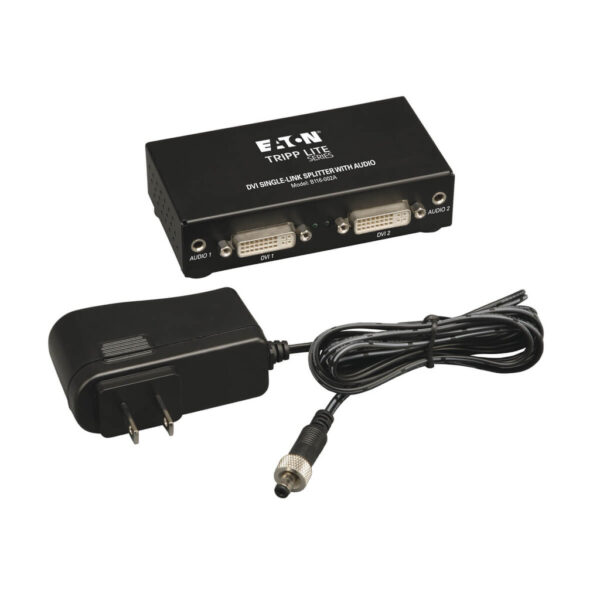

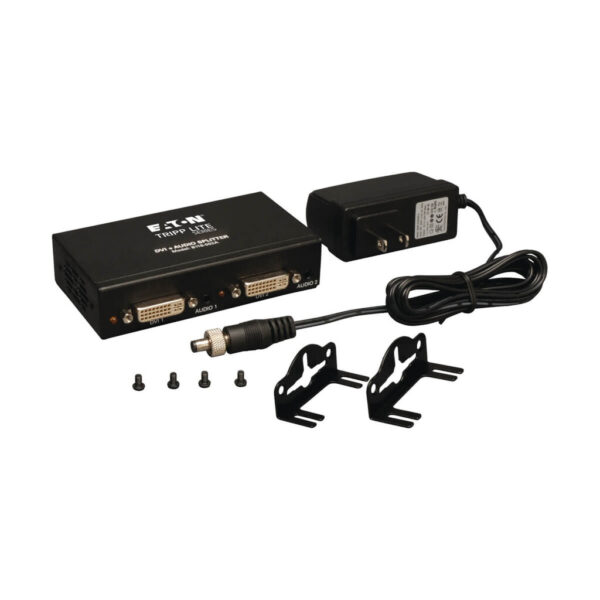

Package Includes

• B116-002A
• Mounting Hardware
• External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5-ft. (1.52 m)
• Owner’s Manual
