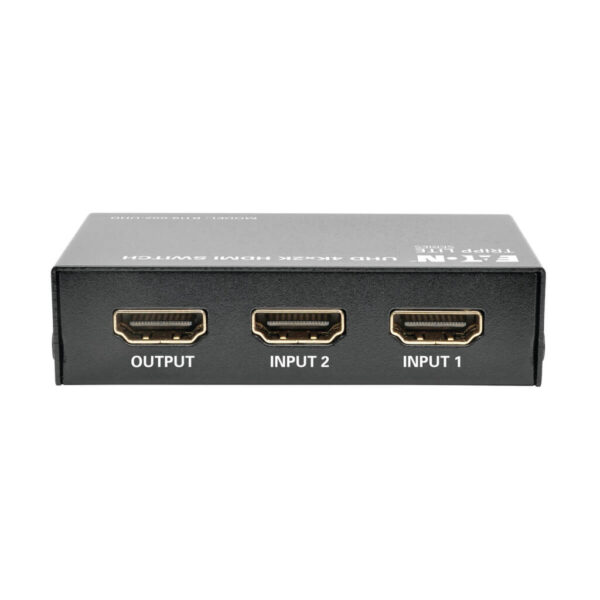

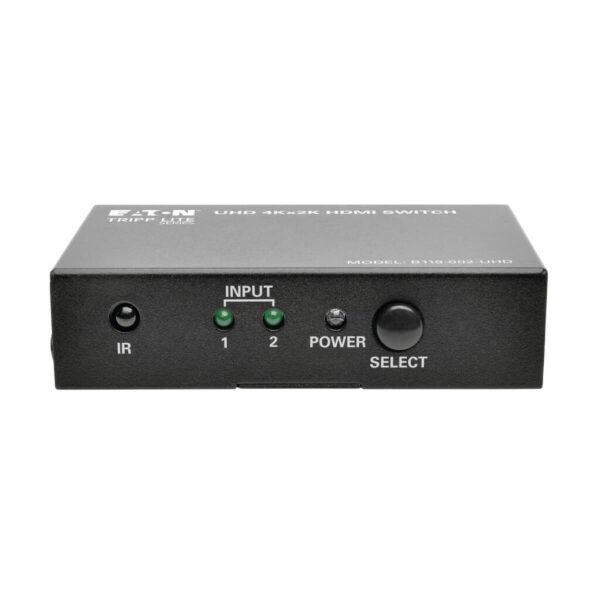

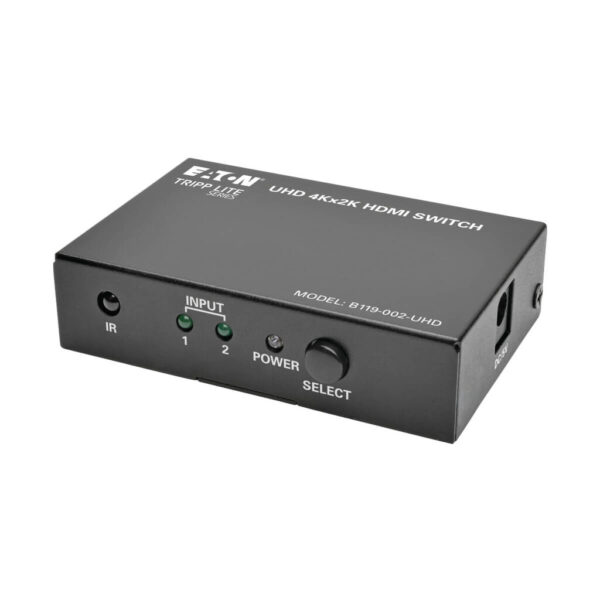

Tripp Lite series 2-Port HDMI Switch with Remote Control - 4K @ 60 Hz, 4:4:4, HDR, 3D, HDCP 2.2, EDID

Tripp Lite series 2-Port HDMI Switch with Remote Control – 4K @ 60 Hz, 4:4:4, HDR, 3D, HDCP 2.2, EDID

Name: Tripp Lite series 2-Port HDMI Switch with Remote Control - 4K @ 60 Hz, 4:4:4, HDR, 3D, HDCP 2.2, EDID
Brand: Tripp Lite
SKU: B119-002-UHD
Price: 61.85 CAD
Availability: BackOrder

$61.85

Brand: Tripp Lite

Part Number (MPN): B119-002-UHD

UPC / GTIN: 037332191335

Datasheet: PDF

Tripp Lite series 2-Port HDMI Switch with Remote Control – 4K @ 60 Hz, 4:4:4, HDR, 3D, HDCP 2.2, EDID

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) for crystal-clear video
Up to 18 Gbps data rate
Switch source devices using button or included remote control
Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound
Plug-and-play operation with no software required for easy, immediate installation

Overview

The B119-002-UHD 2-Port HDMI Switch allows you to connect two HDMI source devices to one port on an HDMI display and switch back and forth between them. For instance, you can connect a Blu-ray player and video game system or a computer and cable/satellite DVR to one HDMI port on a monitor, projector or TV. Or you can connect two computers or media centers to a display for exhibiting digital signage or giving presentations.Connect your devices to the HDMI ports, and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. Switch between source devices using the unit’s Select button or the included remote control. When the currently used device is powered off, the unit automatically switches to the next powered-on device.The B119-002-UHD ensures top-quality performance with video resolutions up to 4K @ 60Hz 4:4:4, as specified in HDMI 2.0. It is also capable of 48-bit True Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It’s compatible with 3D, HDR, HDCP v2.2 and EDID. Plug-and-play functionality requires no software or drivers to download and install.

Features

Connects 2 HDMI Devices to a Single HDMI Display

Ideal for home entertainment systems, digital signs and video presentations
Switch between source devices via button on unit or included remote control
Automatically switches to next available device when currently used device is powered off
Red LED indicates unit is receiving power from AC outlet
Green LEDs indicate connected HDMI inputs

Top-of-the-Line Audio and Video

Supports video resolutions up to 4K @ 60 Hz (4:4:4), as specified in HDMI 2.0
Supports 48-bit True Color (16 bits per channel)
Up to 18Gbps Data Rate
Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
Compatible with 3D, HDCP v2.2 and EDID

Sets Up in Seconds

Plug and play right from the box with no software or drivers needed

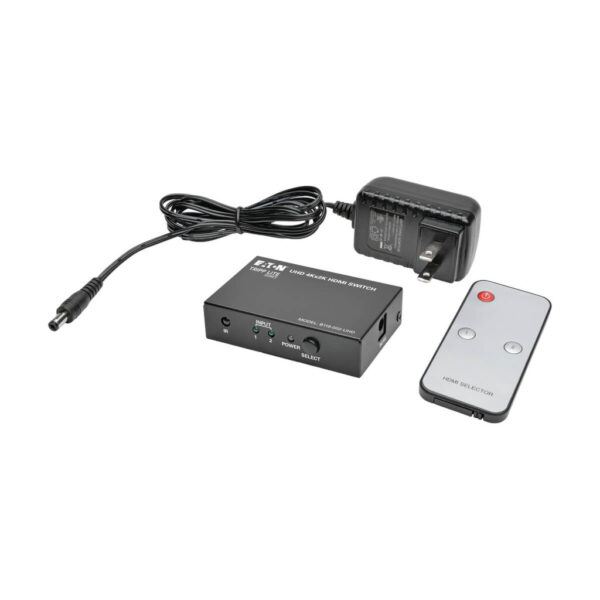

Package Includes

B119-002-UHD 2-Port HDMI Switch
Remote control
External power supply (Input: 100–240V, 50/60 Hz, 0.3A; Output: 5V 1A)
(4) International plug adapters (North America, Europe, United Kingdom, Australia)
Owner’s manual

Weight	1.83 lbs
Dimensions	4.92 × 6.69 × 2.36 in
UPC Code	037332191335
Cord Length	4.92
Number of Ports	2
Brand	Tripp Lite
Product Type	Switch
Technology	HDMI; IR
Max Supported Video Resolution	3840 x 2160 (4K @ 60Hz)
Max Supported Color Depth	48-bit Deep Color
HDR Support	Yes
3D Video Supported	Yes
Audio Specification	7.1 Channel Surround Sound, DTS-HD, and Dolby TrueHD
AC Power Adapter Plug(s)	AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America
AC Power Adapter Input Specs (V / Hz / A)	100-240V / 50/60Hz / 0.3A
AC Power Adapter Output Specs (V / A)	5V / 1A
AC Power Adapter Cord Length (ft.)	5
AC Power Adapter Cord Length (m)	1.5
Voltage Compatibility (VAC)	100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Product Length (in.)	2.15
Product Length (ft.)	0.26
Power Source Type	AC Adapter
AC Adapter	Input: 100-240V, 50/60Hz, 0.3A; Output: 5V, 1A, 5 ft.
DC Barrel Plug	OD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve
Power Consumption (Watts)	1.7
Side A - Connector 1	(2) HDMI (FEMALE)
Side B - Connector 1	HDMI (FEMALE)
Input x Output	2 x 1
LED Indicators	Red (Power), (x2) Green (Connection)
Color	Black
Material of Construction	Steel
Shipping Dimensions (hwd / cm)	5.99 x 16.99 x 12.50
Shipping Weight (kg)	0.83
Unit Packaging Type	Box
Unit Weight (kg)	0.11
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	14° to 176°F (-10° to 80°C)
BTUs	5.8 BTU/Hr
Operating Humidity Range	10% to 85 % RH, Non-Condensing
Storage Humidity Range	5% to 90% RH, Non-Condensing
Port Control	Push Buttons
EDID Compatible	Yes
IR Remote Extension Support	Yes
Consumer Electronics Control (CEC) Supported	Yes
Port Selection	Pushbutton; Remote Selector
HDCP Specification	2.2
Driver Required	No
External Power Supply Certifications	BS; C-Tick; CB; CE; DOE; FCC; GS; RoHS; UL; cUL
Product Compliance	RoHS; CE (Europe); REACH; FCC (USA)
Product Warranty Period (Worldwide)	3-year limited warranty
