Tripp Lite series 3-Port HDMI Mini Switch with Remote Control - 4K (HDMI F/3xF), 3D, HDCP 1.4, EDID

Tripp Lite series 3-Port HDMI Mini Switch with Remote Control – 4K (HDMI F/3xF), 3D, HDCP 1.4, EDID

Name: Tripp Lite series 3-Port HDMI Mini Switch with Remote Control - 4K (HDMI F/3xF), 3D, HDCP 1.4, EDID
Brand: Tripp Lite
SKU: B119-003-UHD-MN
Price: 32.14 CAD
Availability: InStock

$32.14

Brand: Tripp Lite

Part Number (MPN): B119-003-UHD-MN

UPC / GTIN: 037332189233

Datasheet: PDF

Tripp Lite series 3-Port HDMI Mini Switch with Remote Control – 4K (HDMI F/3xF), 3D, HDCP 1.4, EDID

Manufacturer Warehouse: 219 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Switch source devices using buttons or included remote control
Switches to next port when current device is powered off
Supports UHD resolutions up to 4K @ 30 Hz for crystal-clear video
Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound
Plug-and-play operation with no software required for easy, immediate installation

Overview

The B119-003-UHD-MN 3-Port Mini HDMI Switch allows you to connect three HDMI source devices to one port on an HDMI monitor and switch back and forth between them. For instance, you can connect your Blu-ray player, video game system and cable/satellite DVR to one HDMI port on your high-definition television. Or you can connect three computers or media centers to a monitor for displaying digital signage or giving presentations.Switch between source devices using buttons on the unit or the included remote control. The included IR extender receiver lets you hide the unit out of sight while still being able to switch devices up to 16 feet (5 meters) away using the remote. When the currently used device is powered off, the unit automatically switches to the next powered-on device.The B119-003-UHD-MN ensures top-quality audio/video applications with Ultra High Definition (UHD) video resolutions up to 4K at 30 Hz (3840 x 2160) and 48-bit True Color (16 bits per channel), as well as DTS-HD, Dolby True-HD and 7.1-channel surround sound audio. It’s compatible with 3D, HDCP and EDID. Hassle-free functionality requires no software, drivers or external power supply. Sets up in seconds.

Features

Connects 3 HDMI Devices to 1 HDMI Display

Switch between source devices via pushbuttons on unit or included remote control
Ideal for home audio/video applications, presentations and digital signage
Included IR extender receiver lets you control devices from a distance using the remote
Automatically switches to next available device when currently used device is powered off

Features Top-of-the-Line Audio and Video

Supports Ultra High Definition (UHD) video resolutions up to 4K @ 30 Hz (3840 x 2160)
Supports 48-bit True Color (16 bits per channel)
Supports DTS-HD, Dolby True-HD and 7.1-channel surround sound audio
Compatible with 3D, HDCP 1.4 and EDID

Sets Up in Seconds

Plug-and-play operation with no software required for easy, immediate installation

System Requirements

HDMI-enabled devices and monitor

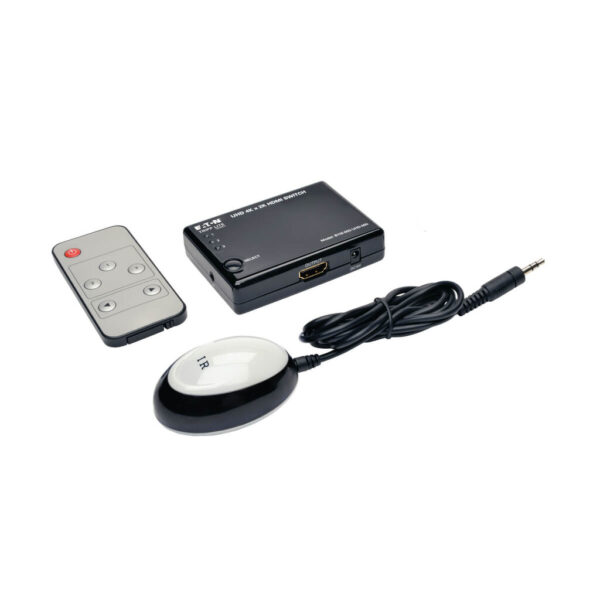

Package Includes

B119-003-UHD-MN 3-Port Mini HDMI Switch
Remote control
IR extender receiver
Owner’s manual

Weight	0.33 lbs
Dimensions	2.68 × 5.31 × 1.77 in
UPC Code	037332189233
Number of Ports	3
Brand	Tripp Lite
Product Type	Switch
Technology	HDMI; IR
Max Supported Video Resolution	3840 x 2160 (4K @ 30Hz)
Max Supported Color Depth	48-bit Deep Color
HDR Support	Yes
3D Video Supported	Yes
Audio Specification	7.1 Channel Surround Sound, DTS-HD, and Dolby TrueHD
Bus Powered	Yes
Power Source Type	USB
Power Consumption (Watts)	1
Side A - Connector 1	(3) HDMI (FEMALE)
Side B - Connector 1	HDMI (FEMALE)
Input x Output	3 x 1
LED Indicators	Red (1, 2, 3)
Color	Black
Material of Construction	ABS
Shipping Dimensions (hwd / cm)	13.46 x 6.86 x 2.54
Shipping Weight (kg)	0.12
Unit Packaging Type	Box
Unit Weight (kg)	0.05
Operating Temperature Range	32° to 113°F (0° to 45°C)
Storage Temperature Range	14° to 176°F (-10° to 80°C)
BTUs	3.4 BTU/Hr
Operating Humidity Range	10% to 85 % RH, Non-Condensing
Storage Humidity Range	5% to 90% RH, Non-Condensing
EDID Compatible	Yes
IR Remote Extension Support	Yes
Consumer Electronics Control (CEC) Supported	Yes
Port Selection	Pushbutton
HDCP Specification	1.4
Driver Required	No
Product Compliance	RoHS; CE (Europe); REACH; FCC (USA)
Product Warranty Period (Worldwide)	3-year limited warranty
