Tripp Lite series 1x4 Video Wall Controller - 4K 60 Hz, 1 HDMI/USB-C Input, 4 HDMI Outputs, HDR, 4:4:4

Tripp Lite series 1×4 Video Wall Controller – 4K 60 Hz, 1 HDMI/USB-C Input, 4 HDMI Outputs, HDR, 4:4:4

Name: Tripp Lite series 1x4 Video Wall Controller - 4K 60 Hz, 1 HDMI/USB-C Input, 4 HDMI Outputs, HDR, 4:4:4
Brand: Tripp Lite
SKU: B119-1X4-4K6-VW
Price: 505.17 CAD
Availability: InStock

$505.17

Brand: Tripp Lite

Part Number (MPN): B119-1X4-4K6-VW

UPC / GTIN: 037332291127

Datasheet: PDF

Tripp Lite series 1×4 Video Wall Controller – 4K 60 Hz, 1 HDMI/USB-C Input, 4 HDMI Outputs, HDR, 4:4:4

Manufacturer Warehouse: 260 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Captures, converts, routes and distributes 4K audio/video to a 4K video wall
Supports HDMI and USB-C input with UHD resolutions up to 4K @ 60 Hz (4:4:4)
Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy

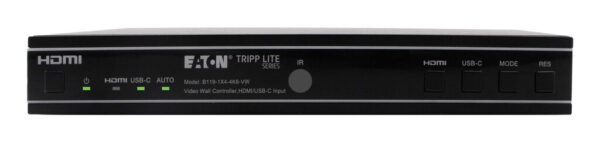

Allows flexible control via front-panel buttons, IR remote or RS-232 commands
Plug-and-play operation with no software required for easy, immediate installation

Features

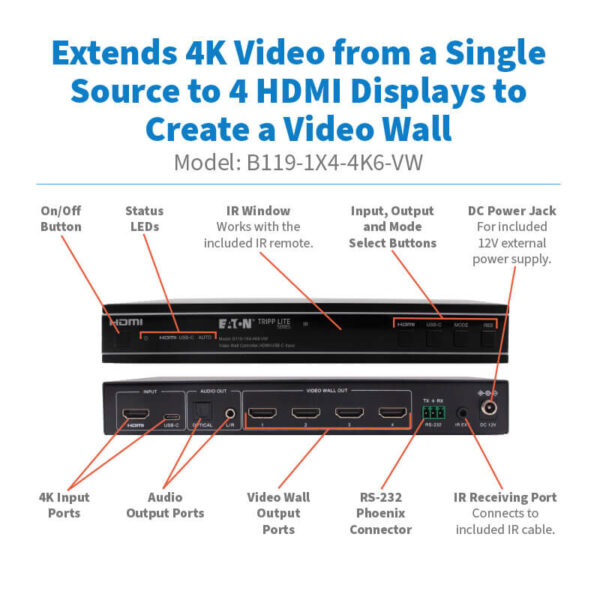

Extends 4K Video from a Single Source to Create 8 Different Video Wall Configurations
This Video Wall Controller is designed to capture, convert, route and distribute all video signal formats to a video wall. It features HDMI and USB-C input with resolution up to 4K at 60 Hz and four HDMI outputs to create eight video wall splicing modes to be stretched either horizontally or vertically: 1×1, 2×1, 3×1, 4×1, 1×2, 1×3, 1×4 and 2×2. You can set display modes via front-panel buttons, the included IR remote or RS-232 commands. Note: In video wall mode (except 1×1), only the screens that are selected to perform video wall splicing will display images. Their bezel can be adjusted.

Transmits 4K Video with HDR and 4:4:4 Color
The B119-1X4-4K6-VW supports Ultra HD 4K resolutions at 60 Hz with LPCM, Dolby Digital/Plus/EX and DTS audio. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This switch also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Plug-and-Play Operation for Quick Setup and Immediate Use

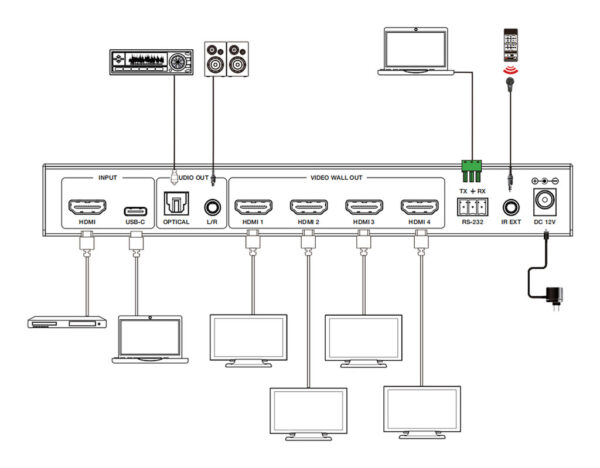

The unit works right out of the box with no software required. Mounting hardware is included for installing the units on a wall, under a desk or in a 19-inch rack. Connect a 4K source device to either the HDMI or USB-C input and up to four 4K displays to the HDMI outputs with user-supplied cables. The external power supply comes with four international plug adapters to ensure an AC connection anywhere.

System Requirements

Source device with HDMI or USB-C output (media server, Blu-ray player, laptop, cable/satellite box)
Display device(s) with HDMI input (HDTV, monitor, projector)
All connected devices and cabling must support 4K to achieve 4K resolution

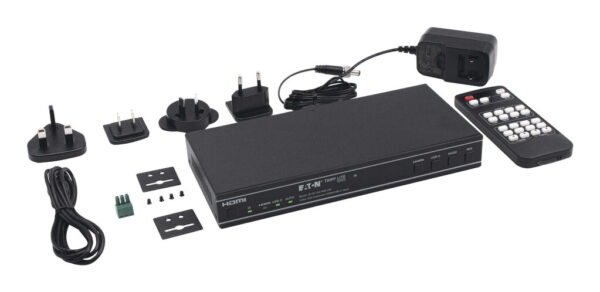

Package Includes

Video Wall Controller
IR remote
IR receiver cable, 5 ft. (1.5 m)
3-pin RS-232 Phoenix connector
External power supply (Input: 100–240V, 50/60 Hz, 0.3A; Output: 12V 1A) with 4 ft. (1.2 m) cord
(4) International plug adapters
(4) Machine screws
(2) Mounting brackets
Installation instructions

Weight	2.3 lbs
Dimensions	10.9 × 7 × 3 in
UPC Code	037332291127
Cord Length	3.94
Brand	Tripp Lite
Product Type	Video Wall Controller
Technology	HDMI
Host Connector	HDMI (FEMALE)
Max Supported Video Resolution	3840 x 2160 (4K) @ 60Hz
Max Supported Color Depth	12-bit
HDR Support	Yes
3D Video Supported	Yes
Chroma Sub Sampling	4:2:0; 4:2:2; 4:4:4
EDID Support	Yes
Bandwidth	18 Gbps
Audio Input	HDMI
Audio Specification	HDMI IN/OUT: LPCM 2.0/5.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24 L/R OUT: PCM 2.0 SPDIF(OPTICAL): Dolby Digital/plus, DTS 5.1, PCM 2.0
AC Power Adapter Plug(s)	AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America
AC Power Adapter Input Specs (V / Hz / A)	100-240V / 50/60Hz / 0.3A
AC Power Adapter Output Specs (V / A)	12V / 1A
AC Power Adapter Cord Length (ft.)	4
AC Power Adapter Cord Length (m)	1.2
Voltage Compatibility (VAC)	100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Input Frequency	50/60 Hz
Redundancy - Dual Power Inputs	No
Power Source	AC Adapter
Frequency Compatibility	50 / 60 Hz
Power Source Type	AC Adapter
AC Plug Type	AS/NZS 3112; BS1363; CEE 7/16 Schuko; NEMA 1-15P
Power Over Cable (PoC) Support	No
AC Adapter	Input: 100-240V / 50/60Hz / 0.3A; Output: 12V, 1A, 4ft
Device Power Plug Type	AS/NZS 3112; BS1363; CEE 7/16 Schuko; NEMA 1-15P

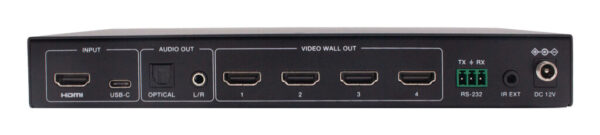

Side A - Connector 1	HDMI (FEMALE)
Side B - Connector 1	(4) HDMI (FEMALE)
Input x Output	1 x 4
Daisy-chainable / Cascadable	No
LED Indicators	ON/OFF LED Green = Operating; Red = Standby; HDMI LED = Green input selected; USB-C LED = Green input selected; AUTO LED = Green switching enabled
Color	Black
Material of Construction	Metal
Housing Color	Black
Form Factor/Mounting Options	Box; Wall-mount
Shipping Dimensions (hwd / cm)	8.00 x 18.00 x 28.00
Shipping Weight (kg)	1.10
Unit Weight (kg)	0.59
Housing	Metal
Mounting Details	Mounting ears
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Relative Humidity	20 to 90% RH (Non-Condensing)
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Port Control	Push Buttons, Remote Control or RS-232 Serial
EDID Compatible	Yes
IR Remote Extension Support	Yes
RS-232 Serial Extension Support	No
Consumer Electronics Control (CEC) Supported	Yes
Latency	No Latency
10/100 Ethernet Extension Support	No
Integrated/Removable Cable	No
Multi-Resolution Support	No
HDCP Specification	2.2
Driver Required	No
IR Frequency Range	38KHz
External Power Supply Certifications	FCC; UL; cUL
Product Compliance	CE (Europe); FCC (USA); RoHS; UKCA; WEEE
Product Warranty Period (Worldwide)	3-year limited warranty
