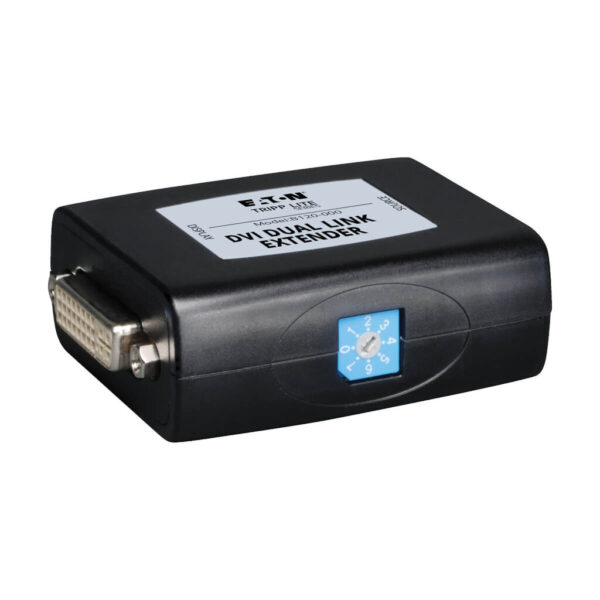

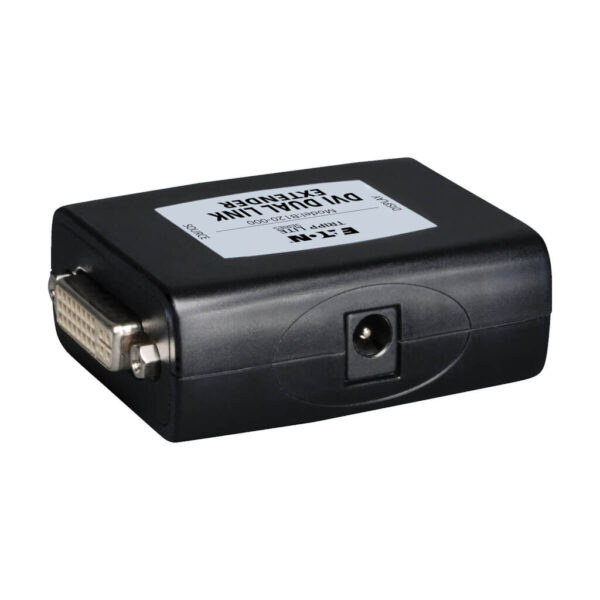

Tripp Lite series DVI Signal Booster / Extender, Dual-Link, 2560×1600 60Hz, up to 150 ft. (45 m), (DVI F/F), TAA

Quick Specs

• Extend a DVI-D Dual Link signal up to 150-ft. (45.72 m) from the source
• Use P560-Series DVI Dual-Link cables in most applications.
• When extending a 2560 x 1600 video signal more than 75-ft. (22.86 m), use cable made with 24Awg wiring
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Overview

The B120-000 DVI Dual Link Signal Extender increases the distance a DVI-D signal can be transmitted beyond the recommended 16 feet (4.9 meters). It supports video resolutions up to 2560 x 1600 at 60 Hz and a maximum distance of 150 feet (45.7 meters) from the source. Use P560-Series DVI Dual-Link cables in most applications. When extending a 2560 x 1600 video signal more than 75 feet (22.9 meters), use cable made with 24 AWG wiring. Simply connect the longer cable between the source and the B120-000 and the shorter cable (16 feet) between the adapter and the monitor. Software or drivers are not required. Built-in equalization control to adjust the video image. HDCP and DDC compatible. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

• Extend a DVI-D Dual Link signal up to 150-ft. (45.7 m) from the source
• Supports a maximum video resolution of 2560 x 1600 at 60 Hz
• Use P560-Series DVI Dual-Link cables in most applications
• When extending a 2560 x 1600 video signal more than 75-ft. (22.9 m), use a cable made with 24 AWG wiring
• Built-in Equalization control to adjust the video image
• HDCP and DDC compatible
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

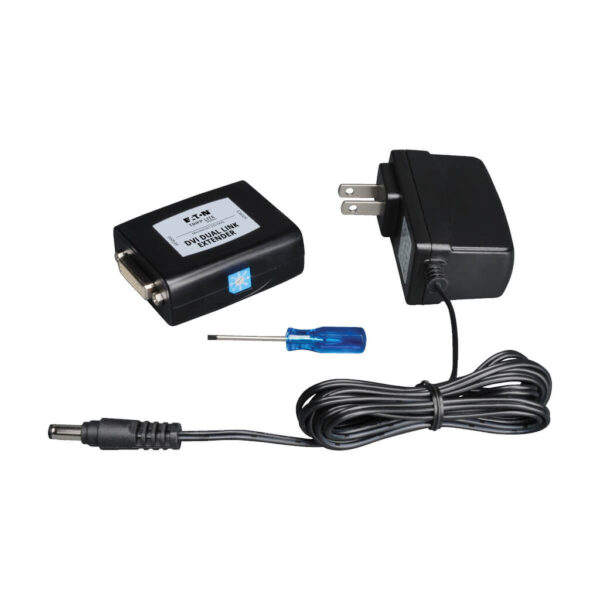

Package Includes

• B120-000 DVI Dual Link Signal Extender
• External Power Supply with NEMA 1-15P Plug ( Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)
• Screwdriver for Equalization adjustment
• Owner’s Manual
