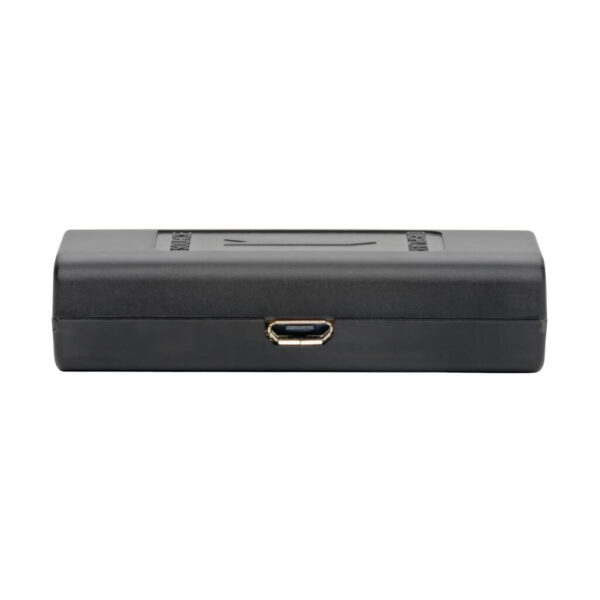

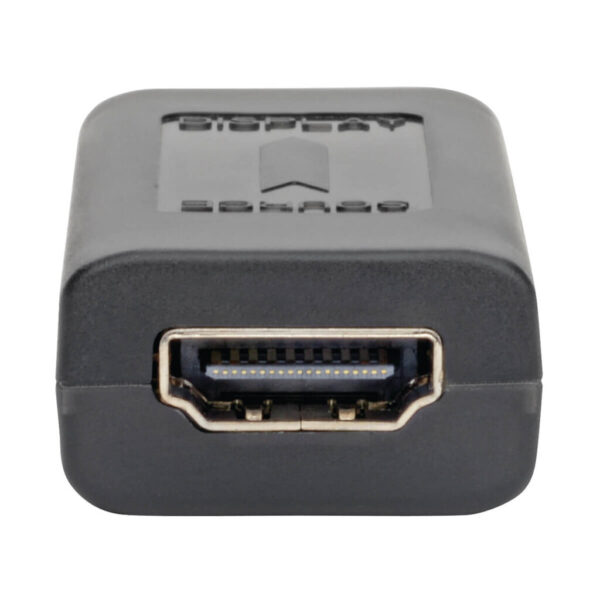

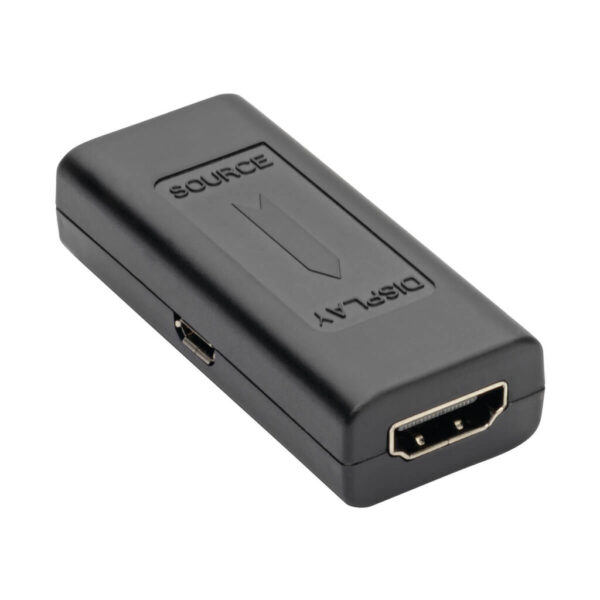

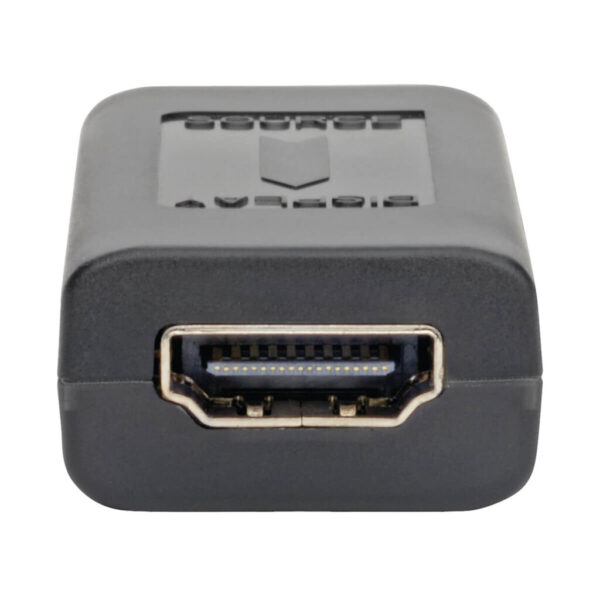

Tripp Lite series HDMI Signal Booster / Extender, 1920 x 1200 (1080p) 60Hz, Up to 125 ft. (38 m), (HDMI F/F), TAA

Quick Specs

• Allows you to store expensive source device in a secure location for controlled access
• Delivers HD picture quality at resolutions up to 1920 x 1200 (1080p) @ 60 Hz
• Supports DTS-HD, Dolby TrueHD and 7.1 surround sound for rich, clear audio
• Compact unit fits easily into briefcase or laptop bag for instant use anywhere
• Plug-and-play operation with no software required for easy, immediate installation

Features

HDMI Booster Extends High-Definition 1080p Video and Digital Audio Signals up to 125-ft. (38.1 m)Don’t let HDMI’s 16-ft. (4.9 m) distance limitation limit your audio/video application. This in-line HDMI signal extender boosts your 1080p transmission up to 125-ft. (38.1 m) from the source device without a drop in signal quality. This gives you the flexibility to hide your Blu-ray player or media server away in a secure, remote location for controlled access, while delivering video to an HDMI display somewhere else. The B122-000-60 is recommended for digital signs or video presentations in schools, conference rooms, retail displays, trade show booths and anywhere else you need to display high-definition video.Meets HDMI Industry Standards to Deliver High-Definition ResultsThis HDMI signal booster supports computer video resolutions up to 1920 x 1200 and HD resolutions up to 1080p at 60 Hz, as well as 36-bit Deep Color (12 bits per channel). It also supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound to ensure your speakers deliver rich, clear audio to match the video quality.Greater Distance Gives You More Freedom in Placing Your Source and Display DevicesThis low-profile HDMI booster is designed for use with P568-Series HDMI cables (sold separately). Connect the longer cable (up to 125-ft. (38.1 m) to your source device, such as a Blu-ray player or computer, to transmit a 1080p (60 Hz) signal. The shorter cable connects the B122-000-60 and the HDMI display device, and must be no longer than 16-ft. (4.9 m). For distances over 75-ft. (22.9 m), a 24 AWG HDMI cable, such as P568-100-HD, is required. In addition, this unit can also extend a 3D signal up to 125-ft. (38.1 m) (24 AWG cable required for 3D transmissions over 50-ft. (15.2 m).Ready to Use Right from the Package, So You Can Plug and Play ImmediatelyThe plug-and-play unit requires no software, drivers or (usually) external power. In the extreme case that external power is needed, connect a USB Micro-B cable (such as UR050-Series) between the unit’s USB Micro-B port and a USB wall charger or USB port on your monitor or computer. With its low-profile design, the B122-000-60 is easy to stow in your laptop bag and carry to school, the office or the latest trade show.TAA-Compliant for GSA Schedule PurchasesThe B122-000-60 is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.3-Year WarrantyThe B122-000-60 is backed by a 3-year warranty, ensuring reliability and performance.

System Requirements

• Source device with HDMI output
• Display device with HDMI input
• 24 AWG HDMI cable required for distances over 75-ft. (22.86 m) (P568-Series)

Package Includes

• B122-000-60 HDMI Signal Booster
• Owner’s manual
