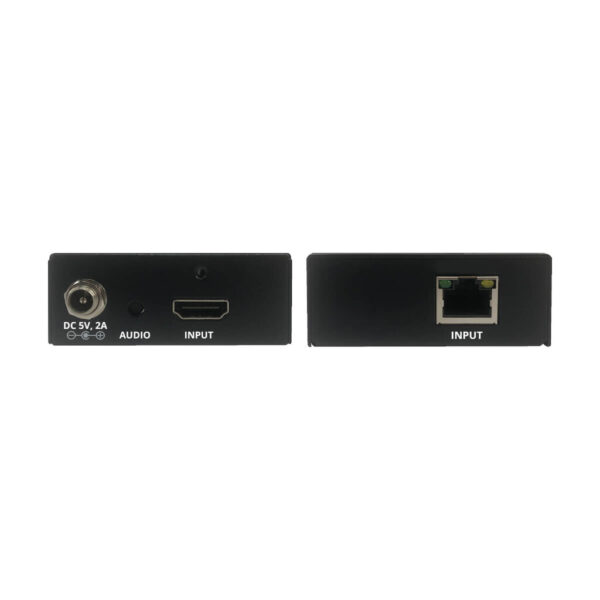

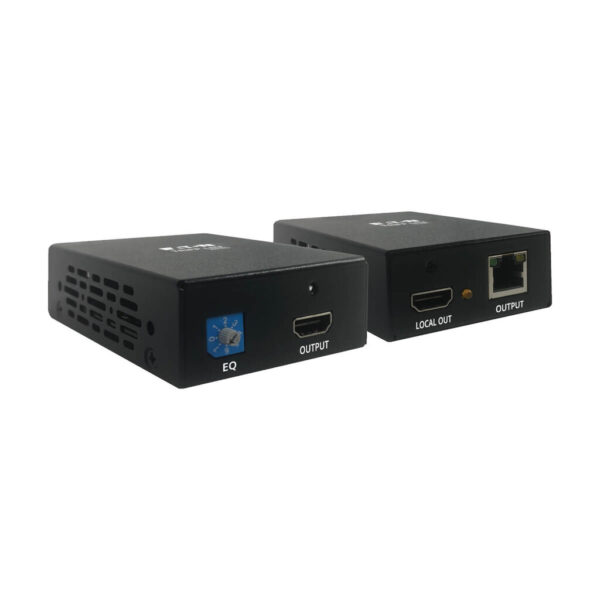

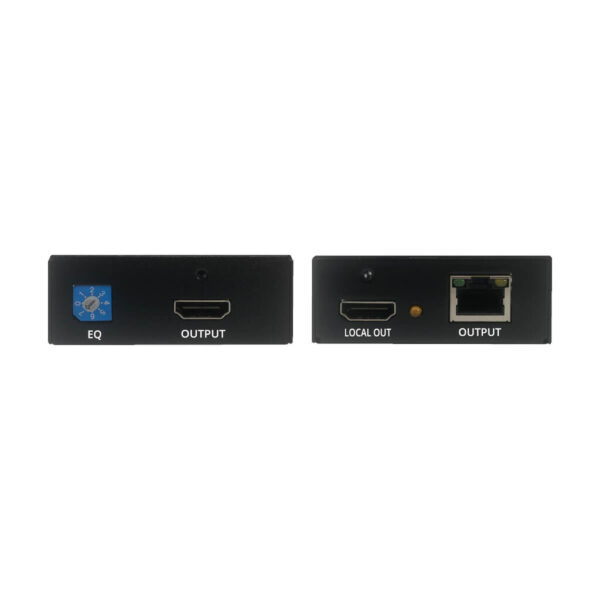

Tripp Lite series HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, PoC, Up to 125 ft. (38 m), TAA

Quick Specs

• Built-in Power over Cable (PoC) technology powers the receiver
• Supports high-definition video resolutions up to 1080p (@ 60 Hz)
• Supports stereo and 7.1-channel surround sound audio
• Built-in equalization control lets you adjust monitor image
• Plug and play—no software or drivers to install

Overview

The B126-1A1-POC HDMI over Cat5 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI audio/video signal to a projector, monitor or television. The kit is ideal for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow. HDMI cable (see P569-Series) connects an optional local display and the audio/video source, such as a media server, to the transmitter’s HDMI ports and a remote display to the receiver. Cat5e/6/6a cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as N202-Series). Built-in Power over Cable (PoC) technology powers the receiver over Cat5e/6/6a cable, so no external power supply on the display side is needed.The B126-1A1-POC can extend a high-definition 1080p (@ 60 Hz) signal up to 125 feet (38.1 meters). In addition to crystal-clear video, the B126-1A1-POC delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM). Built-in equalization control lets you fine-tune the image quality at the remote display. Supports 24-bit True Color (8 bits per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

Extends High-Definition Signals

• Extends a 1080p (@ 60 Hz) signal up to 125-ft. (38.1 m)
• Transmitter and receiver connect with one Cat5e/6/6a cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as N202-Series)
• Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
• Supports 24-bit True Color (8 bits per channel) and HDCP
• Built-in equalization control lets you adjust the image on the local monitor

Easy to Set Up and Use

• Plug-and-play engineering—no software or drivers to download and install
• Works with all operating systems and HDMI video sources
• Units connect quickly to monitors with HDMI cable, such as P569-Series
• LEDs indicate at a glance when the units are receiving power and an HDMI signal
• Included mounting hardware lets you install the units on a wall, rack or pole

TAA Compliant

• Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

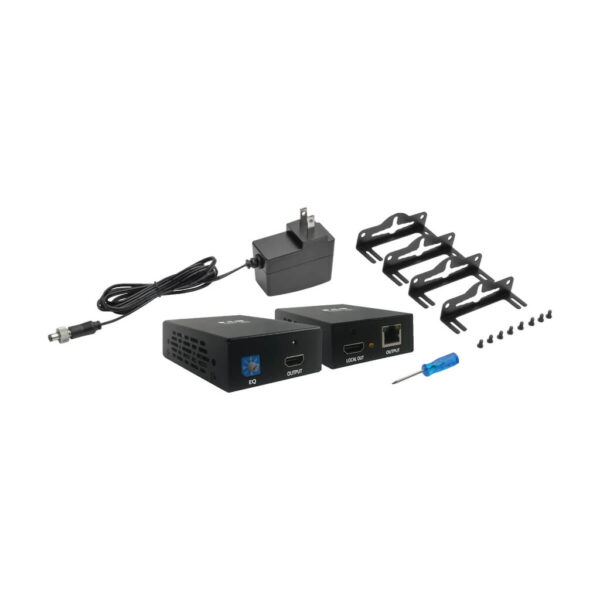

Package Includes

• Transmitter unit
• Receiver unit
• Screwdriver for adjusting equalization
• External power supply with NEMA 1-15P plug and 5-ft. (1.52 m) cord (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
• Mounting hardware
• Owner’s manual
