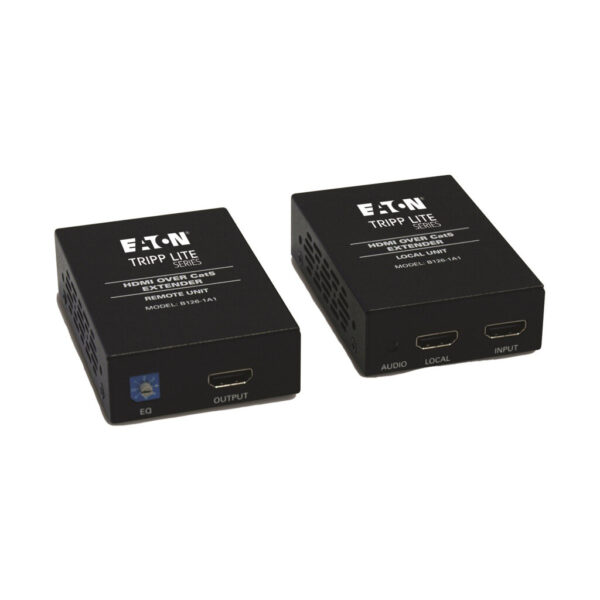

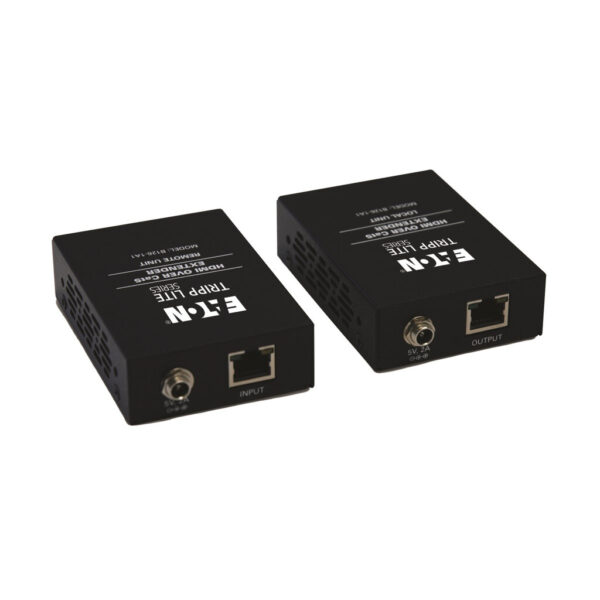

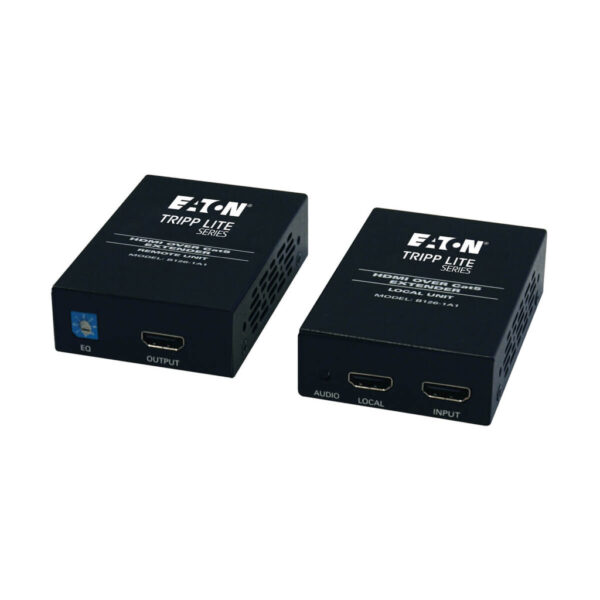

Tripp Lite series HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, Up to 150 ft. (45 m), TAA

Quick Specs

• Display HDMI audio/video up to 150 ft. (45 m) away with no costly cable installation
• Supports HD resolutions up to 1920 x 1080 (1080p) @ 60 Hz
• Extra HDMI port on local transmitter lets you monitor image on remote display
• Plug-and-play operation with no software required for easy, immediate installation
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

HDMI Extender Recommended for Displaying Video in Boardrooms and Conference Rooms
This complete HDMI transmitter and receiver system is recommended for digital signage and presentations in conference rooms, trade shows, home theaters, bars, restaurants, schools and other video applications. The B126-1A1 extends 1080p video and stereo audio signals from an HDMI source device to an HDMI display up to 150 feet (45 meters) away. Connect the receiver to the display and the transmitter to the source with user-supplied HDMI cables. User-supplied Cat5e/6 cabling connects the two units.

Transmits Crystal-Clear 1080p Video for High-Definition Presentations
The B126-1A1 supports high-def video resolutions up to 1920 x 1080 (1080p) at 60 Hz with 24-bit Deep Color (8 bits per channel) and 7.1-channel surround sound (multi-channel or PCM). It can extend a 1080i (60 Hz) signal up to 200 feet (61 meters), a 1080p (60 Hz) signal up to 150 feet (45.7 meters) and a 3D signal up to 125 feet (38.1 meters). You can also connect up to three B126-110 remote repeaters in the chain (using Cat5e/6 cable) for a total of five HDMI displays and full signal extension of 700 feet (213.4 meters) (1080i), 500 feet (152.4 meters) (1080p) or 400 feet (122 meters) (3D).

Plug-and-Play Operation for Quick Setup and Immediate Use
The HDMI audio/video transmitter and receiver set works right out of the box with no software required. Mounting hardware is included for installing the units on a wall or pole or inside a rack. Power supplies for the transmitter and receiver are included. Built-in equalization control allows manual adjustment of the local display’s image.

TAA-Compliant for GSA Schedule Purchases
The B126-1A1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

System Requirements

• Source device with HDMI output (Blu-ray player, media server, laptop)
• Display device with HDMI input (HDTV, projector, monitor)
• 2 HDMI cables, including Eaton P568-Series
• 24 AWG solid-wire Cat5e/6 cable, including Eaton N202-Series

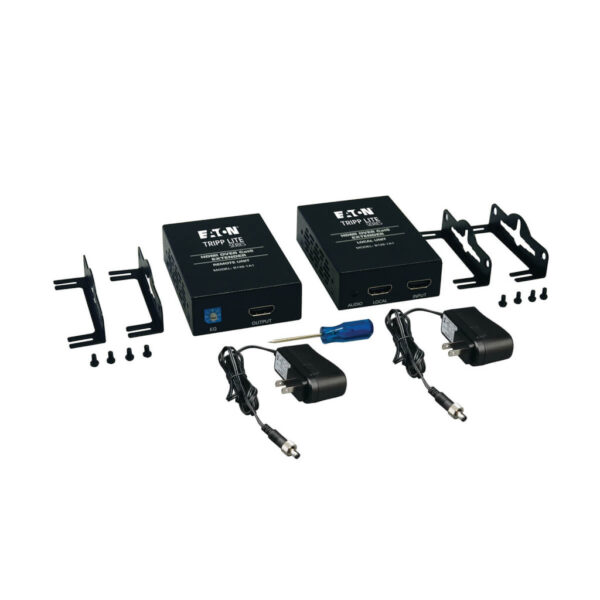

Package Includes

• Transmitter
• Receiver
• (2) External power supplies with 5 ft. (1.5 m) cord and NEMA 1-15P plug (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V 2A)
• Screwdriver for adjusting equalization
• Mounting hardware
• Owner’s manual
