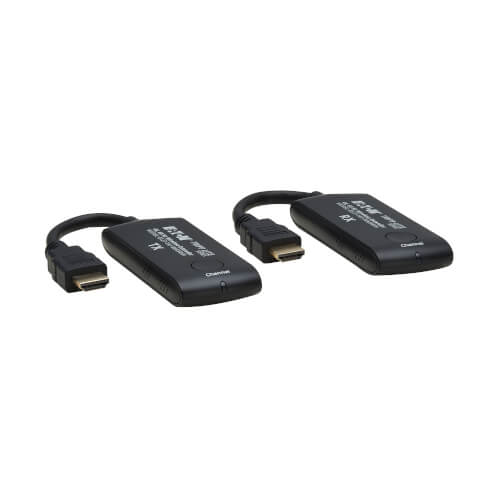

Tripp Lite series HDMI over Wireless Extender Kit, 4K 60 Hz, Wireless HDMI, Switchable Channel, Up to 65 ft. (20 m)
$561.26
Tripp Lite series HDMI over Wireless Extender Kit, 4K 60 Hz, Wireless HDMI, Switchable Channel, Up to 65 ft. (20 m)
Toronto Stock: 3 available
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Displays HDMI audio/video up to 65 ft. away with no costly cable infrastructure
- Supports UHD resolutions up to 4K @ 60 Hz for heightened video quality
- Allows you the freedom of positioning devices without constraint of cable placement
- Low-profile design convenient for travel to lectures, trade shows and meetings for work
- Plug-and-play operation with no software required for easy, immediate installation
Features
HDMI Wireless Extender Ideal for Displaying 4K Video in Classrooms and Conference Rooms
This complete wireless transmitter and receiver system is recommended for video presentations in conference rooms, trade shows, home theaters, digital signage and other applications in which connecting long video cables could be a burden. The B127-1A1-WHD4HH extends 4K video and audio from an HDMI source device to an HDMI display up to 65 feet (20 meters) away. No bulky or costly cabling infrastructure is needed.
Wireless Transmission Saves You Money on Cable and Installation Costs
The B127-1A1-WHD4HH eliminates more than just hassles. You’ll save on the costs of cabling infrastructure and the labor to install it. Cable clutter is reduced, and you will enjoy more flexibility in placement of the source and display with no cables to relocate when you want to reconfigure the room. The transmitter and receiver units communicate over a 5.18–5.24 GHz wireless frequency that allows fast data transmission and reduced interference from other wireless sources. Be sure the transmitter and receiver share a direct line of sight for best results.
Transmits Crystal-Clear 4K Video for Ultra High-Definition Presentations
The B127-1A1-WHD4HH ensures Ultra HD performance in a one-to-one application, where there is less obstruction to occur. It supports 4K video resolutions (3840 x 2160) at 60 Hz. LEDs indicate when the transmitter and receiver units are receiving power, building a wireless connection between the units and transmitting data.
Plug-and-Play Operation for Quick Setup and Immediate Use
The wireless transmitter and receiver set works right out of the box with no software required. Connect the receiver to the display’s HDMI port and the transmitter to the source’s HDMI port. Included USB cables connect the two units to a 5V 1A AC wall chargers (not included).
System Requirements
- Source device with HDMI output (Blu-ray player, external hard drive, laptop)
- Display device with HDMI input (HDTV, projector, monitor)
Package Includes
- HDMI transmitter
- HDMI receiver
- (2) USB-A to USB Micro-B cables (M/M), 3 ft. (0.9 m)
- Owner’s manual
| Weight | 0.7495 lbs |
|---|---|
| Dimensions | 7.835 × 5.866 × 3.15 in |
| UPC Code | 037332286970 |
| Brand | |
| Product Type | Wireless Extender |
| Technology | HDMI; Wireless |
| Video Input | HDMI (MALE) |
| Video Output | HDMI (MALE) |
| Number of Monitors Supported | 1 |
| Video Ports | HDMI (MALE) |
| Max Supported Video Resolution | 3840×2160 @24/30/50/60Hz; (YUV 4:4:4, YUV 4:2:2 and RGB);1080P@50/60Hz; 720P@50/60Hz; 1920×1200@60Hz |
| Max. Distance (Between any 2 Units) | 65 |
| Max 1920 x 1200 Range (ft) | 65 |
| Max 2560 x 1600 Range (ft) | 65 |
| Max 3840 x 2160 (4K) Range (ft) | 65 |
| Max 3840 x 2160 (4K@30Hz) Range (ft) | 65 |
| Max 3840 x 2160 (4K@60Hz) Range (ft) | 65 |
| Transmitter Video Input | HDMI |
| Transmitter - Number of Video Outputs | 1 |
| Receiver/Transceiver Video Output | HDMI |
| Receiver - Number of Video Outputs | 1 |
| Max Supported Color Depth | 36-bit Deep Color |
| HDR Support | No |
| 3D Video Supported | No |
| Chroma Sub Sampling | 4:2:2; 4:4:4 |
| Maximum Signal Range (m) | 20 |
| Audio Input | HDMI |
| Audio Output | HDMI |
| AC Power Adapter Input Specs (V / Hz / A) | Micro USB power supply (5V/1A) |
| Power Source | USB |
| Power Over Cable (PoC) Support | No |
| Power Consumption Detail | TX < 4.5W, RX < 3.5W |
| Side A - Connector 1 | HDMI (MALE) |
| Side A - Connector 2 | HDMI (MALE) |
| Daisy-chainable / Cascadable | No |
| LED Indicators | TX: x3 Blue (Power); RX x3 Blue (Power) |
| Color | Black |
| Material of Construction | ABS |
| Number of Displays | 1 |
| Receiver Unit Dimensions (hwd / in.) | 0.6 x 1.6 x 9 |
| Receiver Unit Weight (lbs.) | 0.12 |
| Shipping Dimensions (hwd / cm) | 8.00 x 14.90 x 19.90 |
| Shipping Weight (kg) | 0.34 |
| Transmitter Unit Dimensions (hwd / in.) | 0.6 x 1.6 x 9 |
| Transmitter Unit Weight (lbs.) | 0.13 |
| Operating Temperature Range | -4° to 122°F (-20° to 50°C) |
| Storage Temperature Range | -22° to 158°F (-30° to 70°C) |
| Relative Humidity | 0-90% non-condensing |
| ESD Protection | 1a Contact discharge level 3; 1b Air discharge level 3; Standard: IEC61000-4-2 |
| Transmission Distance | ≤ 20m |
| IR Remote Extension Support | No |
| RS-232 Serial Extension Support | No |
| Latency | 100~250ms |
| 10/100 Ethernet Extension Support | No |
| Integrated/Removable Cable | No |
| Multi-Resolution Support | No |
| HDCP Specification | 1.4; 2.2 |
| Driver Required | No |
| Product Compliance | CE (Europe); FCC (USA); REACH; RoHS; UKCA; WEEE |
| Product Warranty Period (Worldwide) | 1-year limited warranty |
