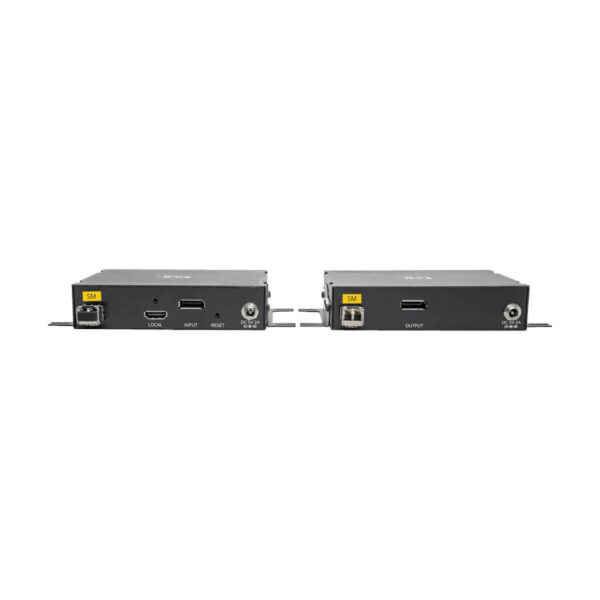

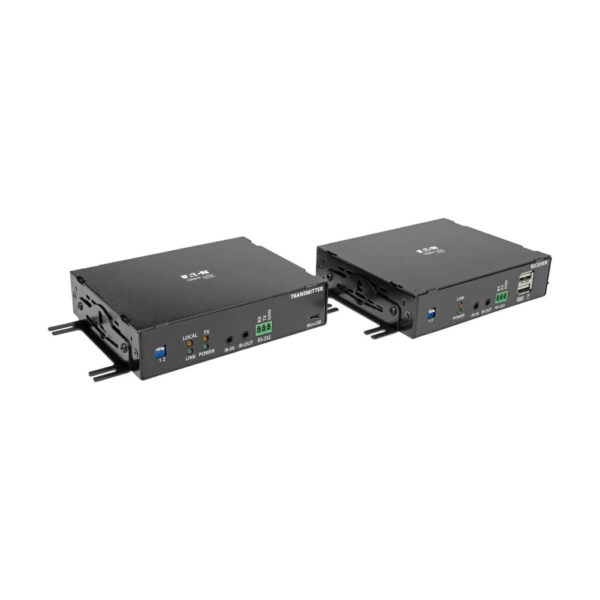

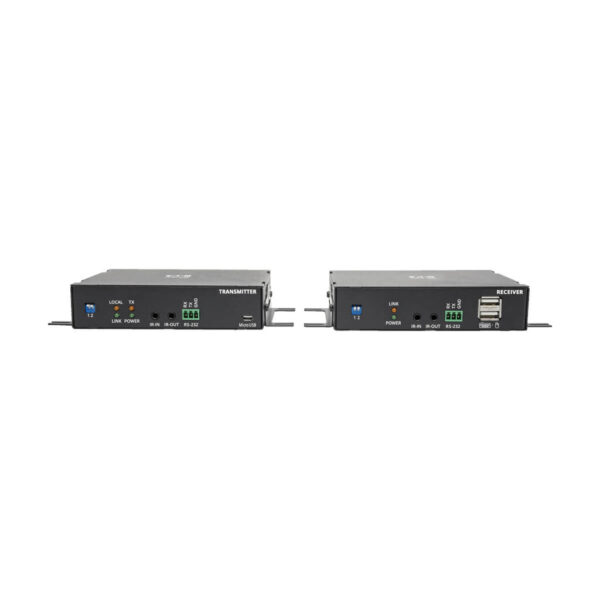

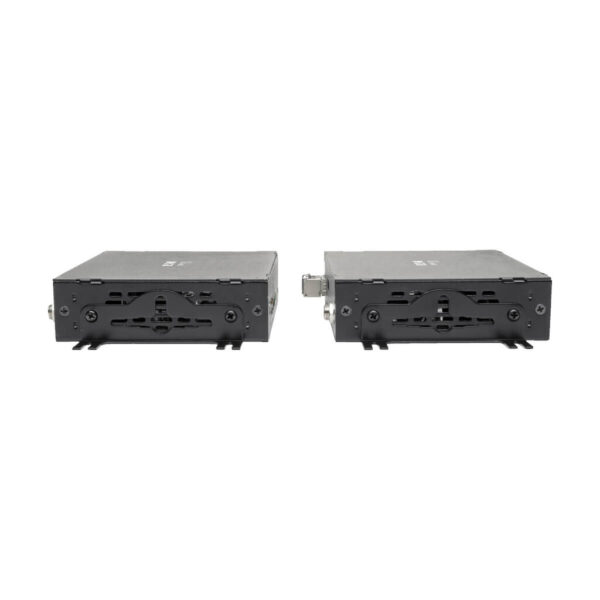

Tripp Lite series DisplayPort over Fiber Extender Kit, Transmitter/Receiver, 4K, 4:4:4, Singlemode LC, Up to 6.2 mi., TAA

Quick Specs

• Achieve 4K resolutions in long-range digital signage applications with no booster needed
• Extend touch screen ability of Interactive Flat Panel Displays
• Supports UHD resolutions up to 4K @ 30 Hz (4:4:4) for crystal-clear video
• Supports uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio
• Local HDMI port allows displays with different resolutions without affecting 4K signal
• Plug-and-play operation with no software required for easy, immediate installation

Features

DisplayPort Extender for Digital Signage or Displaying Video in Schools or Trade Show BoothsThis complete transmitter and receiver system is recommended for video presentations in digital signage applications where the source and display are farther apart than conventional A/V cables allow, such as airports, outdoor arenas and schools. The B127F-1A1-SM-DD extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 6.2 miles (10 kilometers) away via user-supplied duplex singlemode LC fiber cabling.Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 ColorThe B127F-1A1-SM-DD supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160) at 30 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. This extender kit is compatible with HDCP 2.2, DisplayPort 1.2a and EDID standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.DIP Switches Extend Your Choice of USB, IR or RS-232 SignalsThe DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time.Plug-and-Play Operation for Quick Setup and Immediate UseThe included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as P580-Series). Then, connect the two units using a duplex singlemode LC fiber cable (N320-Series). Connect an optional display to the transmitter’s local HDMI output to monitor the image connected to the receiver up to 6.2 miles away. The local port lets you connect displays with different resolutions without affecting the 4K signal transmission.TAA-Compliant for GSA Schedule PurchasesThe B127F-1A1-SM-DD is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

System Requirements

• Source device with DisplayPort output (media server, laptop)
• Display device with DisplayPort input (HDTV, projector, monitor)

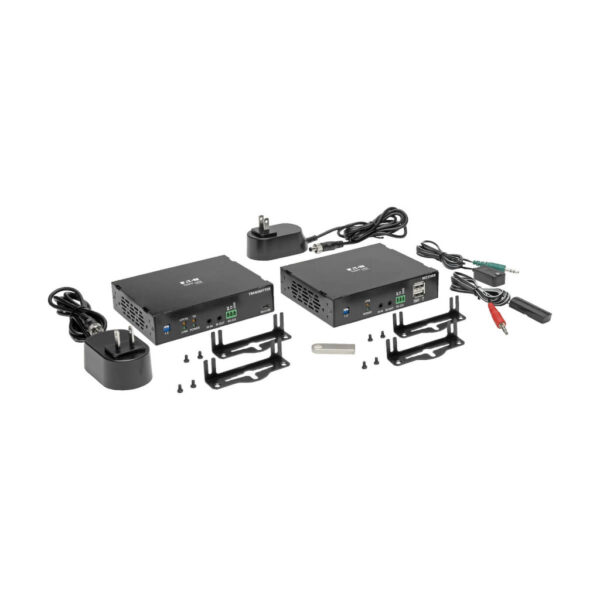

Package Includes

• Transmitter unit
• Receiver unit
• (2) External power supplies with 4.5 ft. cord (Input: 100–240V, 50/60 Hz, 0.35A; Output: 5V 2A)
• (8) International plug adapters (North America, Europe, Australia, United Kingdom)
• (2) Sets of mounting hardware
• Owner’s manual
