Tripp Lite series VGA over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 1000 ft. (305 m), TAA

$166.28

Brand: Tripp Lite
Part Number (MPN): B130-101-2
UPC / GTIN: 037332178367
Datasheet: PDF

Tripp Lite series VGA over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 1000 ft. (305 m), TAA

Toronto Stock: 2 available
Manufacturer Warehouse: 56 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Extends a 1920 x 1440 (60 Hz) video signal up to 500 ft., or a 1024 x 768 (60 Hz) video signal up to 1,000 ft., when using 24 AWG, Solid Wire Cat5e/6 cable, such as N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
  • Can further expand the range and number of monitors by adding B132-110A (Video Only) repeaters
  • EDID copy feature ensures optimal display compatibility
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as P524-01K
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

  • Extends a 1920 x 1440 (60 Hz) video signal up to 500 ft., or a 1024 x 768 (60 Hz) video signal up to 1,000 ft., when using 24 AWG Solid Wire Cat5e/6 cable, such as N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
  • EDID copy feature ensures optimal display compatibility
  • Can further expand the range and number of monitors by adding B132-110A (Video Only) repeaters
  • Connect up to 3 repeaters, with the B130-101-2 receiver at the end of the chain, for a total of 4 monitors.
  • A 1920 x 1440 (60 Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60 Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as P524-01K
  • The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image
  • Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rack-mounted or pole mounted
  • Ideal for digital signage situations, such as retail, schools, churches, etc.
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

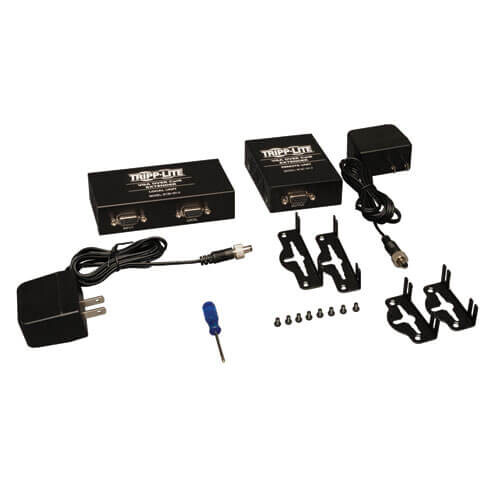

Package Includes

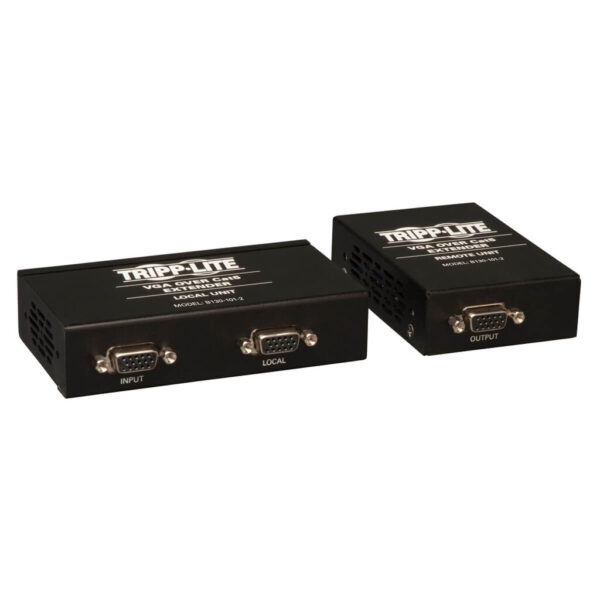

  • Local (Transmitter) unit 1 x 4.5 x 2.5 (in.)
  • Remote (Receiver) unit 1 x 2.5 x 3.5 (in.)
  • Mini-Screwdriver for EQ/Gain adjustment
  • (x2) Mounting Hardware Kits
  • (x2) External Power Supplies with NEMA 1-15P Plug(Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A, 5 ft.)
  • Owner’s Manual
Weight 1.8 lbs
Dimensions 6.5 × 8.4 × 2.2 in
UPC Code

037332178367
Cord Length

4.53
Number of Ports

1
Brand

Product Type

Extender Kit
Technology

VGA/SVGA; Cat5/5e; Cat6
Max Supported Video Resolution

1920 x 1440 @ 60Hz
Max 720P Range (ft)

500
Max 1080P Range (ft)

500
Max 1280 x 720 (720p) Range (ft)

500
Max 1920 x 1080 (1080p) Range (ft)

500
Max 1920 x 1200 Range (ft)

500
Transmitter Video Input

VGA
Transmitter - Number of Video Outputs

1
Transmitter - Local Display Output

VGA
Receiver/Transceiver Video Output

VGA
Receiver - Number of Video Outputs

1
Range Extension using other Tripp Lite product

1000 ft. @ 1024 x 768 (60Hz) 500 ft. @ 1920 x 1440 (60Hz)
Recommended Cabling

Solid Wire Cat6 Cables (Tripp Lite's N202-Series)
Other Tripp Lite product used to extend range

B132-110A
HDR Support

No
3D Video Supported

No
Maximum Signal Range (m)

305
Maximum Signal Range Details

1000 ft @ 1024 x 768 (60Hz)500 ft @ 1920 x 1440 (60Hz)
AC Power Adapter Plug(s)

NEMA 1-15P North America
AC Power Adapter Input Specs (V / Hz / A)

100-240V / 50/60Hz / 0.5A
AC Power Adapter Output Specs (V / A)

5V / 2A
AC Power Adapter Cord Length (ft.)

4.5
AC Power Adapter Cord Length (m)

1.38
Power Source Type

AC Adapter
AC Plug Type

NEMA 1-15P
Power Source

Transmitter and Receiver (Included)
Power Over Cable (PoC) Support

No
AC Adapter

Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
DC Barrel Plug

OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve

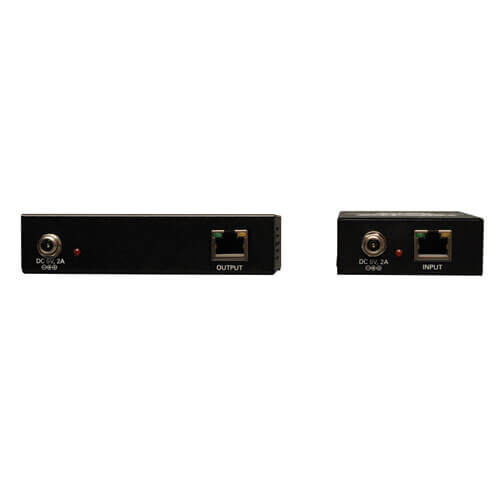

Side A - Connector 1

(2) HD15 (FEMALE)
Side A - Connector 2

RJ45 (FEMALE)
Side B - Connector 1

HD15 (FEMALE)
Side B - Connector 2

RJ45 (FEMALE)
Daisy-chainable / Cascadable

No
LED Indicators

TX & RX: Red (Power); RJ45: Green (Connection), Orange (Data Transmission)
Color

Black
Number of Displays

1
Optional Mounting Accessory Notes

Can DIN Mount using Tripp Lite Bracket B110-DIN-01 and B110-DIN-02
Form Factor/Mounting Options

Box; Wall-mount
Receiver Unit Dimensions (hwd / in.)

2.53 x 3.61 x 1.01
Receiver Unit Weight (lbs.)

0.4
Shipping Dimensions (hwd / cm)

5.59 x 21.34 x 16.51
Shipping Weight (kg)

0.82
Transmitter Unit Dimensions (hwd / in.)

4.53 x 1.06 x 2.46
Transmitter Unit Weight (lbs.)

0.5
Unit Packaging Type

Box
Housing

Metal
Mounting Details

Wallmount
Operating Temperature Range

32° to 104°F (0° to 40°C)
Storage Temperature Range

-4° to 140°F (-20° to 60°C)
Relative Humidity

10% to 90% RH, Non-Condensing
Max 1024 x 768 Range (ft)

1000
Max 480P Range (ft)

1000
Max 1440 x 900 Range (ft)

500
Max 1080i Range (ft)

500
Max 1920 x 1440 Range (ft)

500
Max 480i Range (ft)

1000
Max 640 x 480 Range (ft)

1000
Max 800 x 600 Range (ft)

1000
Max 1600 x 1200 Range (ft)

500
EDID Compatible

Yes
IR Remote Extension Support

No
RS-232 Serial Extension Support

No
10/100 Ethernet Extension Support

No
Built-In Equalizer

Yes
Driver Required

No
External Power Supply Certifications

FCC; PSE; TUV; UL; cUL
Product Compliance

RoHS; REACH; FCC (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)

1-year limited warranty
