Tripp Lite series VGA over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, Up to 1000 ft. (305 m), TAA

Quick Specs

• Extends a 1920 x 1440 (60 Hz) video and audio signal up to 500 ft., or a 1024 x 768 (60 Hz) video and audio signal up to 1,000 ft., when using 24 AWG, Solid Wire Cat5e/6 cable, such as N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
• EDID copy feature ensures optimal display compatibility
• Can further expand the range and number of monitors/speakers by adding B132-110A repeaters
• For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as P524-01K
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

• Extends a 1920 x 1440 (60 Hz) video and audio signal up to 500 ft., or a 1024 x 768 (60 Hz) video and audio signal up to 1,000 ft., when using 24 AWG Solid Wire Cat5e/6 cable, such as N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
• EDID copy feature ensures optimal display compatibility
• The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units
• Connect up to 3 repeaters, with the B130-101A-2 receiver at the end of the chain, for a total of 4 sets of monitors and speakers
• A 1920 x 1440 (60 Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60 Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
• For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as P524-01K
• The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image
• Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rack-mounted or pole mounted
• Ideal for digital signage situations, such as retail, schools, churches, etc.
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

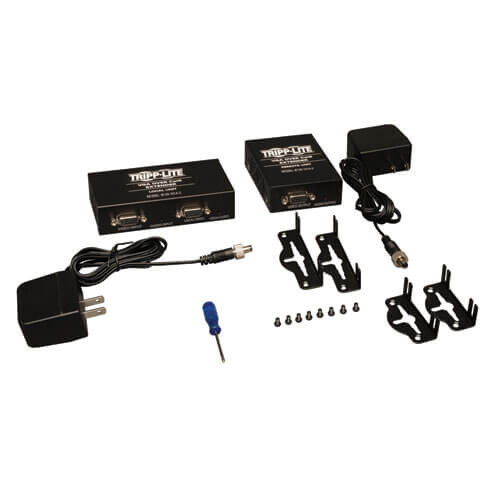

Package Includes

• Local (Transmitter) unit 1 x 4.5 x 2.5 (in.)
• Remote (Receiver) unit 1 x 2.5 x 3.5 (in.)
• Mini-Screwdriver for EQ/Gain adjustment
• (x2) Mounting Hardware Kits
• (x2) External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
• Owner’s Manual
