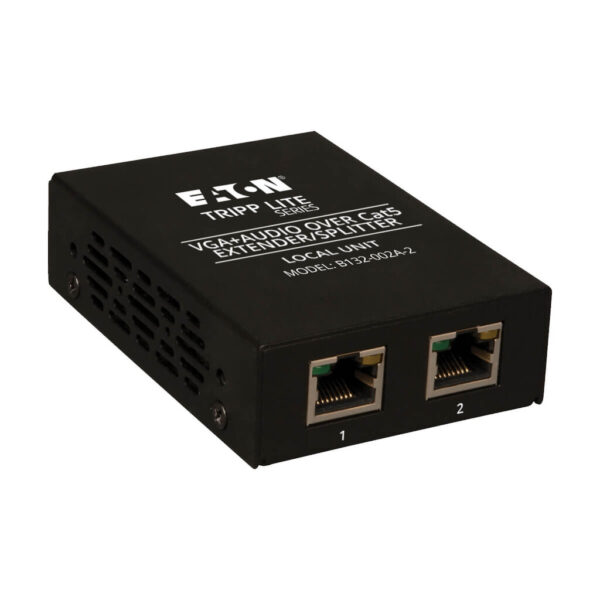

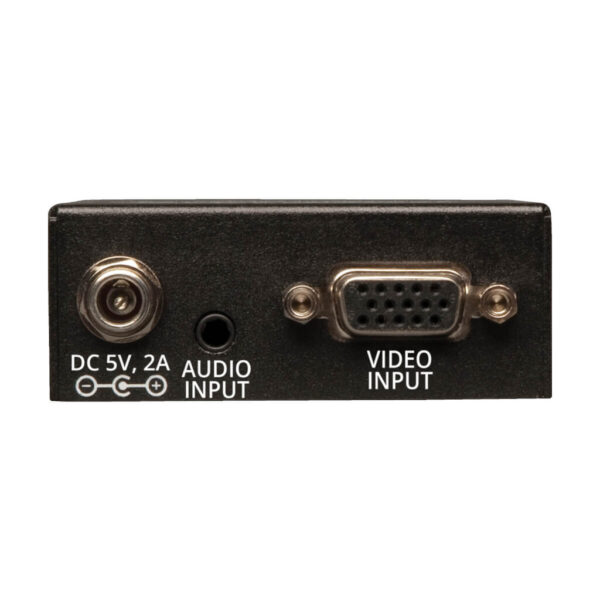

Tripp Lite series 2-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA

Quick Specs

• Splits a single VGA Video and Audio signal into 2
• EDID copy feature ensures optimal display compatibility
• Extends a 1920 x 1440 (60 Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60 Hz) Video and Audio signal up to 1,000 ft., when using 24 AWG, Solid Wire Cat5e/6 cable, such as N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
• For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as P524-01K
• Can further expand the range and number of monitors/speakers by adding B132-110A repeaters
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

• Splits a single VGA Video and Audio signal into 2
• A B132-100A or B132-100A-WP-1 remote receiver unit is required for each connected monitor
• Extends a 1920 x 1440 (60 Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60 Hz) Video and Audio signal up to 1,000 ft., when using 24 AWG Solid Wire Cat5e/6 cable, such as N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
• Support for video resolutions up to 1920 x 1440 (60 Hz)
• EDID copy feature ensures optimal display compatibility
• Can further expand the range and number of monitors/speakers by adding B132-110A repeaters
• Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a set of monitor and speakers at each location
• A 1920 x 1440 (60 Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60 Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
• For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as P524-01K
• Includes mounting hardware that allows unit to be wall mounted, rack mounted or pole mounted.
• Ideal for digital signage situations, such as retail, schools, churches, etc.
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

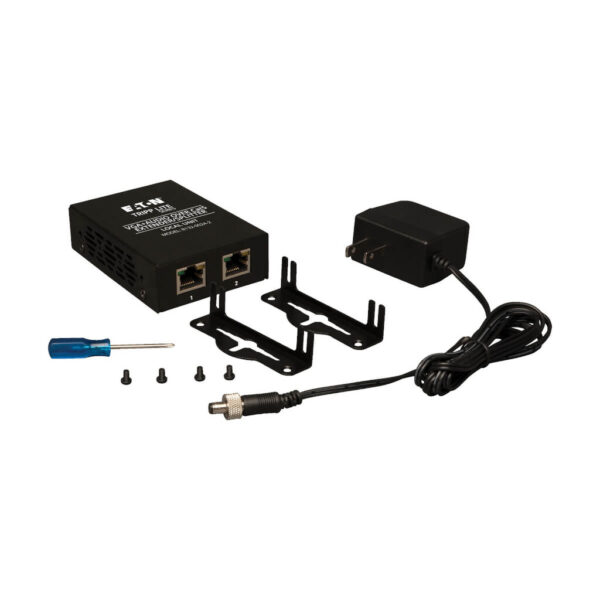

Package Includes

• 2 Port Extender/Splitter local (Transmitter) unit
• Mounting hardware
• External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.)
• Owner’s Manual
