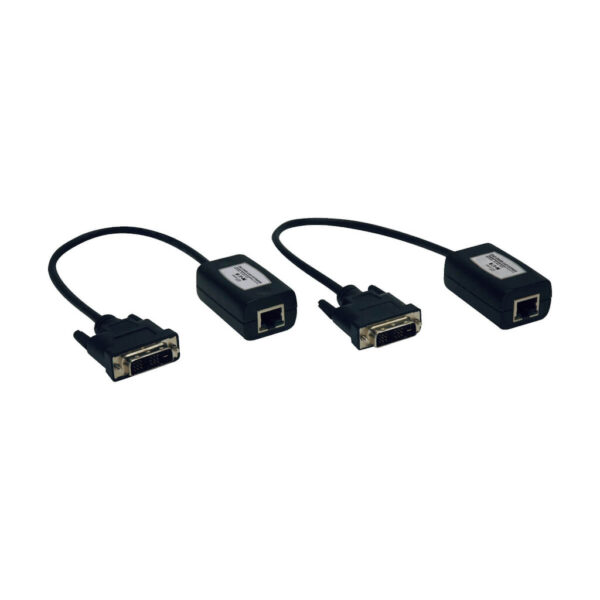

Tripp Lite series DVI over Cat5/6 Passive Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 100 ft. (30 m), TAA

Quick Specs

• Extender kit comes with transmitter and receiver units
• Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60 Hz
• Extends a 1920 x 1080 @ 60 Hz signal up to 50 ft. (15.24 m), or a 1024 x 768 @ 60 Hz signal up to 100 ft. (30.5 m)
• Use 24 AWG, Solid Wire Cat5e/6 cable, such as N202-Series, to achieve maximum distance and resolution
• Compatible with all operating systems
• Plug and play, no external power, software or drivers required
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Overview

The B140-101 is a DVI over Cat5 Passive Extender kit, which comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 100 feet (30.5 meters) away using a single Cat5e/6 Ethernet cable. To achieve maximum distance and resolution, use 24 AWG Solid Wire Cat5e/6 cable (N202-Series). The B140-101 is compatible with all operating systems and is plug and play with no external power, software or drivers required.Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect the built-in DVI connector on the transmitter unit to the source. Connect the built-in DVI connector on the receiver unit to a display. Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 at 60 Hz signal can be extended up to 50 feet (15.2 meters) from the source or a 1024 x 768 at 60 Hz signal up to 100 feet.

Features

• Extender kit comes with transmitter and receiver units
• Transmit a DVI-D Single-Link signal up to 100-ft. (30.5 m) away using a single Cat5e/6 patch cable
• Supports DVI-D Single-Link video resolutions up to 1920 x 1080 at 60 Hz
• Extends a 1920 x 1080 at 60 Hz signal up to 50-ft. (15.2 m), or a 1024 x 768 at 60 Hz signal up to 100-ft. (30.5 m)
• Use 24 AWG Solid Wire Cat5e/6 cable, such as N202-Series, to achieve maximum distance and resolution
• HDCP compatible
• Compatible with all operating systems
• Plug and play; no external power, software or drivers required
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes

• B140-101 local transmitter unit
• B140-101 remote receiver unit
• Owner’s manual
