Tripp Lite series DVI over Cat5/6 Active Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 200 ft. (60 m), TAA

Quick Specs

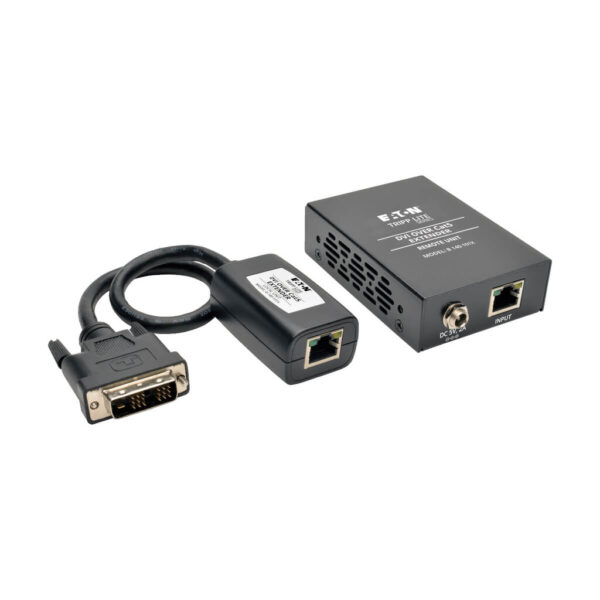

• Extender kit comes with transmitter and receiver units
• Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60 Hz
• Extends a 1920 x 1080 @ 60 Hz signal up to 150 ft. (45.72 m), or a 1024 x 768 @ 60 Hz signal up to 200 ft. (61 m)
• Use 24 AWG, Solid Wire Cat5e/6 cable, such as N202-Series, to achieve maximum distance and resolution
• Can further expand the range and number of monitors by adding B140-110 repeaters
• Compatible with all operating systems
• Plug and play, no software or drivers required
• Features a built-in Equalization control for adjustment of the video image
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Overview

The B140-101X is a DVI over Cat5 Active Extender Kit that comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 200 feet (61 meters) away using a single Cat5e/6 Ethernet cable. To achieve maximum distance and resolution, use 24 AWG Solid Wire Cat5e/6 cable (N202-Series). The B140-101X is compatible with all operating systems and is plug and play with no software or drivers required. It features a built-in equalization control for adjustment of the video image. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect a the built-in DVI connector on the transmitter unit to a DVI source. Connect the receiver unit to a display using a P561-Series DVI cable (not included). Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 at 60 Hz signal can be extended up to 150 feet (45.7 meters) from the source or a 1024 x 768 at 60 Hz signal up to 200 feet.

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of four displays (an active receiver should be the last unit in a chain). A 1920 x 1080 at 60 Hz signal can be extended up to 125 feet (38.1 meters) from each repeater to the next unit in the chain or a 1024 x 768 at 60 Hz signal can be extended up to 175 feet (53.3 meters).

Features

• Extender kit comes with transmitter and receiver units
• Transmit a DVI-D Single-Link signal up to 200-ft. (61 m) away using a single Cat5e/6 patch cable
• Supports DVI-D Single-Link video resolutions up to 1920 x 1080 at 60 Hz
• Extends a 1920 x 1080 at 60 Hz signal up to 150-ft. (45.7 m), or a 1024 x 768 at 60 Hz signal up to 200-ft. (61 m)
• Use 24 AWG Solid Wire Cat5e/6 cable, such as N202-Series, to achieve maximum distance and resolution
• Features a built-in Equalization control for adjustment of the video image
• Further expand the range and number of monitors by using a B140-110 repeater unit
• Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a channel)
• A 1920 x 1080 at 60 Hz signal can be extended up to 125-ft. (38.1 m) from each repeater to the next unit in the chain, or a 1024 x 768 at 60 Hz signal can be extended up to 175-ft. (53.3 m)
• HDCP compatible
• Compatible with all operating systems
• Plug and play; no software or drivers required
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

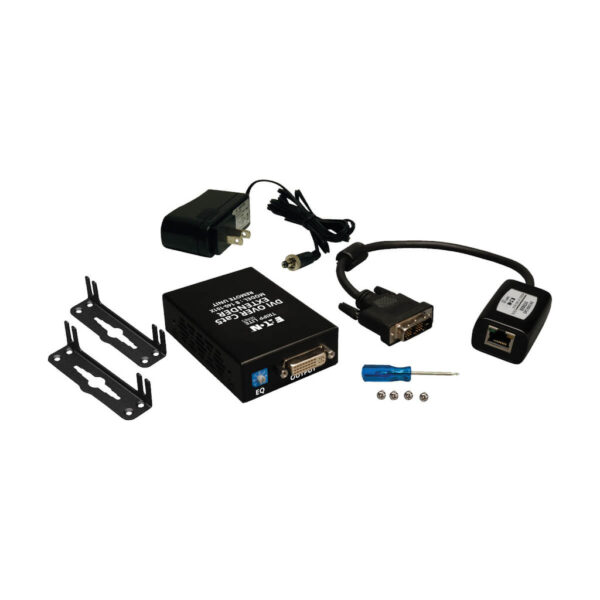

Package Includes

• B140-101X local transmitter unit

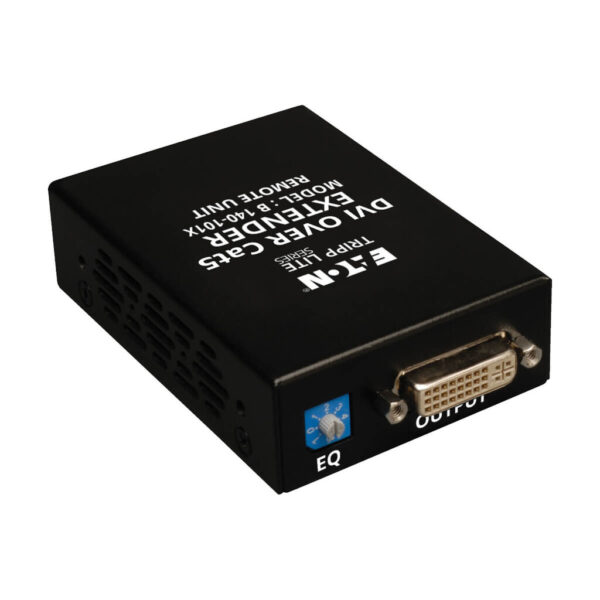

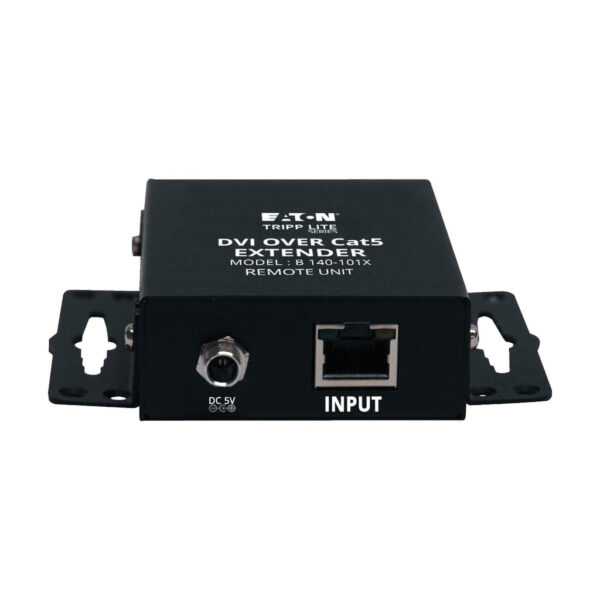

• B140-101X remote receiver unit
• Screwdriver (used for Equalization control)
• Mounting hardware for receiver unit
• External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5-ft. (1.52 m)
• Owner’s manual
