Tripp Lite series DisplayPort to HDMI over Cat5/6 Active Extender Kit, Pigtail Transmitter/Receiver for Video/Audio, 150 ft. (45 m), TAA

Quick Specs

• Extends 1080i signal up to 150-ft. (45.72 m), 1080p signal up to 125-ft. (38.1 m)
• Supports 24-bit True Color (8 bits per channel) and stereo audio
• Included USB Micro-B cables supply power to both units
• Works with all operating systems
• Plug and play—no software or drivers to install
• HDCP 1.3 compliant
• Built-in HDMI cable latches tightly for more secure connection

Overview

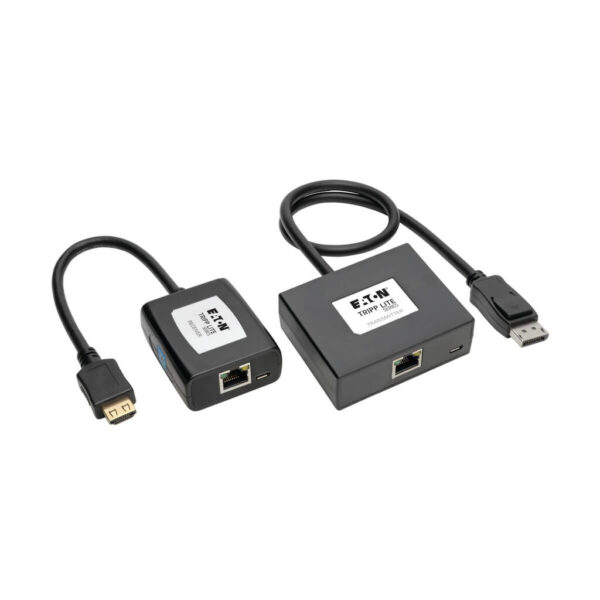

The B150-1A1-HDMI DisplayPort to HDMI over Cat5/Cat6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to convert a DisplayPort audio/video signal to HDMI and then extend it to a projector, monitor or television up to 150 feet (45.7 meters) away. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than convention cables allow.

One Cat5e/6 cable connects the transmitter and receiver (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as the N202-Series). A built-in DisplayPort cable connects the transmitter to the source, while a built-in HDMI cable connects the receiver to the display. The built-in HDMI cable features a latching connector that helps prevent accidental disconnection. Included USB Micro-B cables connect the transmitter to a USB port on the DisplayPort computer or a USB wall charger (such as U280-002-W12), and connect the receiver to a USB port on the HDMI display or a USB wall charger. No external power supplies are needed.

The B150-1A1-HDMI can extend a high-definition 1080i (60 Hz) signal up to 150 feetand a 1080p (60 Hz) signal up to 125 feet (38.1 meters). In addition to crystal-clear video, including 24-bit True Color (8 bits per channel), the kit delivers full, rich stereo. Green and orange LEDs on both units indicate when they are receiving power from the USB Micro-B cables and sharing a signal. Easy to set up with no software or drivers to install. Works with all operating systems.

Features

Converts DisplayPort Signal to HDMI, Extends It Up to 150-ft. (45.7 m)

• Ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than convention cables allow
• Extends a high-definition 1080i (60 Hz) signal up to 150-ft. (45.7 m) and a 1080p (60 Hz) signal up to 125-ft. (38.1 m)
• Transmitter and receiver connect with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as N202-Series)
• Supports 24-bit True Color (8 bits per channel) and stereo audio
• HDCP 1.3 compliant
• Built-in HDMI cable with latching connector helps prevent accidental disconnection

Easy to Set Up and Use

• Plug-and-play engineering—no software or drivers to download and install
• Works with all operating systems

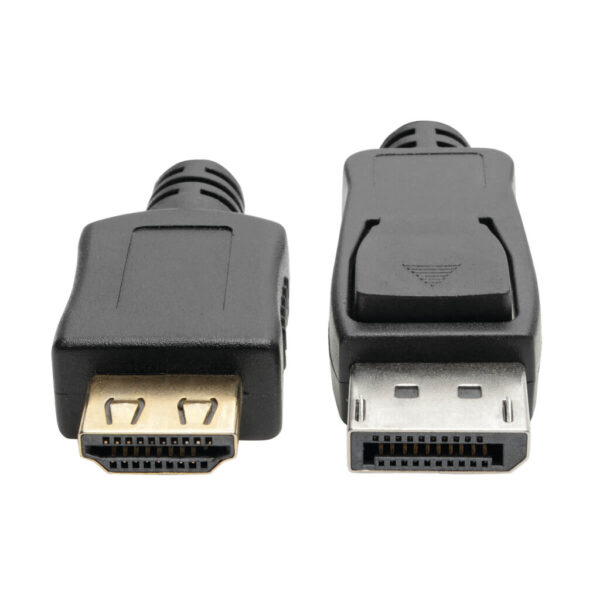

• Built-in cables connect transmitter to DisplayPort source and receiver to HDMI display
• Included USB Micro-B cables supply external power to the units

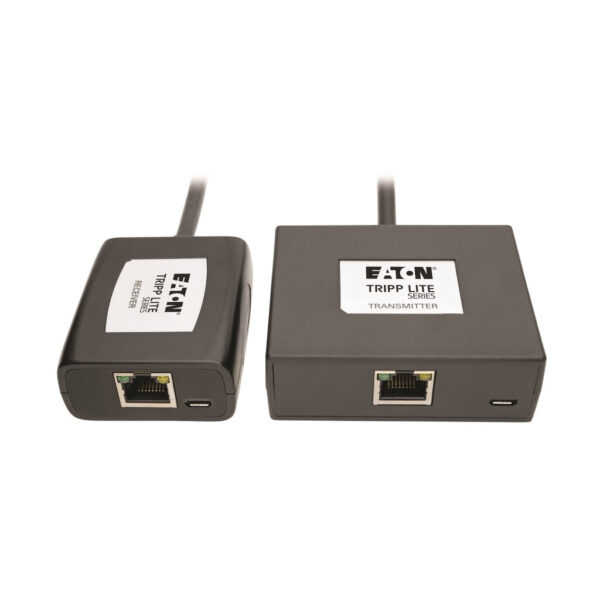

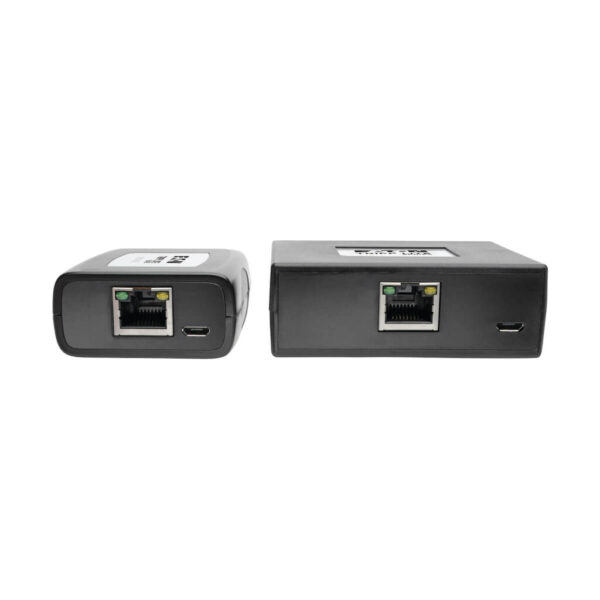

• LEDs indicate when the units are receiving power and sharing a signal

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

• Computer with DisplayPort output port*
• Display with HDMI input port

* DisplayPort source must be enabled to support audio in order for kit to extend audio signals

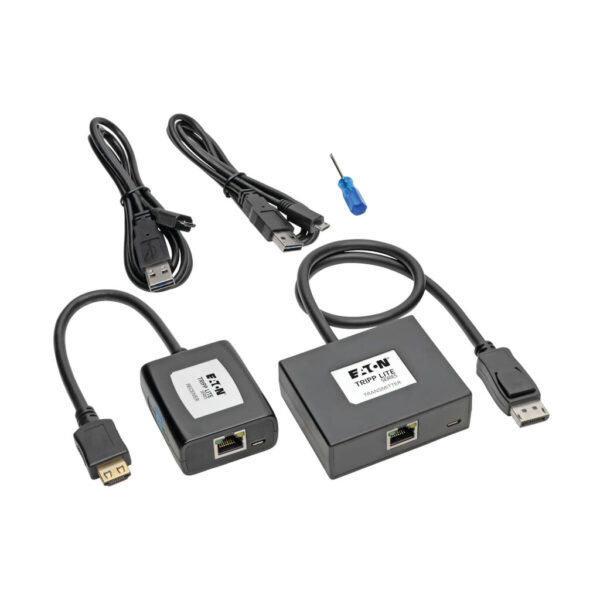

Package Includes

• Transmitter unit
• Receiver unit
• (2) USB Micro-B cables, 3-ft. (0.91 m)
• Owner’s Manual
