Tripp Lite series Serial over Cat5/Cat6 RS232 Extender, Transmitter and Receiver, Up to 3280 ft. (999.74 m), TAA – B165-101

Quick Specs

• Locates an RS-232 Serial device up to 3280-ft. (999.74 m) from your system
• Supports full-duplex, 3 pin, data communication (signal ground, transmit data line, and receive data line)
• No software or drivers required…Plug-n-Play
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Overview

The B165-101 RS-232 Serial over Cat5 Extender Kit is a low-cost solution that provides remote access and control of any RS-232 protocol device. The B165-101 extends control of a serial device to over 3,280 feet (1000 meters). Supports full-duplex, 3-pin, data communication (signal ground, transmit data line, and receive data line). Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

• Locates an RS-232 Serial device up to 1,000 Meters from your system
• Supports full-duplex, 3 pin, data communication (signal ground, transmit data line, and receive data line)
• No software or drivers required…Plug-n-Play
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• Supported Baud Rates: 110, 1200, 9600, 19200, 38400, 57600, 115200 (max)

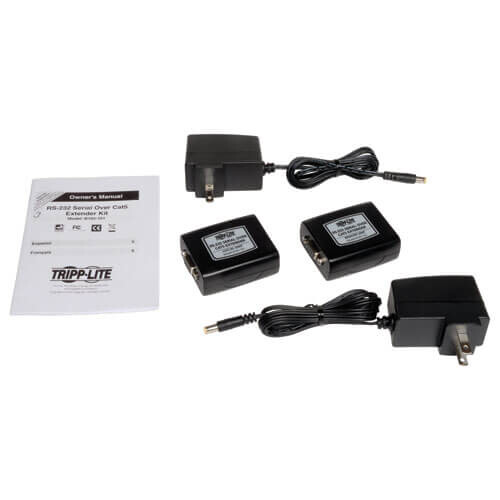

Package Includes

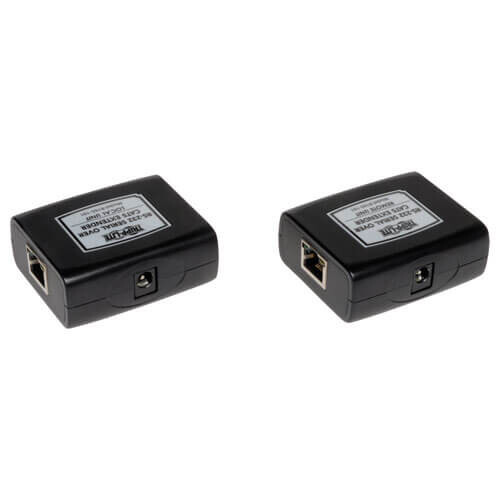

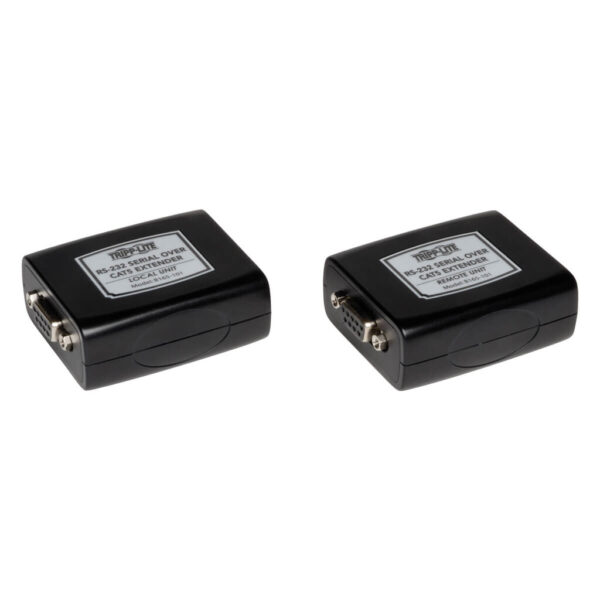

• B165-101 Local Transmitter Unit
• B165-101 Remote Receiver Unit
• 2 External Power Supplies with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)
• Owner’s Manual
